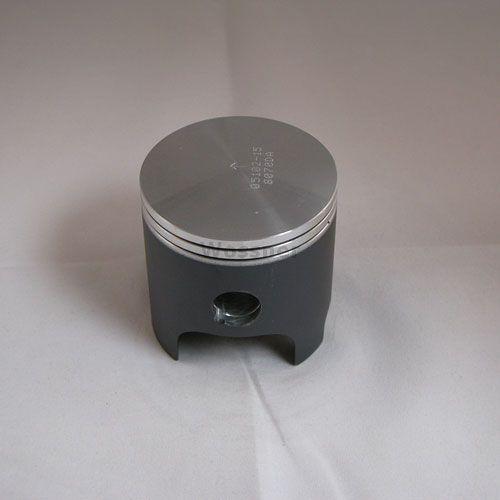

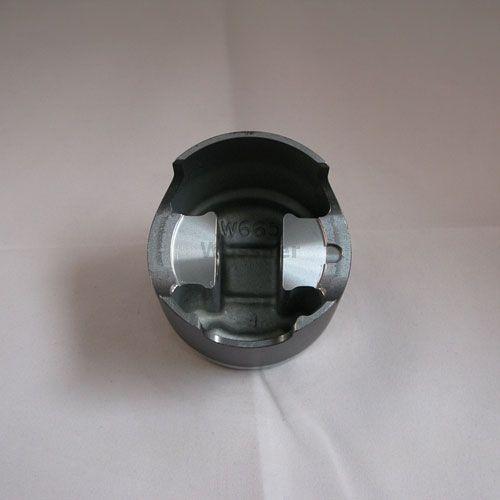

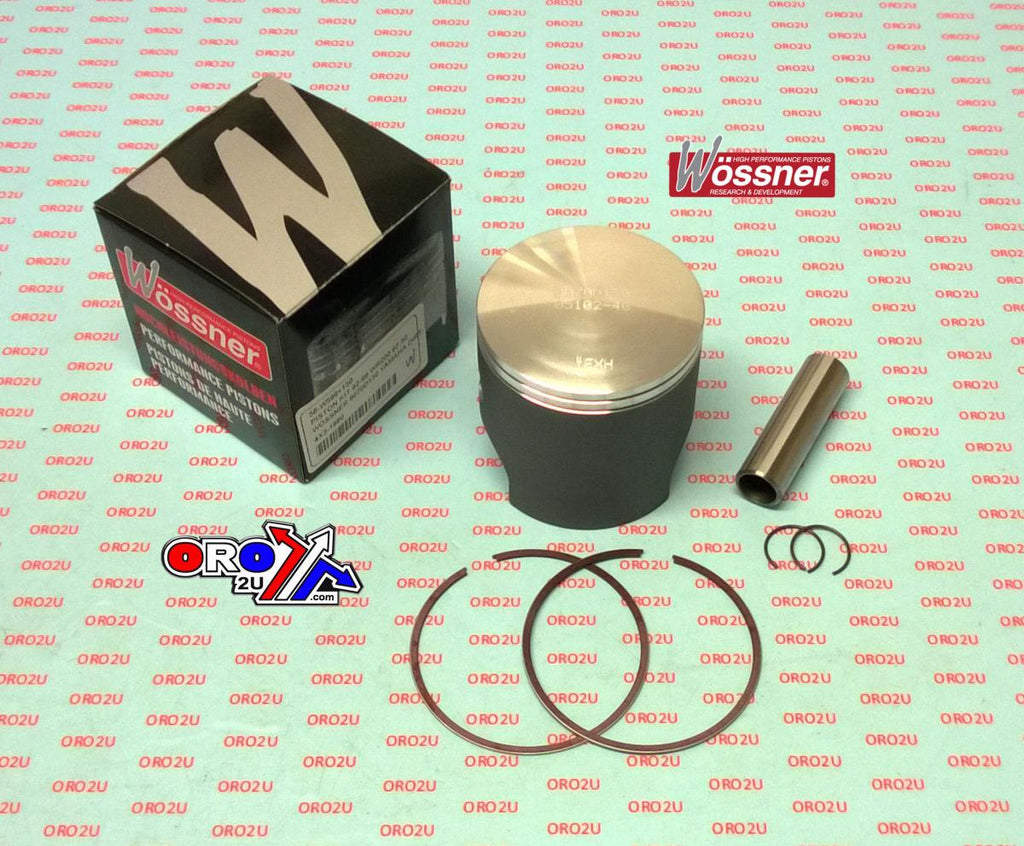

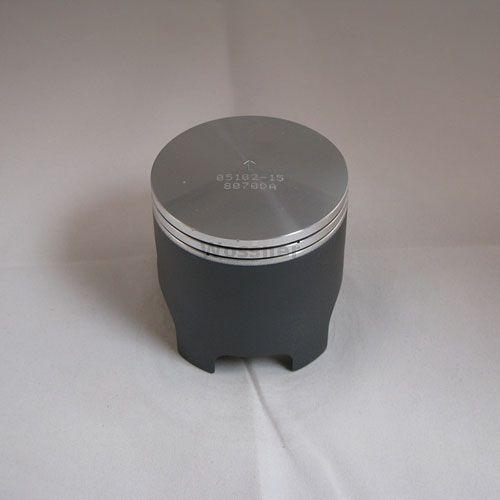

Wossner Forged Piston Kit 73.00mm Bore – Yamaha DT200R / WR200
This Wossner forged piston kit is made for Yamaha DT200R (1988–1991) and WR200 (1992–1998) models, with a bore size of 73.00 mm and a piston diameter of 72.94 mm (+7.00 mm oversize). Designed for extreme oversize applications in 2-stroke engines, this forged piston offers robust structural integrity and optimised thermal dynamics. The elliptical design ensures even thrust load distribution, helping to prevent piston collapse during high-temperature operation. Precision-made in Germany.

Features

• Forged piston construction for maximum durability

• High-efficiency heat transfer from combustion chamber to cylinder walls

• Elliptical shape for uniform bearing surface and reduced localised pressure

• German engineering for consistent quality and precision

Specifications

• Bore Size: 73.00 mm

• Piston Diameter: 72.94 mm

• Engine Displacement: 195 cm³

• Stroke: 57.00 mm

• Clearance: 0.06 mm

• Compression Height: 29.90 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8070D300

• Lock: CW16

• Pin: WP027

• Ring Set: RSB7300 x 2

Vehicle Fitments

• Yamaha DT200R (1988–1991)

• Yamaha WR200 (1992–1998)
