PISTON KIT 92-94 RS125 GP 54.0, FORGED WOSSNER 8162DB

PISTON KIT 92-94 RS125 GP 54.0, FORGED WOSSNER 8162DB

£111.24 GBP
Taxes included.

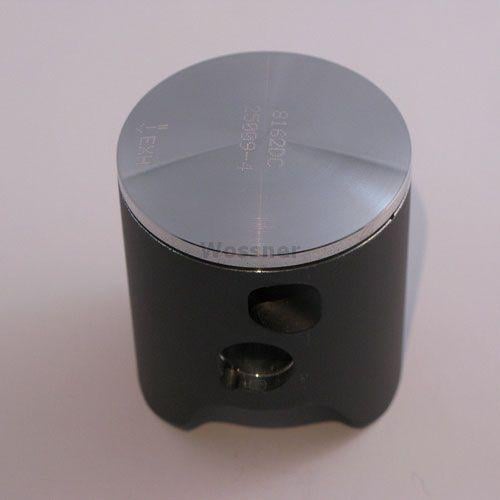

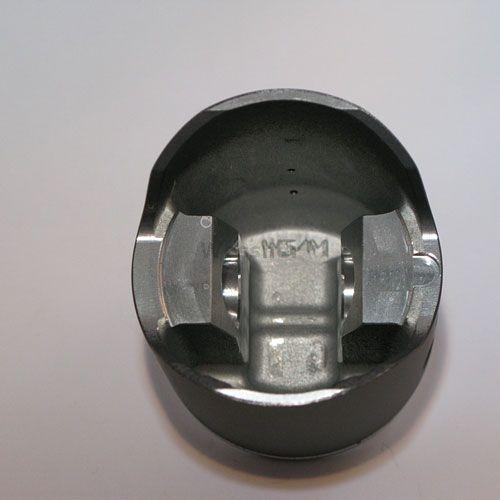

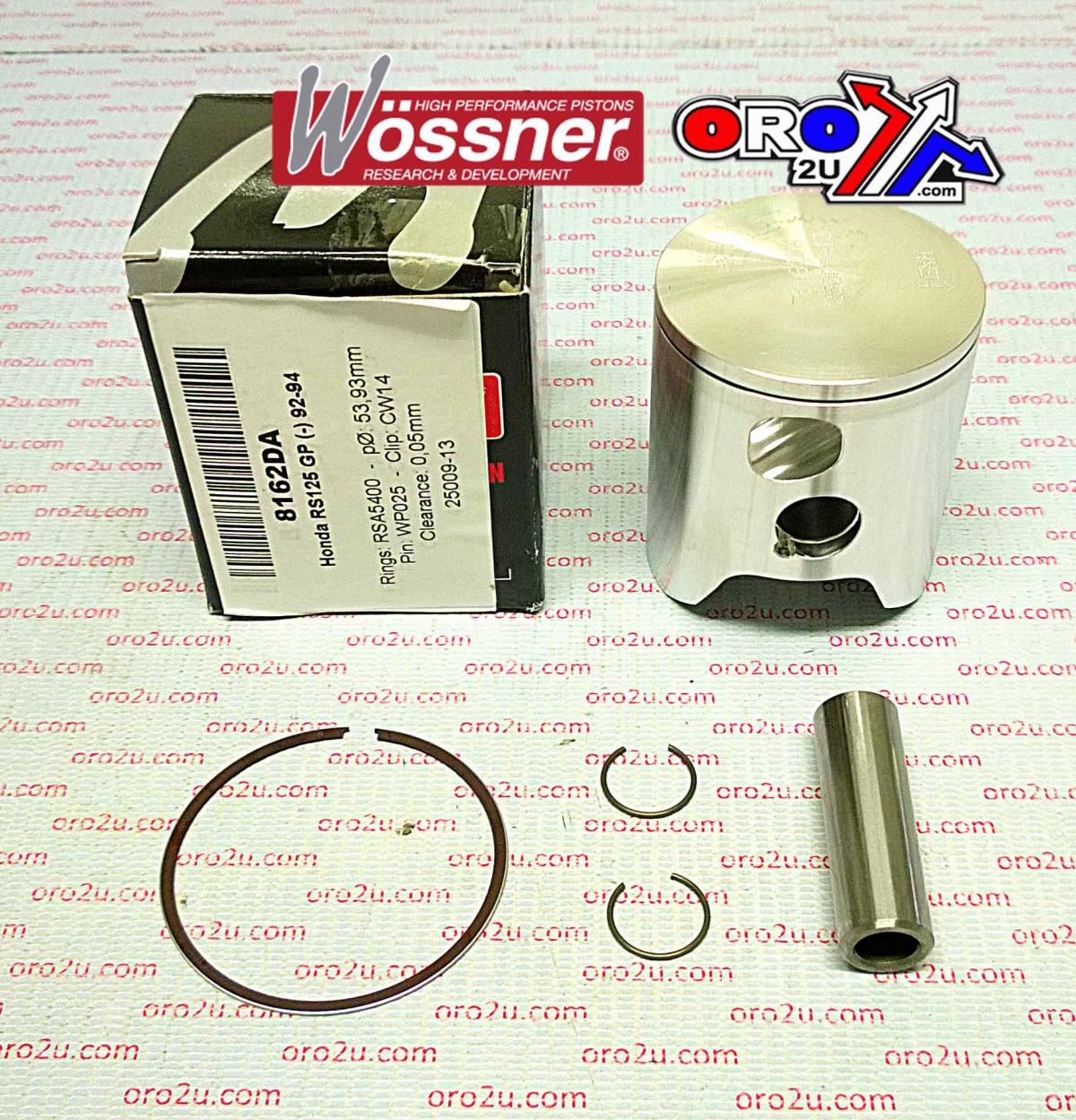

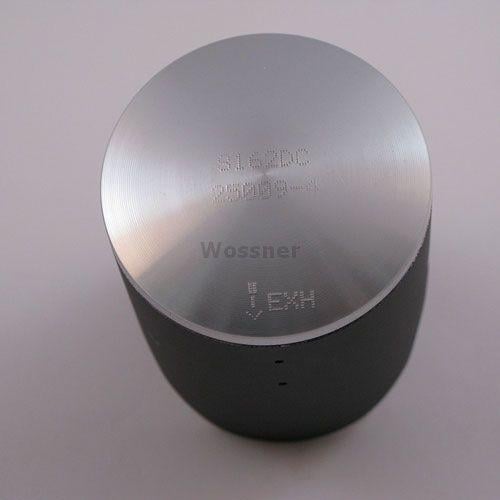

This Wossner forged piston kit with a 54.01mm nominal bore (actual 53.94mm) is a +0.01mm oversize replacement designed for the Honda RS125 GP models from 1992 to 1994. It delivers increased durability and optimised heat distribution under the high demands of two-stroke racing conditions.

Features

  • Forged construction enhances strength and fatigue resistance

  • Engineered for efficient heat dissipation to the cylinder walls

  • Elliptical profile reduces localised stress and distributes thrust loads evenly

  • Precision-manufactured in Germany

Specifications

  • Bore Size: 54.01mm (actual 53.94mm)

  • Stroke: 54.50 mm

  • Clearance: 0.07 mm

  • Wossner Compression Ratio: 2 stroke

  • OEM Compression Ratio: 2 stroke

  • Compression Height: 30.00 mm

  • Lock Part Number: CW15

  • Pin Part Number: WP025

  • Ring Set Part Number: RSA5400

Vehicle Fitments

  • Honda RS125 GP 1992

  • Honda RS125 GP 1993

  • Honda RS125 GP 1994
