PISTON KIT 92-94 RS125 GP 54.0, FORGED WOSSNER 8162DA

PISTON KIT 92-94 RS125 GP 54.0, FORGED WOSSNER 8162DA

£141.24 GBP
Taxes included. Shipping calculated at checkout.

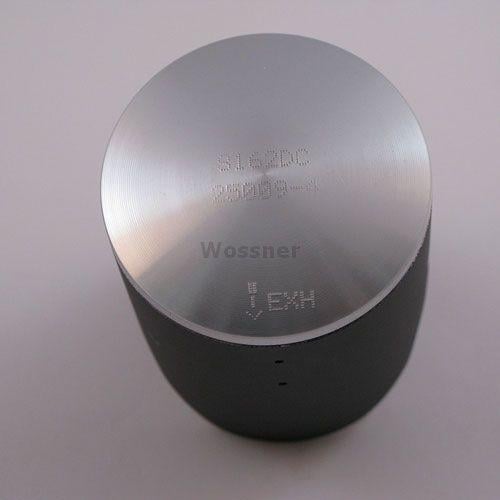

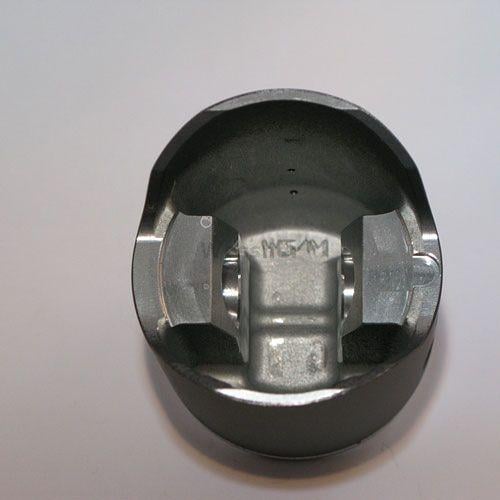

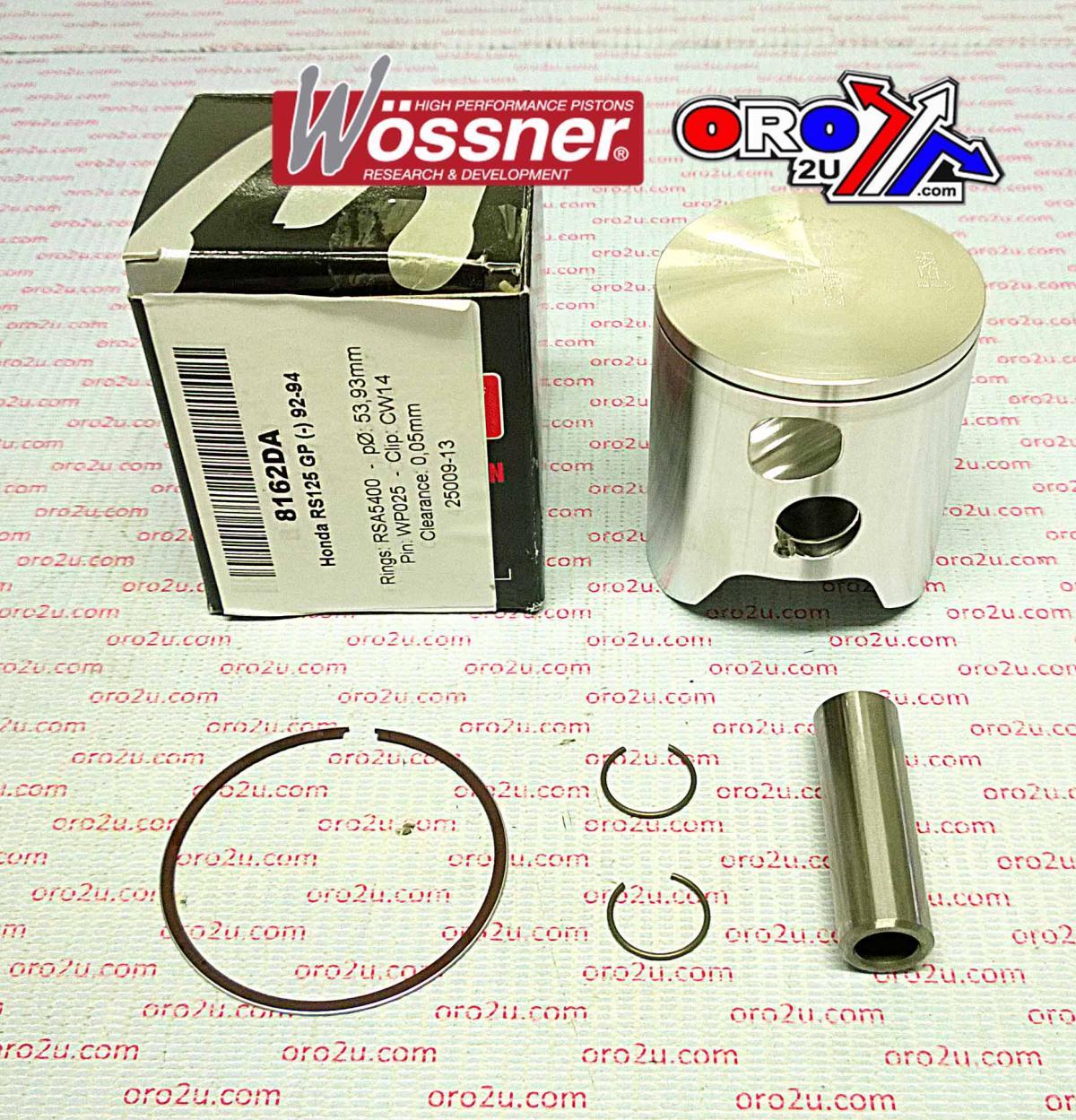

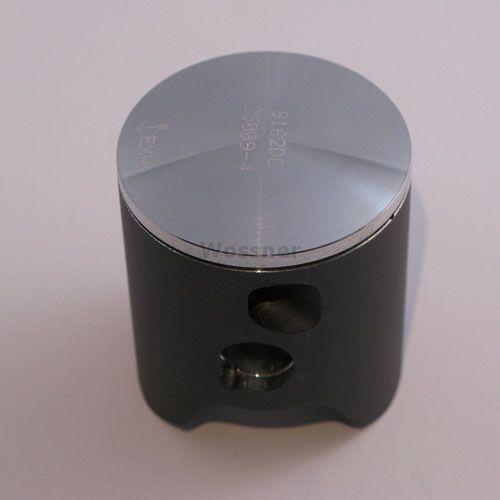

This Wossner forged piston kit with a nominal bore of 54mm (actual 53.93mm) is designed for Honda RS125 GP motorcycles from 1992 to 1994. Crafted to endure the demands of two-stroke racing engines, it provides enhanced strength, thermal performance, and load distribution.

Features

  • Forged for superior strength and resistance to stress

  • Elliptical contour reduces localised pressure and improves load distribution

  • Facilitates optimal heat transfer to cylinder walls

  • Manufactured in Germany for precision and reliability

Specifications

  • Bore Size: 54mm (actual 53.93mm)

  • Stroke: 54.50 mm

  • Clearance: 0.07 mm

  • Wossner Compression Ratio: 2 stroke

  • OEM Compression Ratio: 2 stroke

  • Compression Height: 30.00 mm

  • Lock Part Number: CW15

  • Pin Part Number: WP025

  • Ring Set Part Number: RSA5400

Vehicle Fitments

  • Honda RS125 GP 1992

  • Honda RS125 GP 1993

  • Honda RS125 GP 1994
