PISTON KIT 92-93 KX125 54.50, WOSSNER 8110D050 KAWASAKI MX

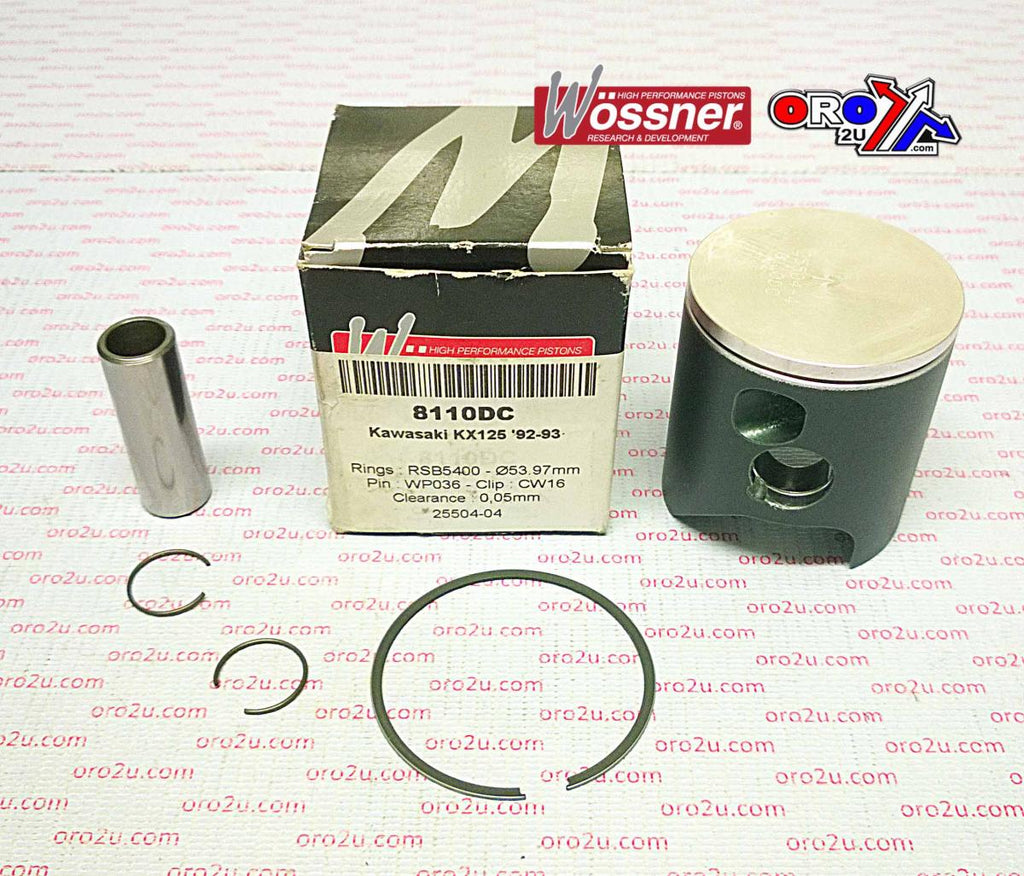

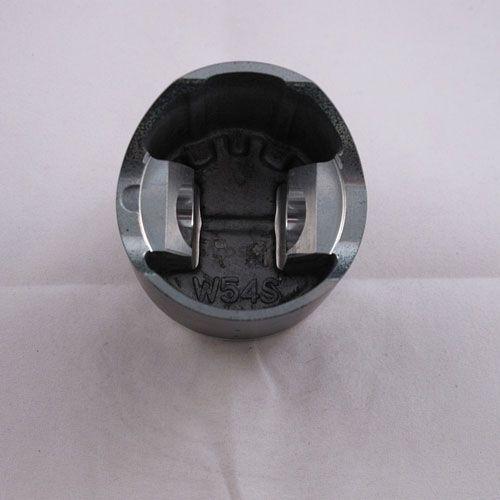

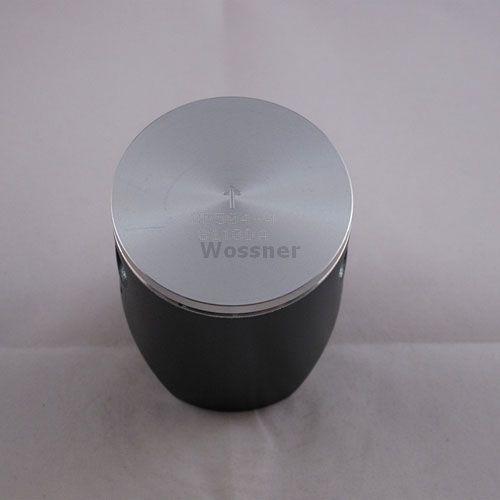

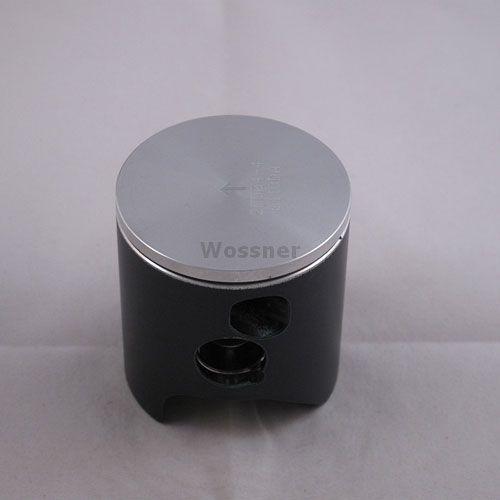

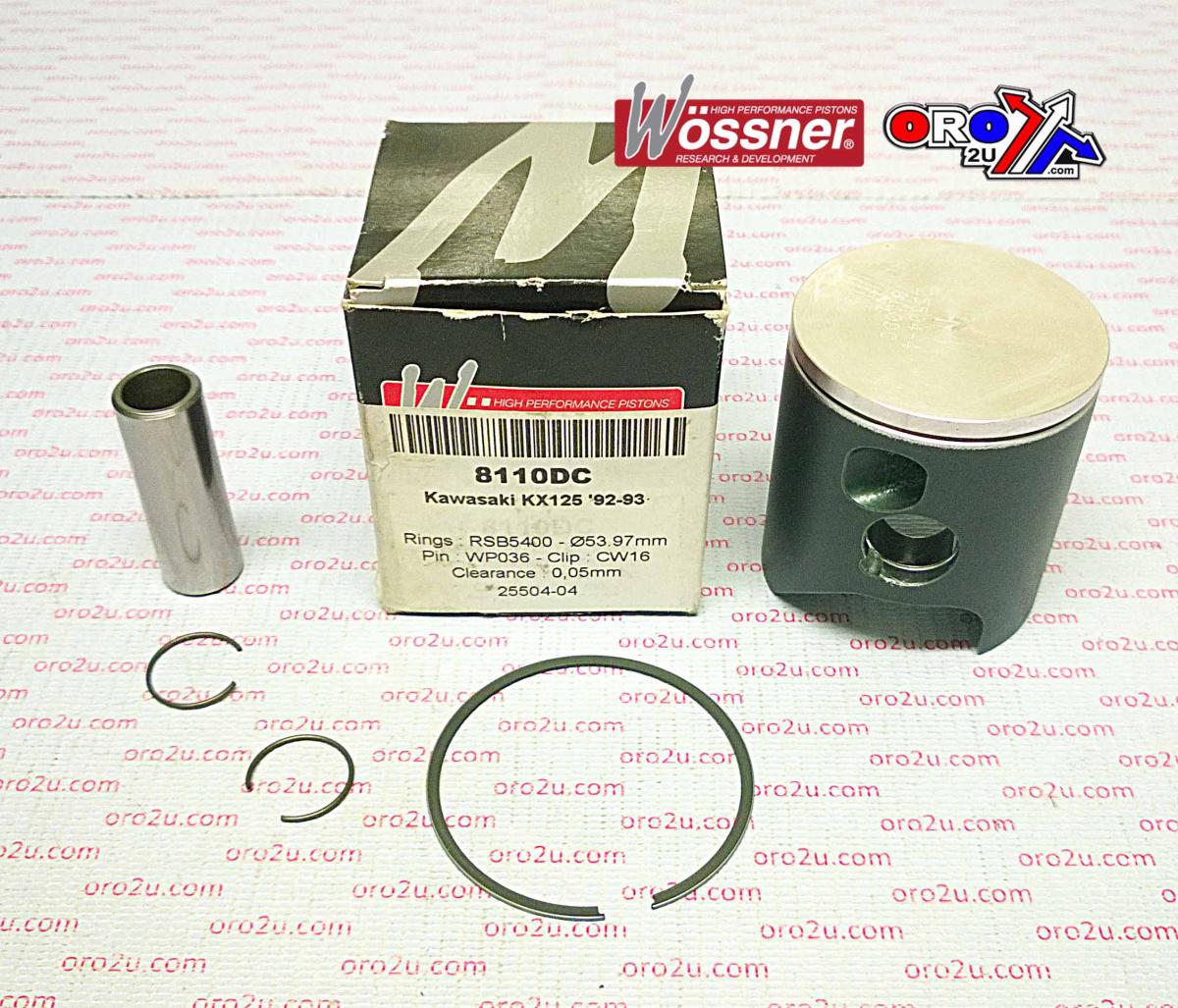

Wossner Forged Piston Kit 54.50mm Bore – Kawasaki KX125 (1992–1993)
This Wossner forged piston kit is designed for Kawasaki KX125 models from 1992 to 1993. With a bore size of 54.50 mm and a piston diameter of 54.44 mm (+0.50 mm oversize), it is intended for significantly overbored cylinders. Built for 2-stroke performance, the forged construction provides excellent strength and thermal stability, while the elliptical design promotes even thrust load distribution to minimise wear and stress. Manufactured in Germany for precise performance.

Features

• Forged piston ensures superior mechanical strength and resistance to fatigue

• Efficient combustion chamber heat transfer for enhanced engine cooling

• Elliptical profile reduces localised pressure and distributes thrust loads evenly

• Precision-manufactured in Germany

Specifications

• Bore Size: 54.50 mm

• Piston Diameter: 54.44 mm

• Engine Displacement: 125 cm³

• Stroke: 54.50 mm

• Clearance: 0.06 mm

• Compression Height: 29.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8110D050

• Lock: CW16

• Pin: WP036

• Ring Set: RSB5450

• Rod: P2037

Vehicle Fitments

• 1992 Kawasaki KX125

• 1993 Kawasaki KX125
