PISTON KIT 91-94 KTM300 73.00, WOSSNER 8012D100 FORGED

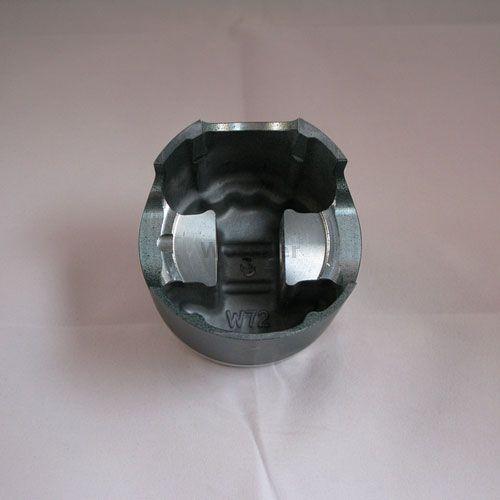

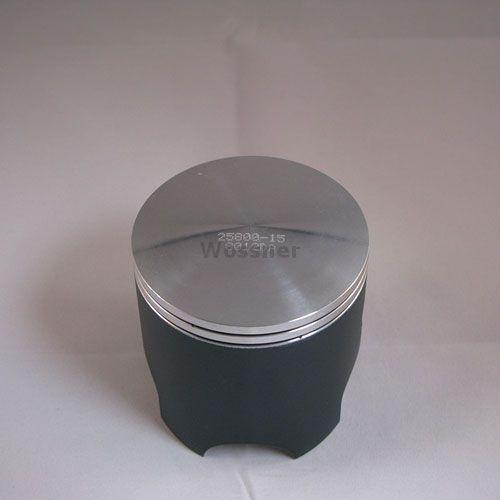

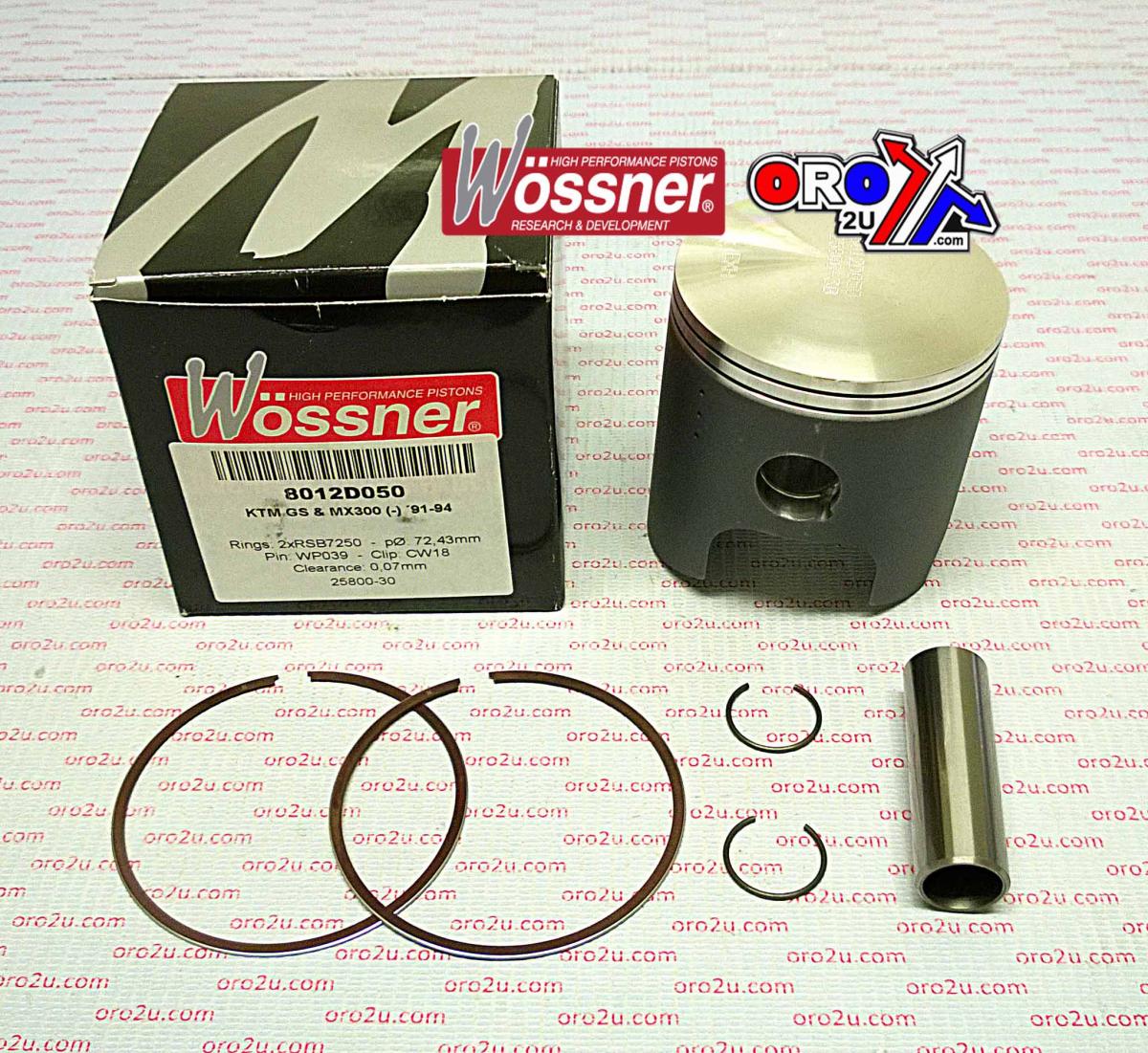

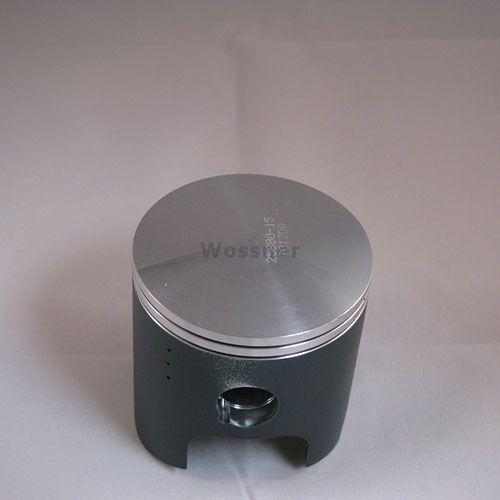

The Wossner 8012D100 (+1.00) piston kit features a 73.00mm bore (actual 72.93mm) and is engineered for outstanding strength and optimised heat transfer to the cylinder walls. The forged, elliptically designed piston ensures a uniform bearing surface during heat expansion, reducing localised pressure and evenly distributing thrust loads to prevent piston collapse. Made in Germany, this kit includes all necessary components for reliable engine performance and fits KTM 300 models from 1990 to 1994.

Features

• Forged piston construction for enhanced strength and reliability

• Designed for efficient combustion chamber heat transfer

• Elliptical design ensures uniform bearing surface during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Made in Germany

Specifications

• Bore Size: 73.00mm (Actual 72.93mm)

• Display (cm³): 297

• Stroke (mm): 72.00

• Clearance (mm): 0.07

• Compression Ratio (Wossner 2-stroke): 2 stroke

• Compression Ratio (OEM 2-stroke): 2 stroke

• Compression Height (mm): 29.70

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8012D100 (+1.00)

• Lock Part No: CW18

• Pin Part No: WP039

• Ring Set Part No: RSB7300 × 2

Vehicle Fitments

• 1990 KTM GS300

• 1990 KTM MX300

• 1990 KTM EXC300

• 1991 KTM GS300

• 1991 KTM MX300

• 1991 KTM EXC300

• 1992 KTM GS300

• 1992 KTM MX300

• 1992 KTM EXC300

• 1993 KTM GS300

• 1993 KTM MX300

• 1993 KTM EXC300

• 1994 KTM GS300

• 1994 KTM MX300

• 1994 KTM EXC300
