PISTON KIT 91-01 RM80 46.50, WOSSNER 8231DB SUZUKI MX

PISTON KIT 91-01 RM80 46.50, WOSSNER 8231DB SUZUKI MX

£88.14 GBP
Taxes included. Shipping calculated at checkout.

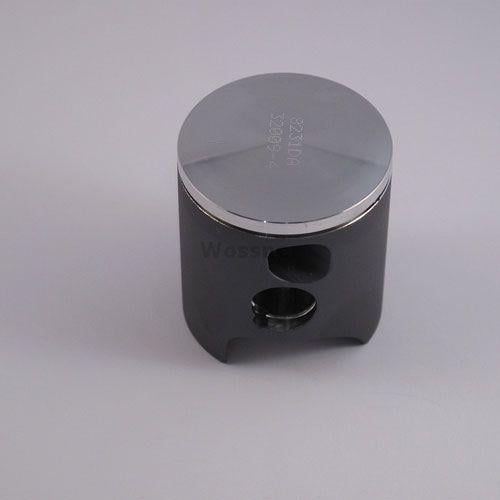

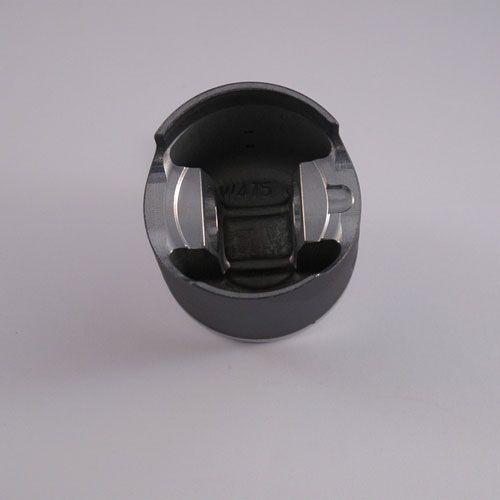

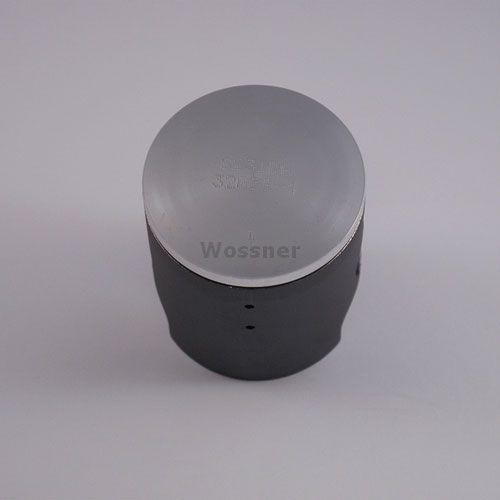

Wossner forged piston kit with a 46.51mm bore (46.46mm actual) is engineered for Suzuki RM80 models from 1991 to 2001, including those with international bore dimensions. Made in Germany, this piston is designed to improve thermal performance and mechanical reliability, using an elliptical profile to distribute thrust forces evenly and avoid localised pressure that can lead to piston failure.

Features

  • Forged construction enhances mechanical strength and longevity

  • Elliptical design ensures uniform bearing surface under expansion

  • Facilitates efficient combustion heat transfer to cylinder walls

  • Compatible with international bore specifications

  • Manufactured in Germany to strict tolerances

Specifications

  • Bore Size: 46.51mm (Actual: 46.46mm)

  • Compression Height: 27.00mm

  • Clearance: 0.05mm

  • Stroke: 46.80mm

  • Displacement: 82 cm³

  • Wossner Compression Ratio: 2-stroke

  • OEM Compression Ratio: 2-stroke

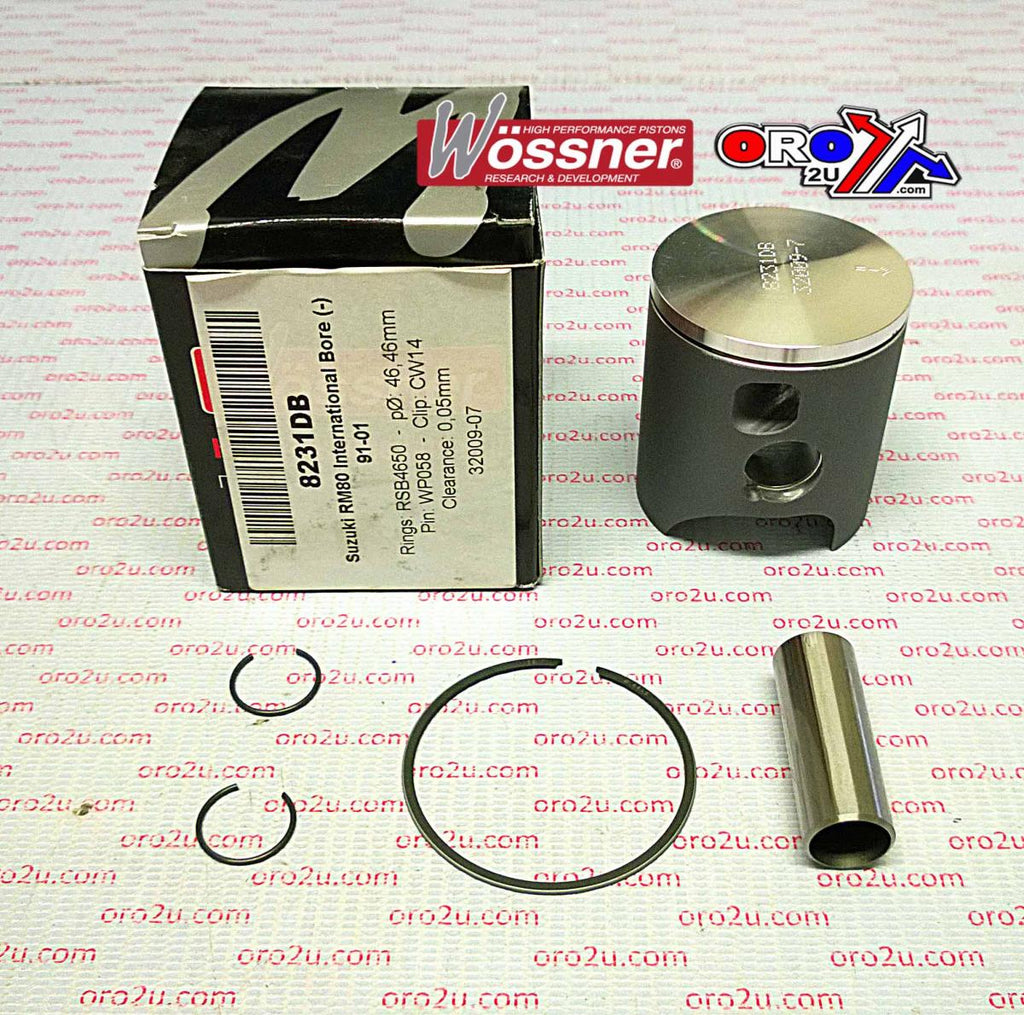

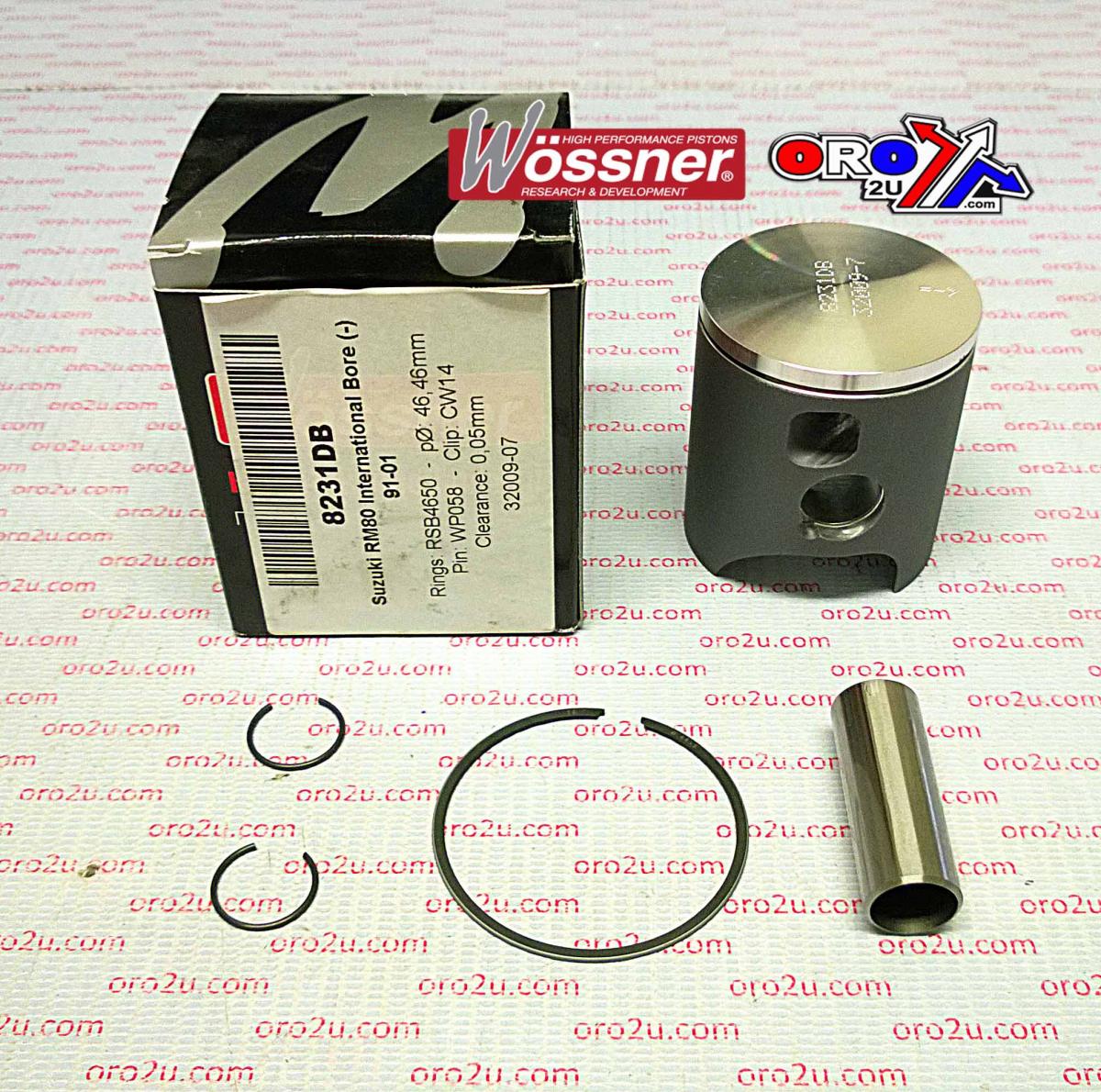

Cross-Reference OEM Part Numbers

  • Piston Kit: 8231DB

  • Lock: CW14

  • Pin: WP058

  • Ring Set: RSB4650

Vehicle Fitments

  • Suzuki RM80 (1991–2001)
