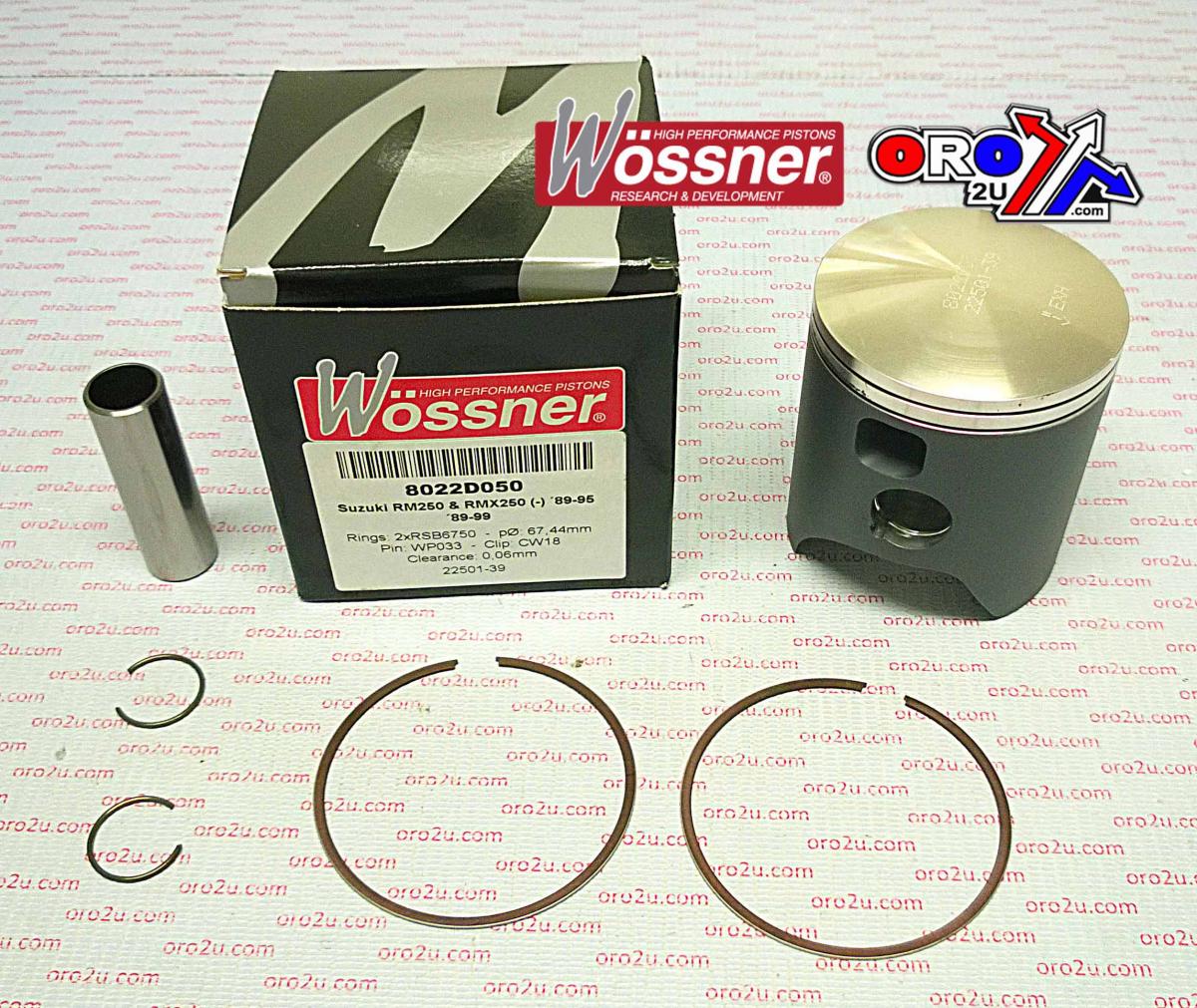

PISTON KIT 89-95 RM250 67.00 C, WOSSNER 8022DC SUZUKI MX

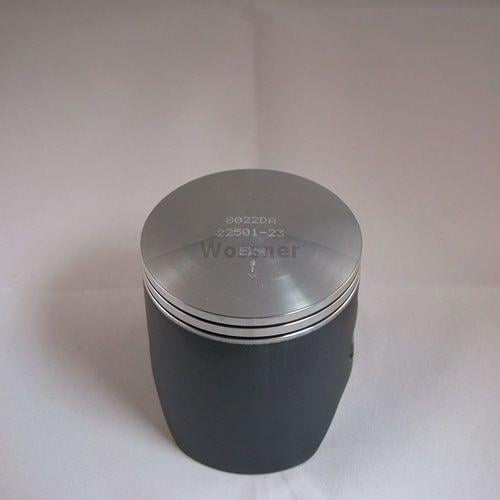

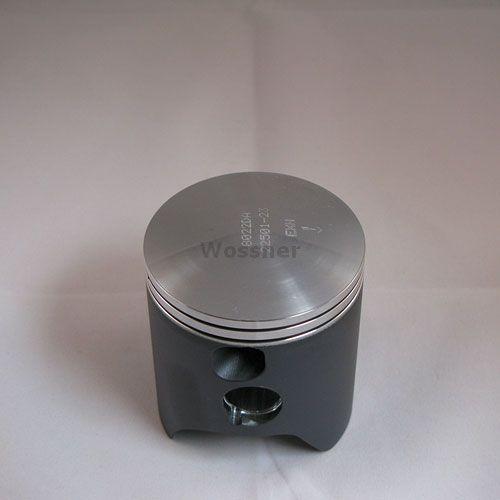

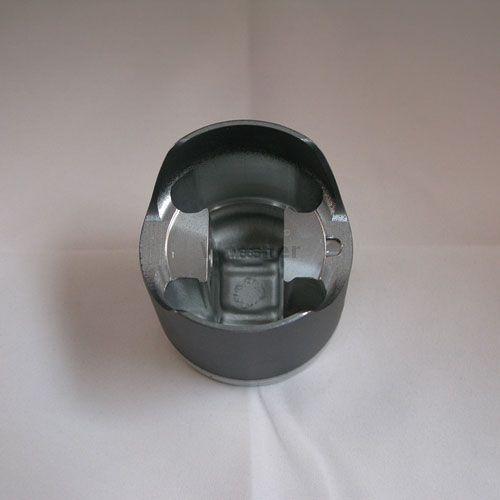

The Wossner 8022DC piston with a 67.02mm bore (66.96mm actual size) is crafted for high durability and performance, specifically fitting Suzuki RM250 (1989-1995) and RMX250 (1993-1995) models. Produced in Germany, this forged piston is designed to enhance heat transfer efficiency to the cylinder walls. Its elliptical design ensures even load distribution under thermal expansion, preventing localised stress and piston collapse.

Features

• Forged construction for enhanced strength and durability

• Designed for optimal heat transfer from combustion chamber to cylinder walls

• Elliptical profile for uniform bearing surface during heat expansion

• Manufactured in Germany

Specifications

• Bore: 67.02mm (actual size 66.96mm)

• Part Number: 56-W642.00C.WO

• Lock Part Number: CW18

• Pin Part Number: WP033

• Ring Set Part Number: RSB6700 x 2

• Displacement: 246 cm³

• Stroke: 70.80mm

• Clearance: 0.06mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 37.00mm

Cross-Reference OEM Part Numbers

• Piston: 12110-28C11-0F0, 12110-29E20-0F0

• Ring, Piston: 12141-41600, 12141-41620

• Pin, Piston: 12151-28C00, 12151-37F00

• Circlip: 09381-18002

Vehicle Fitments

• 1989-1995 Suzuki RM250

• 1993-1995 Suzuki RMX250
