PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
  • PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050
PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050

PISTON KIT 88-89 KX125 56.50, FORGED WOSSNER 8130D050

£114.37 GBP
Taxes included. Shipping calculated at checkout.

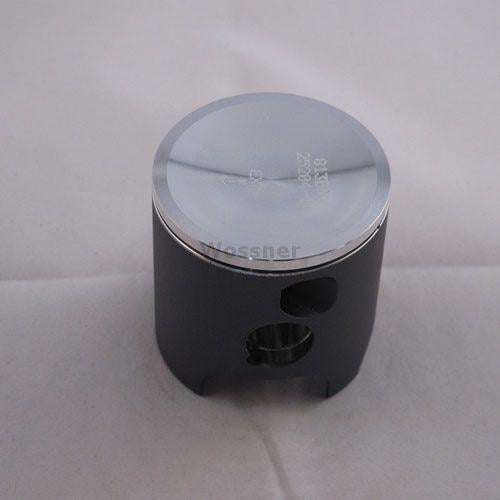

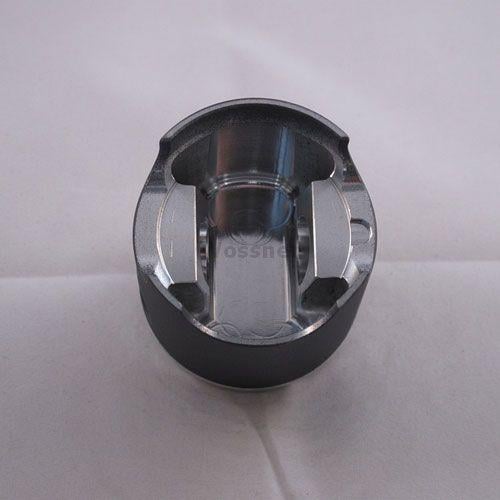

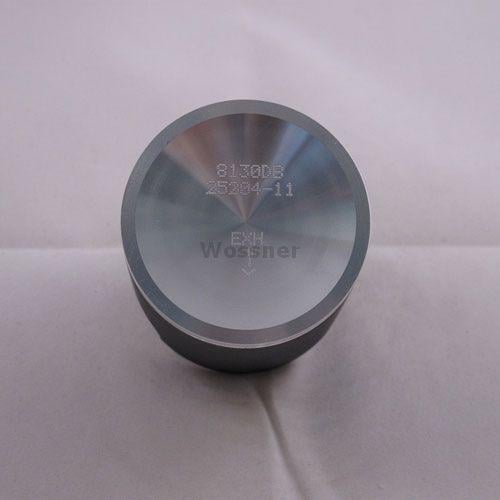

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.

Features

  • Forged piston for enhanced strength and durability
  • Optimized heat transfer for efficient combustion
  • Elliptical design to prevent piston collapse
  • Manufactured in Germany

Specifications

  • Bore Size: 56.50mm
  • Actual Bore Diameter: 56.44mm
  • Displacement: 125 cm³
  • Stroke: 50.60mm
  • Clearance: 0.06mm
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Compression Height: 29.50mm
  • Theoretical Weight: Not specified

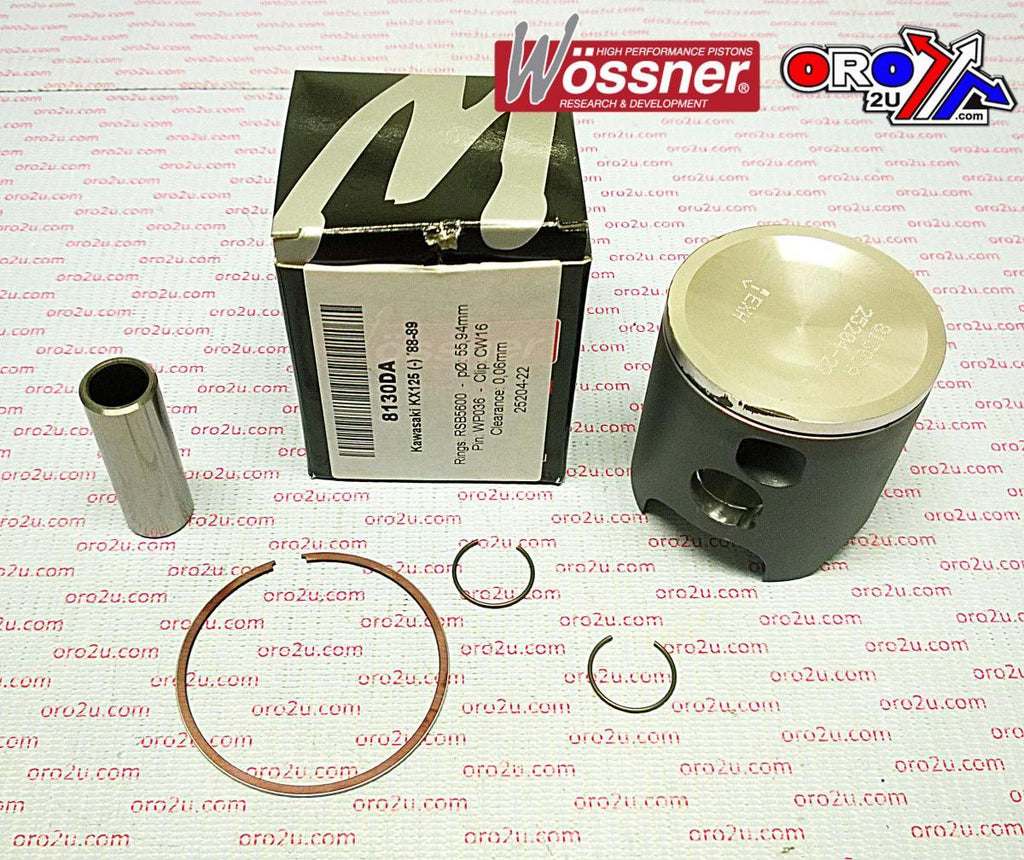

Included Components

  • Lock Part Number: CW16
  • Pin Part Number: WP036
  • Ring Set Part Number: RSB5650

Vehicle Fitments

  • Kawasaki KX125 (1988-1989)
