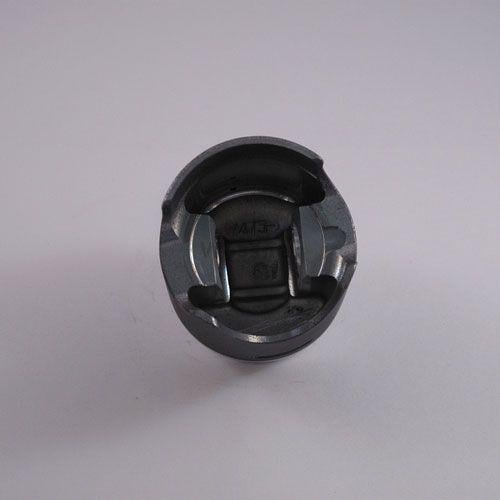

PISTON KIT 88-00 KX80 48.50, WOSSNER 8197D050 KAWASAKI MX

Wossner forged piston kit with a 48.50mm bore size (48.45mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that promotes uniform bearing surfaces under heat expansion, ensuring effective heat transfer and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged piston construction for maximum strength and durability

• Designed for optimised heat transfer from combustion chamber to cylinder walls

• Elliptical design ensures uniform bearing surface during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 48.50mm (actual 48.45mm)

• Display Displacement: 80 cm³

• Stroke: 45.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Dome Volume: Not specified

• Compression Height: 26.00mm

• Theoretical Weight: Not specified

Cross-Reference OEM Part Numbers

• Piston Kit: 8197D050

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4850

Vehicle Fitments

• 1988–2000 Kawasaki KX80 (US Bore)
