PISTON KIT 88-00 KX80 47.00 C, WOSSNER 8234DC KAWASAKI MX

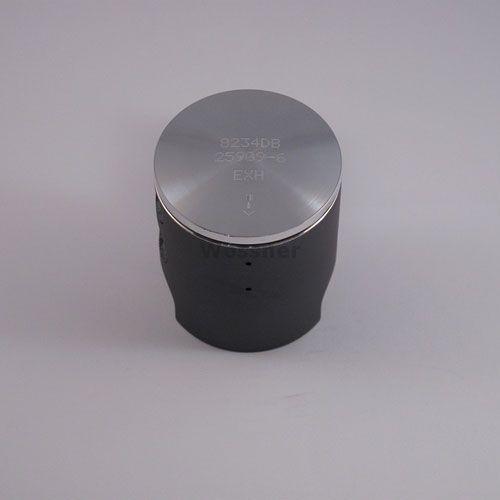

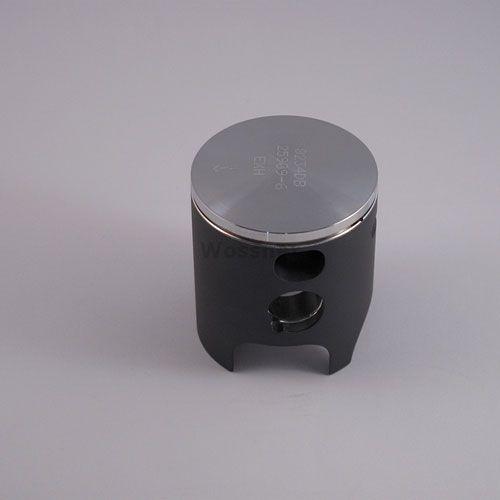

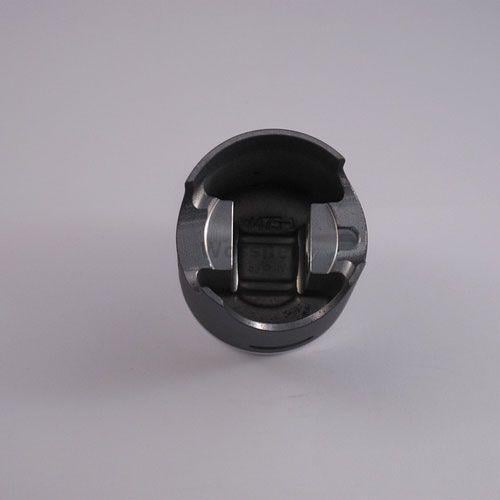

Wossner forged piston kit with a 47.02mm bore (46.97mm actual) is built for Kawasaki KX80 models with international bore dimensions. Suitable for model years 1988 to 2000, this German-engineered piston features an elliptical profile that ensures optimal load distribution and thermal expansion control. It is designed for efficient heat transfer to the cylinder wall, supporting reliable engine performance while minimising the risk of piston collapse.

Features

• Forged piston construction for high strength and endurance

• Elliptical shape promotes uniform stress distribution under heat

• Effective heat dissipation from combustion to cylinder wall

• Designed to accommodate international bore specifications

• Precision manufactured in Germany

Specifications

• Bore Size: 47.02mm (Actual: 46.97mm)

• Compression Height: 26.00mm

• Clearance: 0.05mm

• Stroke: 45.80mm

• Displacement: 79 cm³

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

• Piston Kit: 8234DC

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4700

• Rod: P2005

Vehicle Fitments

• Kawasaki KX80 (1988–2000, international bore)
