PISTON KIT 86-97 TS250 70.00, FORGED WOSSNER 8013DA
£129.75 GBP
Taxes included.

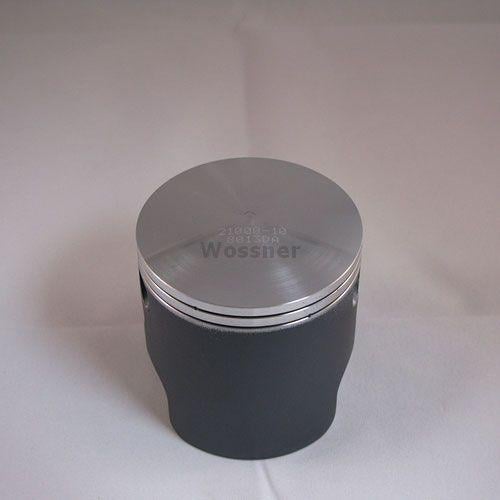

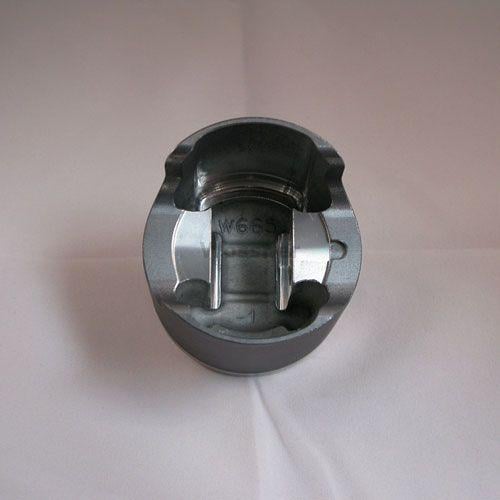

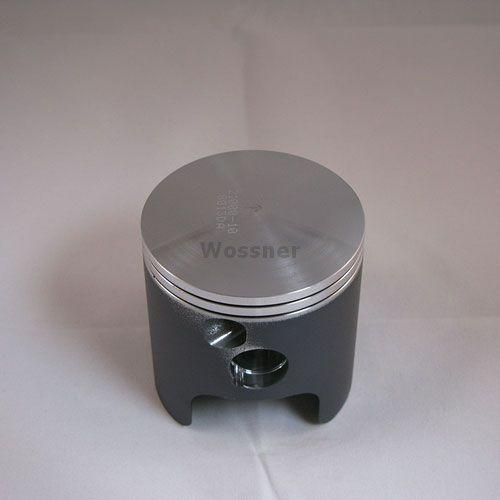

Wossner forged piston kit with a 70.00mm bore and 69.93mm diameter, designed for Suzuki TSX250, RH240, and TSX240 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Features
- Forged construction for superior strength
- Optimized heat transfer for efficient combustion
- Elliptical design for uniform load distribution
- Manufactured in Germany
Specifications
- Bore: 70.00mm
- Diameter: 69.93mm
- Display (cm³): 250
- Stroke (mm): 50.60
- Clearance (mm): 0.07
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Compression Height (mm): 31.00
Cross-Reference OEM Part Numbers

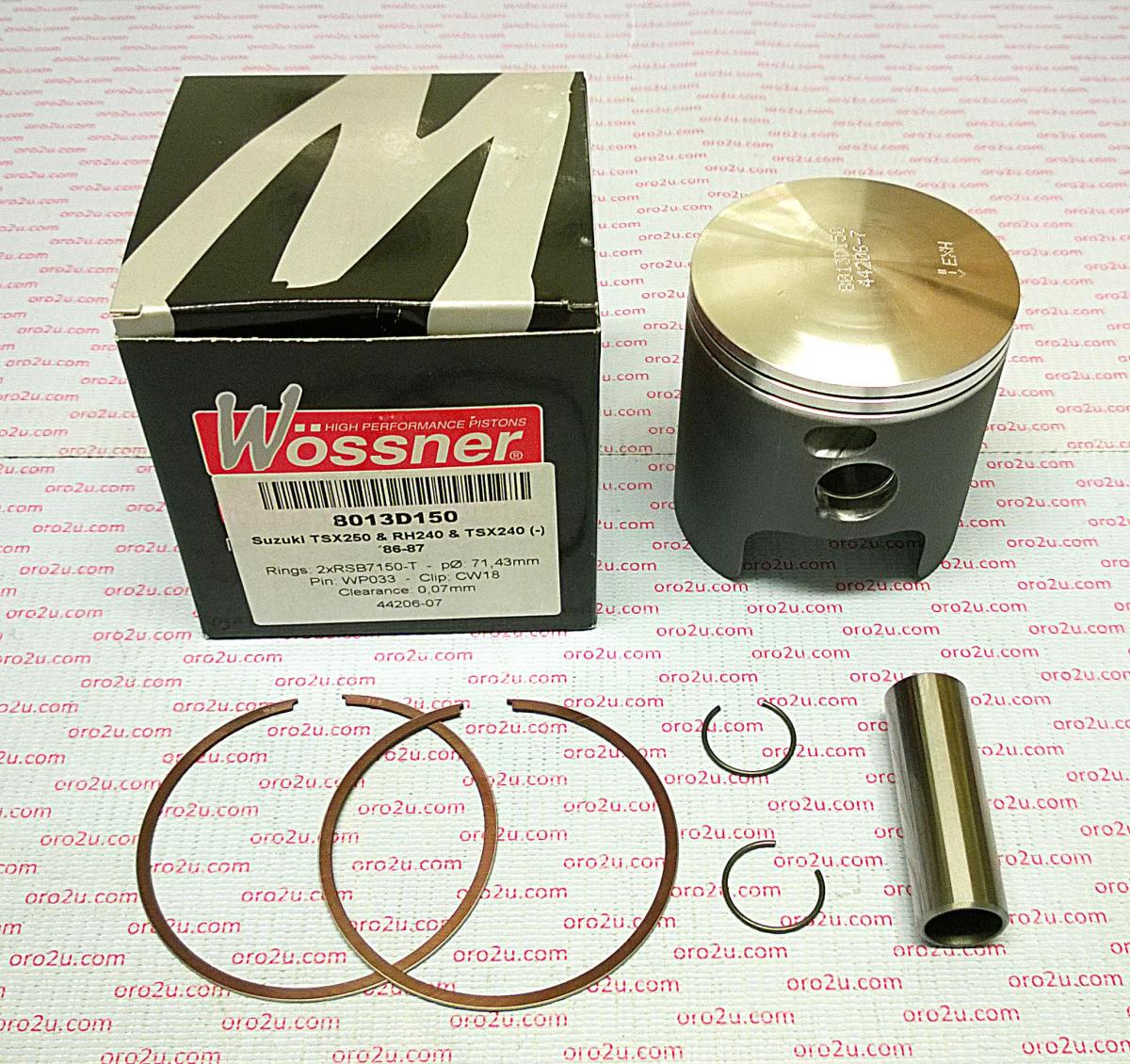

- Wossner Piston Suzuki TSX250 (PN# 8013DA)
- Lock P/N: CW18
- Pin P/N: WP033
- Ring Set P/N: RSB7000 x 2
Vehicle Fitments
- Suzuki TSX250 (1986-1987)
- Suzuki RH240 (1986-1987)
- Suzuki TSX240 (1986-1987)
