PISTON KIT 85-86 ATC350 81.00, FORGED WOSSNER 8598DA
£154.43 GBP
Taxes included.

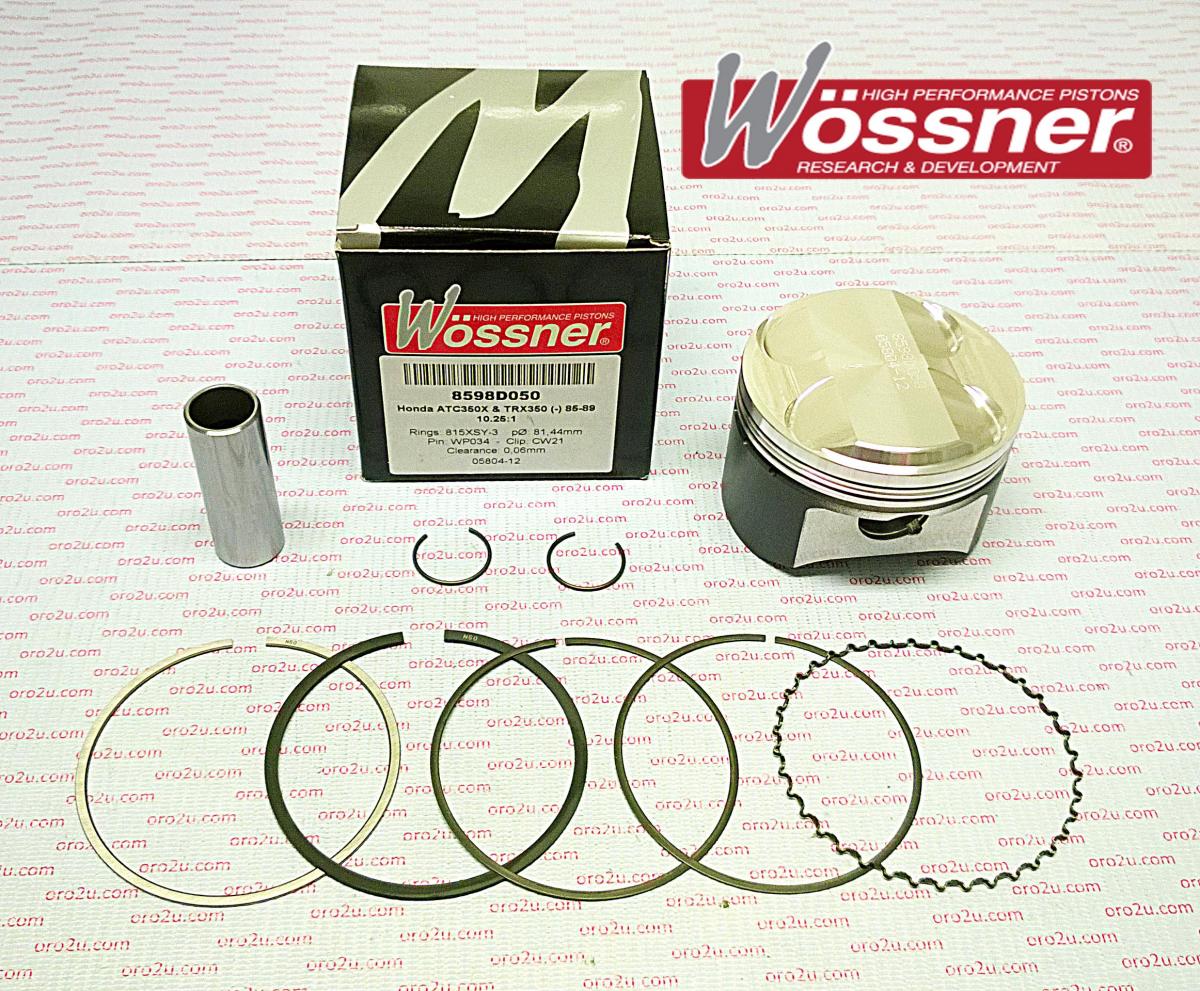

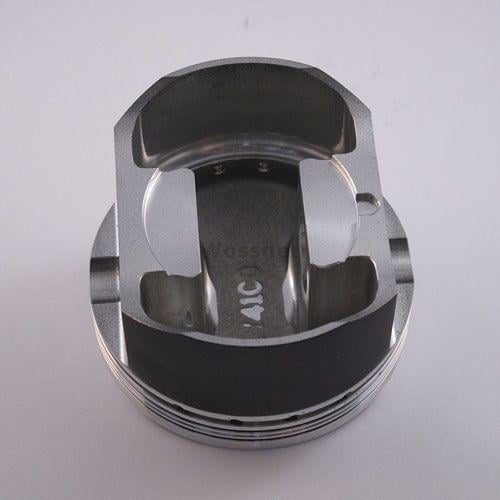

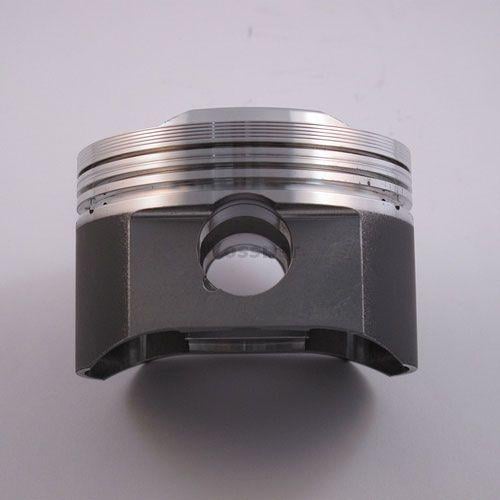

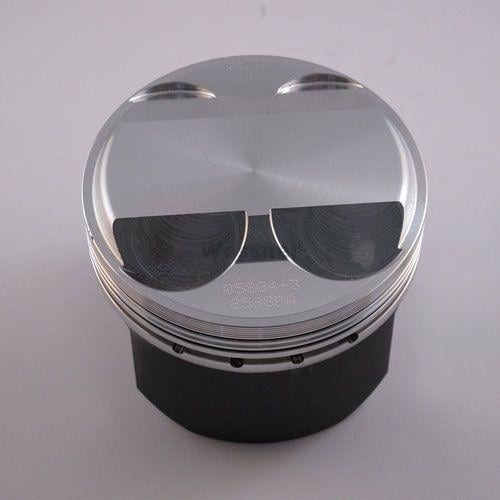

Wossner forged piston kit designed for Honda ATC350X and TRX350 models from 1985 to 1989. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged construction for enhanced durability and strength
- Optimized heat transfer for improved performance
- Elliptical design for uniform bearing surface and reduced wear
- Designed for 4-stroke engines
Specifications
- Bore Size: 81.00 mm
- Actual Bore: 80.94 mm
- Stroke: 68.00 mm
- Clearance: 0.06 mm
- Compression Height: 26.70 mm
- Dome Volume: +0.60 cm³
- Compression Ratio: 10.30:1 (OEM)
- Displacement: 350 cm³
- Made in Germany
Cross-Reference OEM Part Numbers
- Wossner Part No.: 8598DA
- Lock P/N: CW21
- Pin P/N: WP034
- Ring Set P/N: 810XSY
Vehicle Fitments
- Honda ATC350X (1985-1989)
- Honda TRX350 (1985-1989)
