PISTON KIT 85-00 XR600R 97.00, FORGED WOSSNER 8574DB
£186.49 GBP
Taxes included.

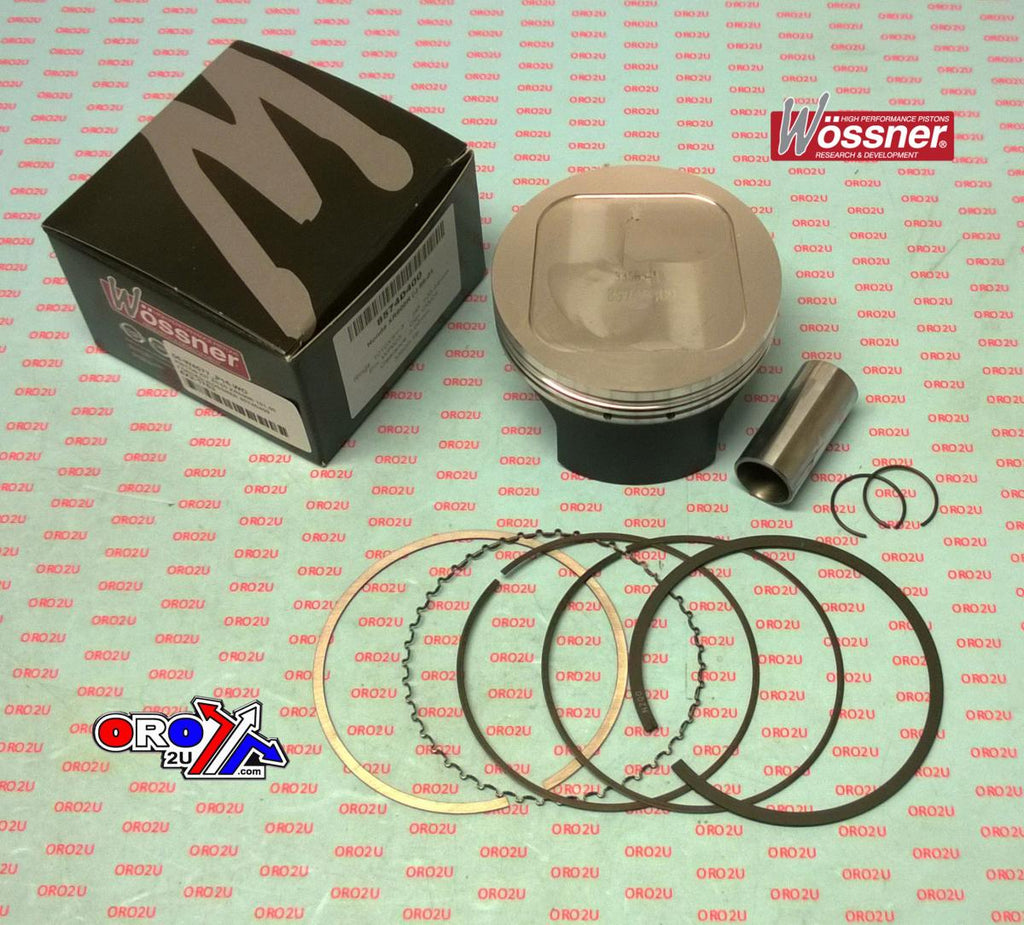

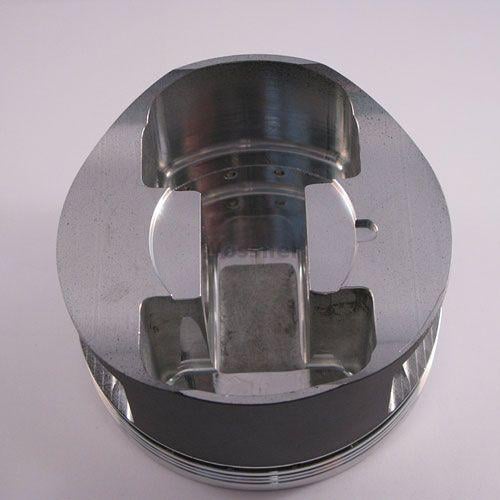

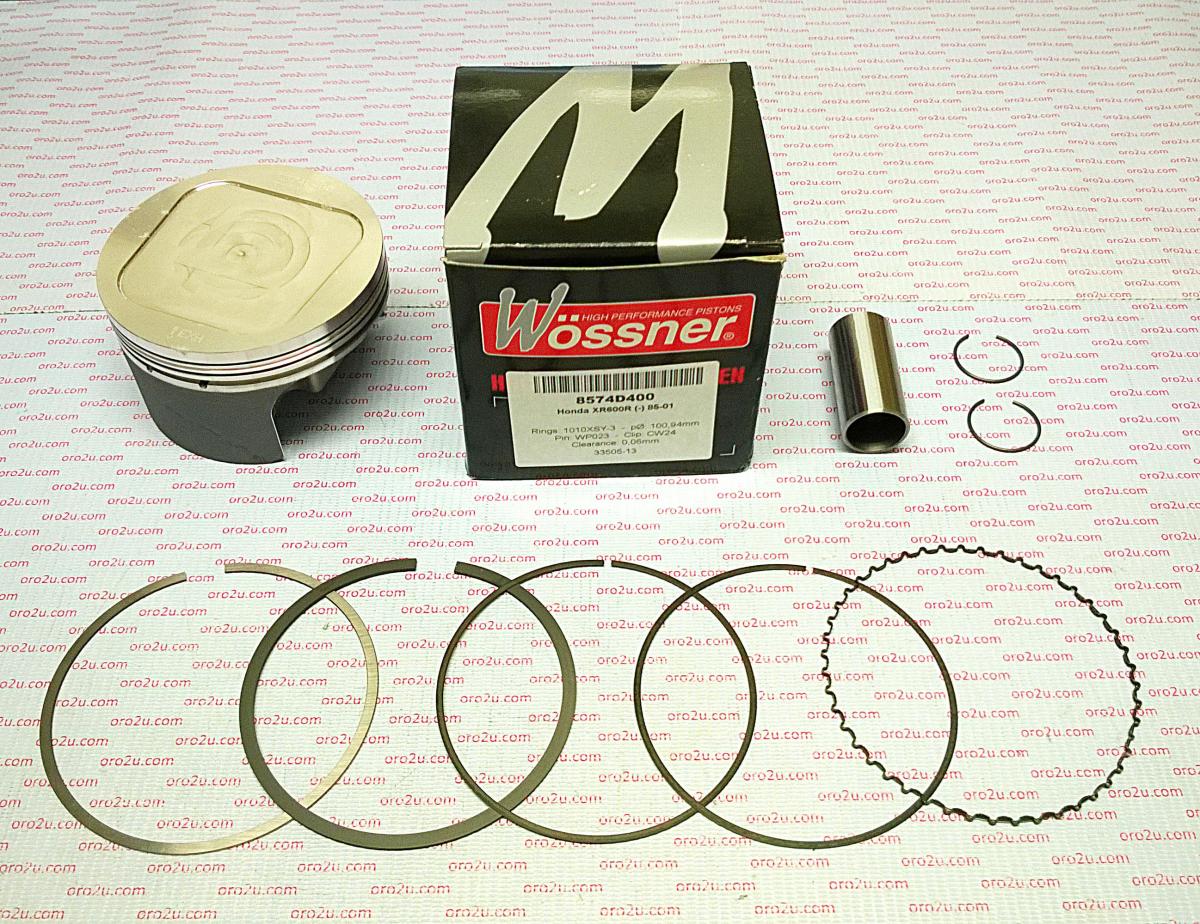

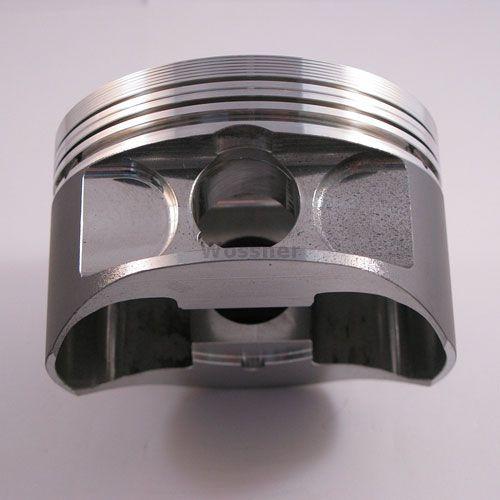

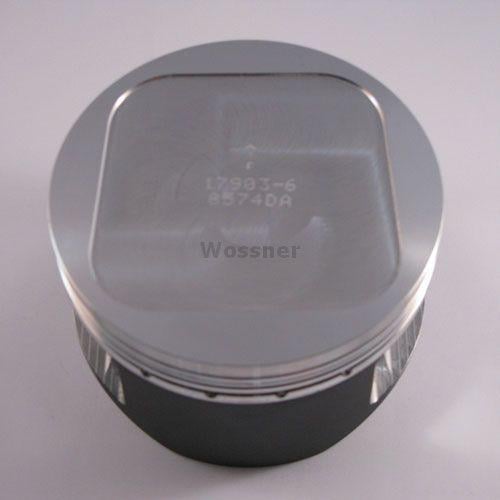

Wössner 97.01mm forged piston kit designed for Honda XR600R models from 1985 to 2001. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance.
Features
- Forged construction for superior strength and durability
- Optimized heat transfer to cylinder walls
- Elliptical design ensures uniform bearing surface under heat expansion
- Reduces localized pressure and evenly distributes thrust loads
- Prevents piston collapse under high-stress conditions
Specifications
- Bore Size: 97.01mm (Actual Size: 96.95mm)
- Wössner Part Number: 8574DB
- Lock Part Number: CW24
- Pin Part Number: WP057
- Ring Set Part Number: 970XSY
- Rod Part Number: P4028
- Displacement: 591 cm³
- Stroke: 80.00mm
- Clearance: 0.06mm
- Compression Ratio: 9.30:1
- OEM Compression Ratio: 9.00:1
- Dome Volume: -4.80 cm³
- Compression Height: 29.70mm
- Theoretical Weight: 348.00g
Cross-Reference OEM Part Numbers
- Not specified
Vehicle Fitments
- Honda XR600R (1985-2001)
- Honda XR600 (1985-2001)
