PISTON KIT 84-86 IT200 68.00, FORGED WOSSNER 8176D200
£129.75 GBP
Taxes included.

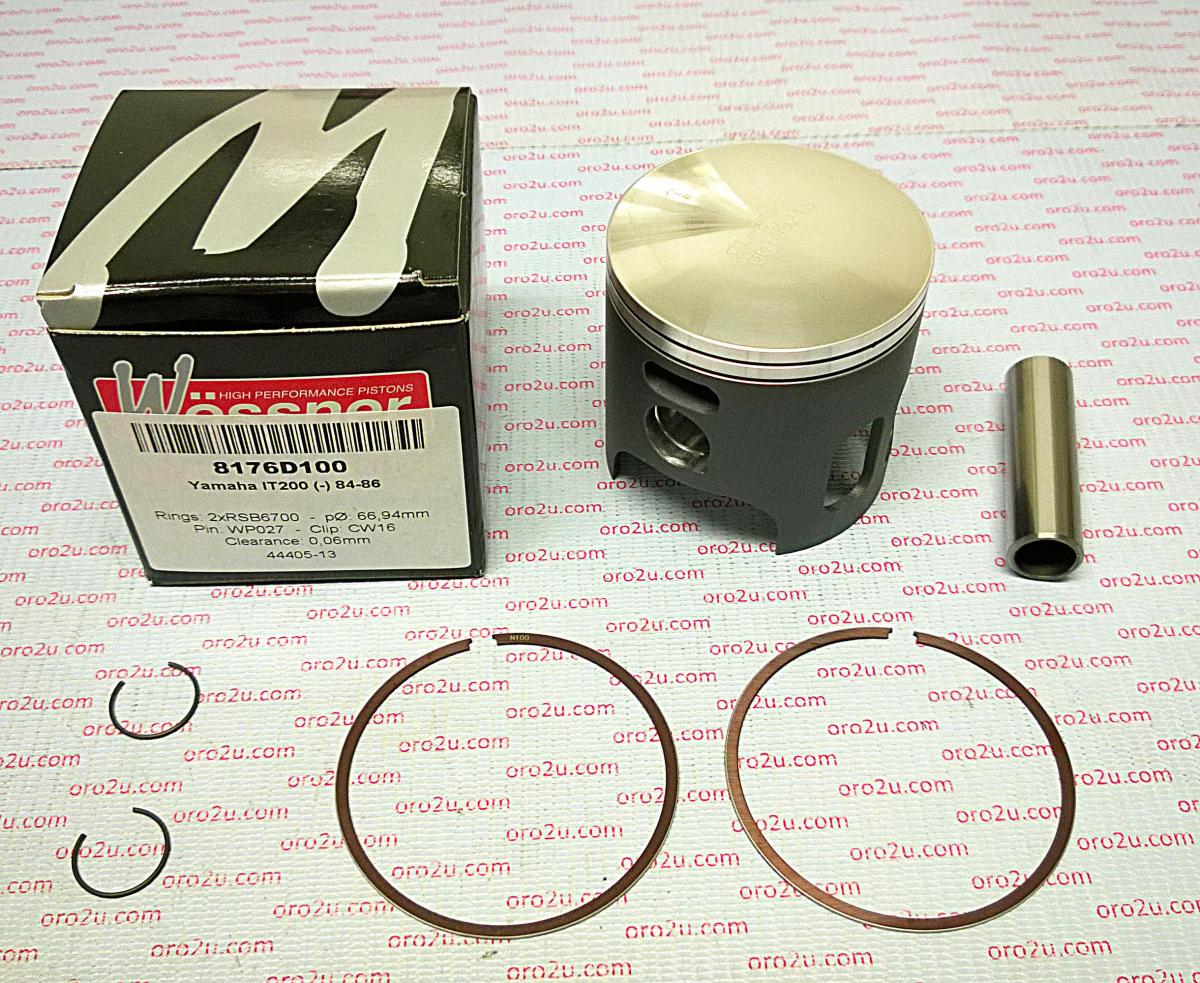

Wossner Piston Kit - 8176D200 is a high-quality forged piston designed for Yamaha IT200 models from 1984 to 1986. Manufactured in Germany, this piston is engineered for optimal heat transfer and uniform bearing surface distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged piston for superior strength and durability
- Engineered for optimal combustion chamber heat transfer
- Elliptical design for uniform bearing surface and reduced piston collapse
- Manufactured in Germany
- Compatible with available top-end bearing (Part No. B1005)
Specifications
- Bore Size: 68.00mm
- Actual Bore Diameter: 67.94mm
- Display (cm³): 195
- Stroke (mm): 57.00
- Clearance (mm): 0.06
- Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Compression Height (mm): 30.00
Included Items
- Lock (Part No. CW16)
- Wrist Pin (Part No. WP027)
- Ring Set (Part No. RSB6800 x 2)
Cross-Reference OEM Part Numbers
- 8176D200
Vehicle Fitments
- 1984 Yamaha IT200
- 1985 Yamaha IT200
- 1986 Yamaha IT200
