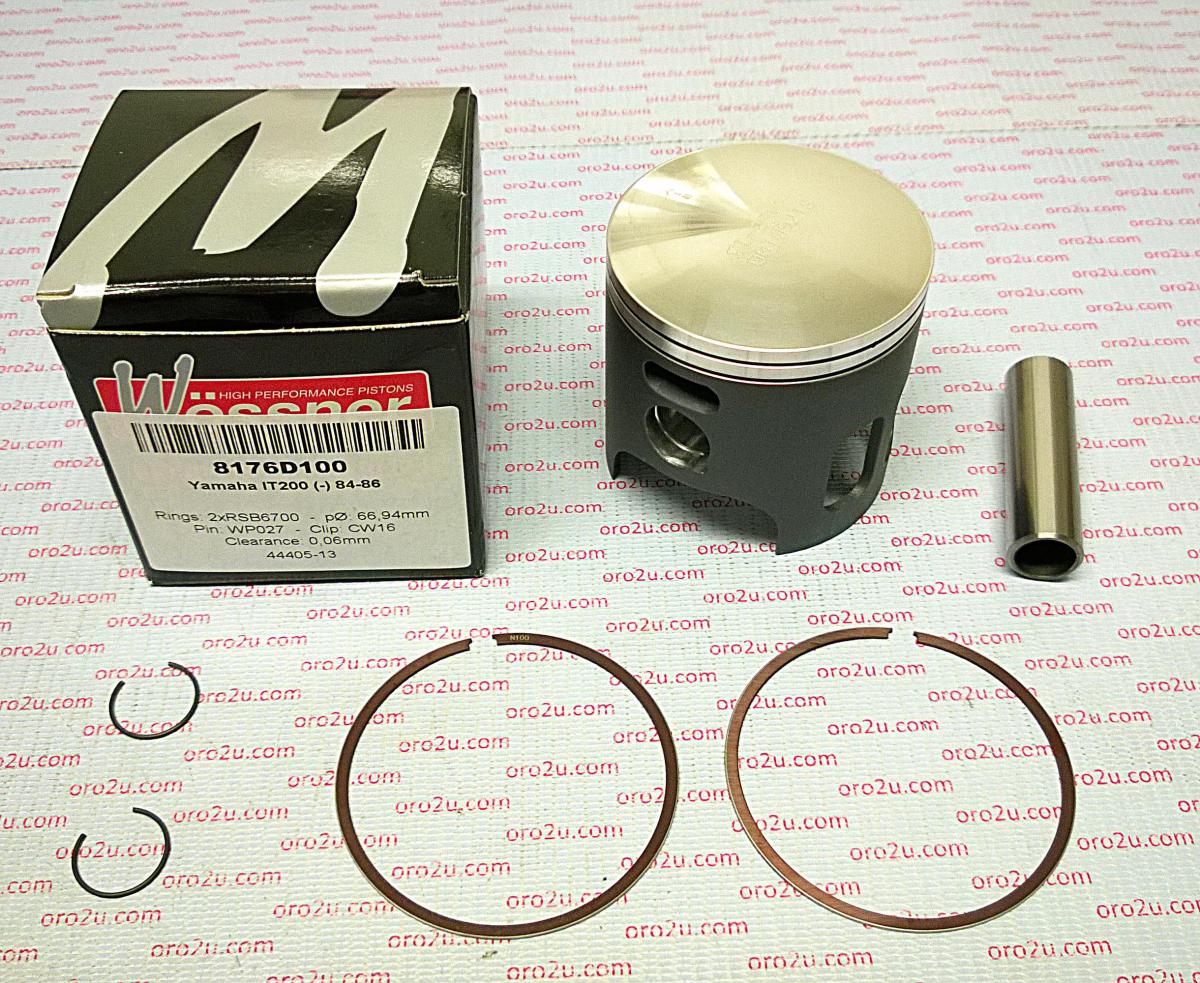

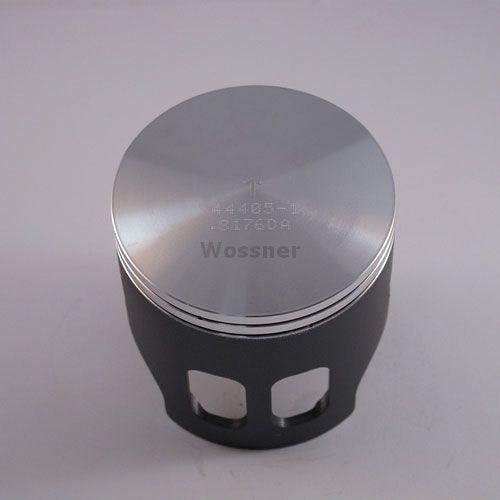

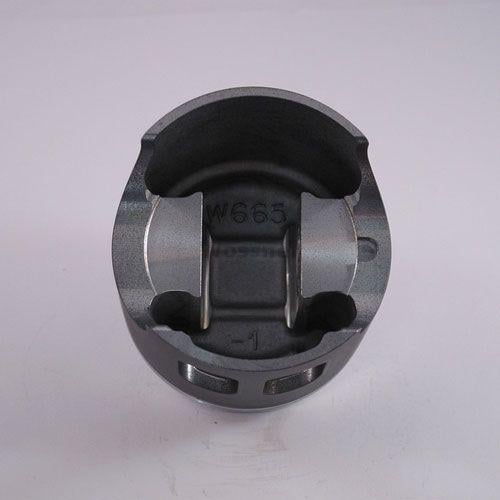

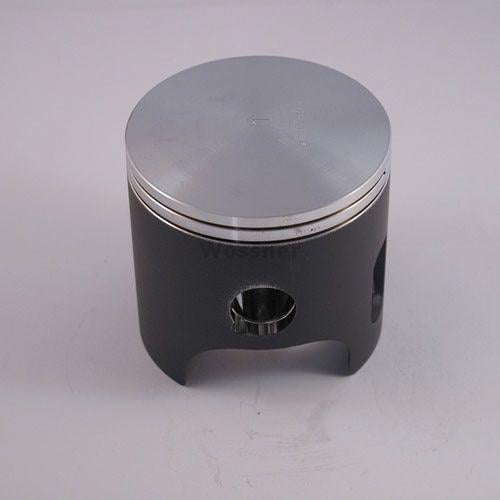

PISTON KIT 84-86 IT200 66.50, FORGED WOSSNER 8176D050

Piston Kit 66.50mm Bore 66.40 Wossner 8176D050 (+0.50)

YAMAHA IT200 1984-1986

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Lock P/N: CW16
• Pin P/N: WP027
• Ring Set P/N: RSB6650 x 2

Specifications:

• Display (cm3): 195
• Hub Stroke (mm): 57.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 Stroke
• OEM Compression Ratio: 2 Stroke
• Dome Volume (cm3):
• Compression Height (mm): 30.00
• Theoretical Weight (G):

Compatible Models:

• 1984-1986 Yamaha IT 200
