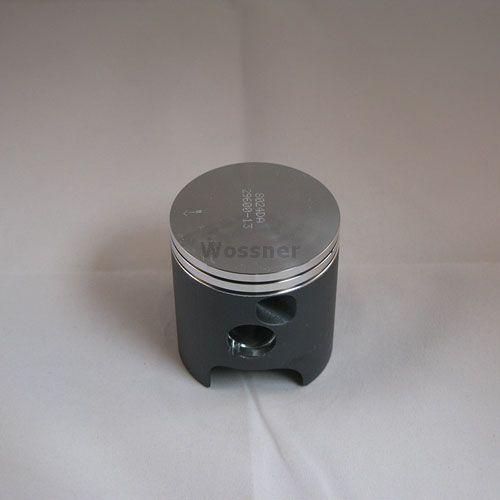

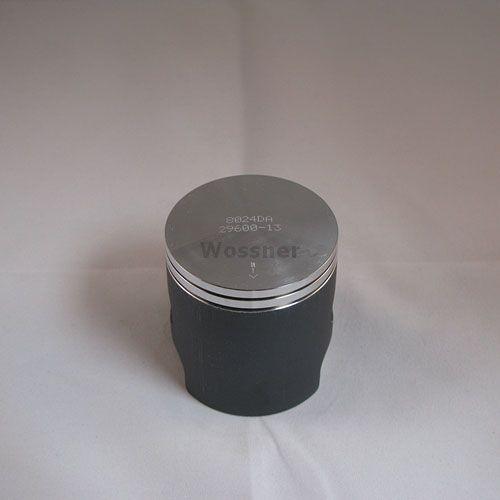

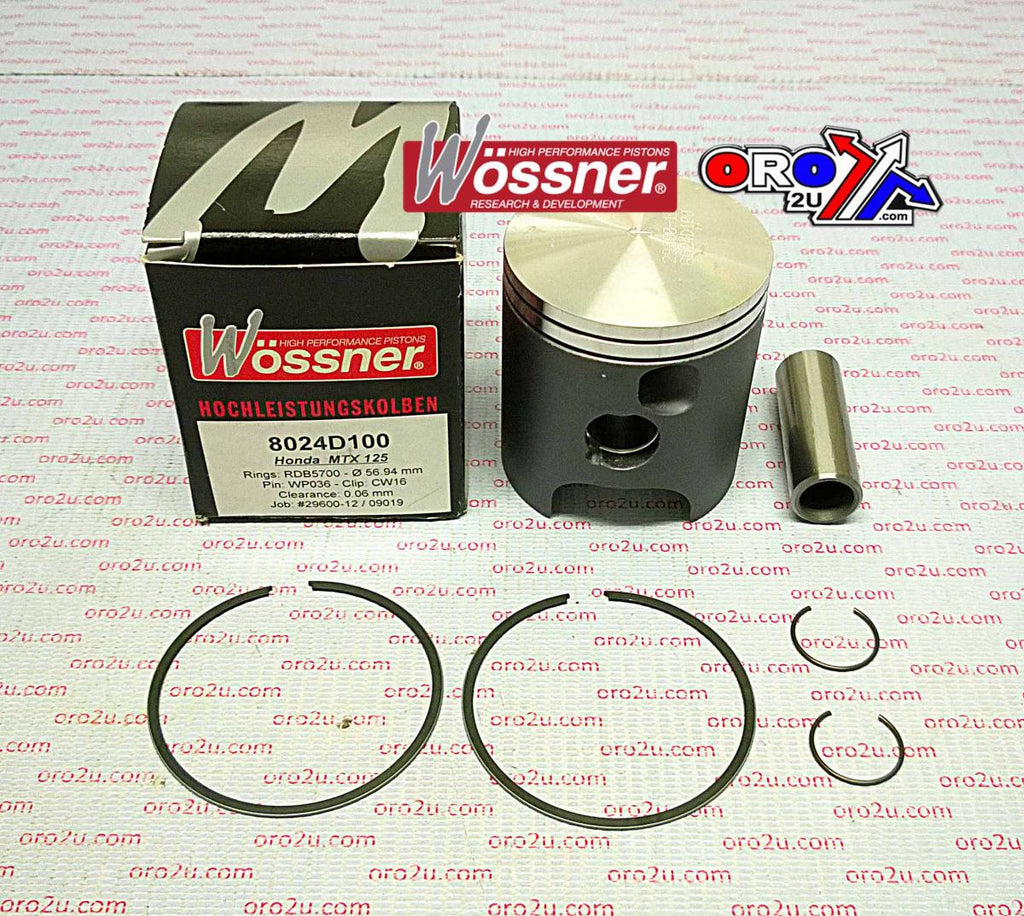

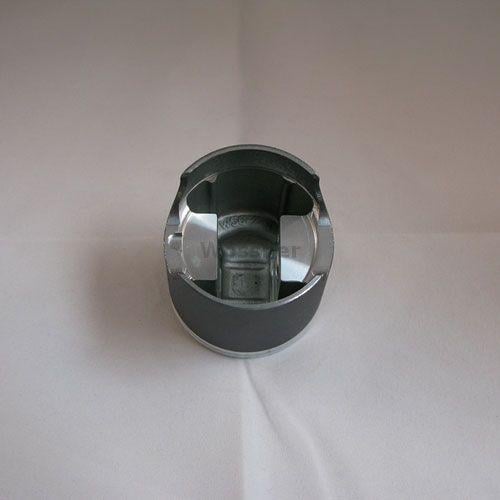

PISTON KIT 83-87 MTX125 56.50, WOSSNER 8024D050 HONDA ROAD

Wossner forged piston kit 8024D050 is an oversized (+0.50mm) solution for Honda MBX125 and MTX125 models from 1983 to 1987. With a 56.50mm bore and precision engineering, it is designed to withstand high-performance demands while ensuring reliable combustion and thermal management. Manufactured in Germany, this kit upholds Wossner's standards for durability and design accuracy.

Features

• Forged construction offers enhanced strength and resistance to wear

• Elliptical profile enables uniform load distribution under heat expansion

• Superior heat transfer from combustion chamber to cylinder walls

• Reduces localised pressure to help prevent piston collapse

• Made in Germany

Specifications

• Bore: 56.50mm (Measured: 56.44mm)

• Display Volume: 124 cm³

• Stroke: 50.60mm

• Clearance: 0.06mm

• Compression Height: 30.40mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Part No.: 56-W903+050.WO (Wossner Piston Honda MBX125 56.50 mm Bore, PN# 8024D050)

• Lock P/N: CW16

• Pin P/N: WP036

• Ring Set P/N: RSB5650 x 2

Cross-Reference OEM Part Numbers

• Not provided

Vehicle Fitments

• 1983 Honda MBX 125

• 1983 Honda MTX 125

• 1984 Honda MBX 125

• 1984 Honda MTX 125

• 1985 Honda MBX 125

• 1985 Honda MTX 125

• 1986 Honda MBX 125

• 1986 Honda MTX 125

• 1987 Honda MBX 125

• 1987 Honda MTX 125
