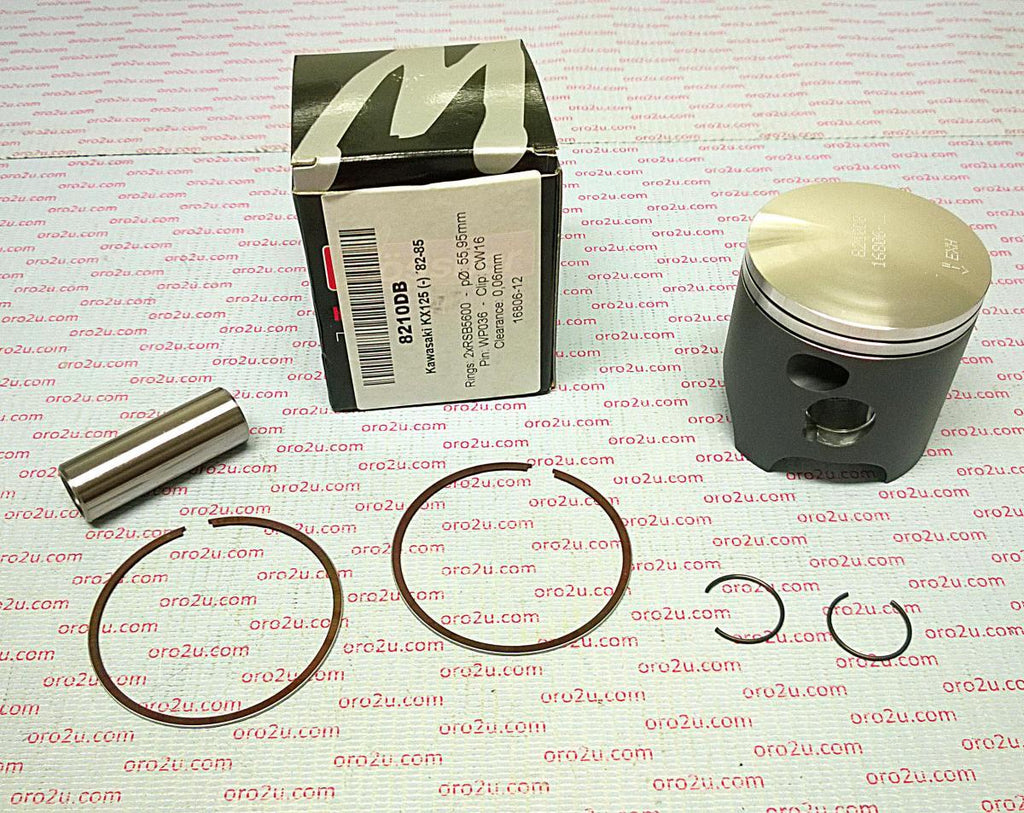

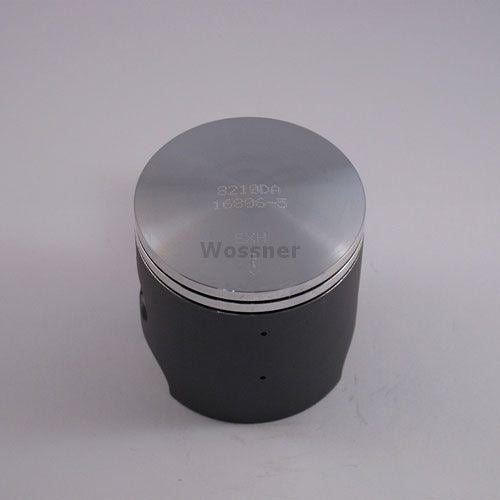

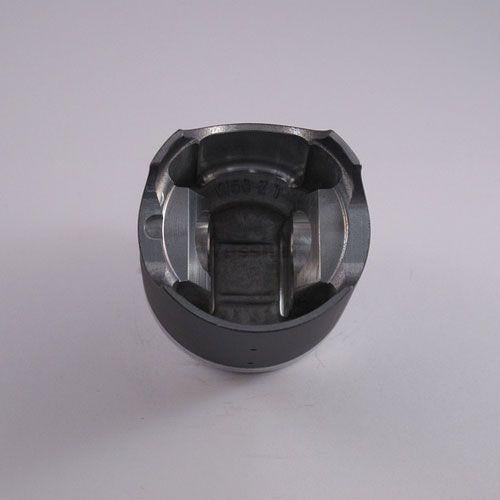

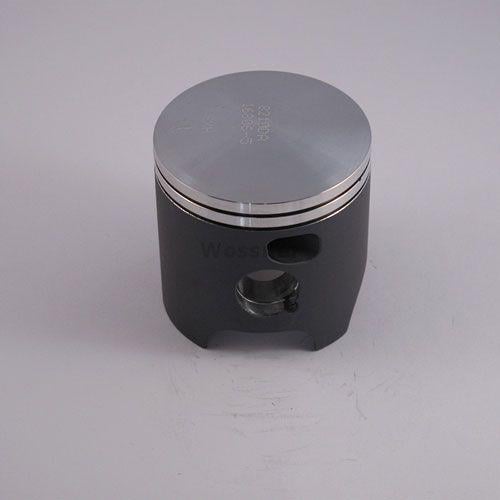

PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
  • PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT
PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT

PISTON KIT 82-85 KX125 56.50, WOSSNER 8210D050 FORGED KIT

£120.96 GBP
Taxes included. Shipping calculated at checkout.

The Wossner 8210D050 forged piston kit features a 56.50mm bore size and is designed for Kawasaki KX125 models from 1982 to 1985. Precision-engineered for efficient combustion chamber heat transfer and even thrust load distribution, this German-made piston is elliptically shaped to reduce localized pressure and prevent piston collapse.

Features

  • Forged piston for increased strength and durability
  • Designed to improve heat transfer from combustion chamber to cylinder walls
  • Elliptical design ensures uniform bearing surface under heat expansion
  • Prevents localized pressure and piston collapse
  • Manufactured in Germany

Specifications

  • Bore: 56.50 mm
  • Display: 125 cm³
  • Hub Stroke: 50.60 mm
  • Clearance: 0.06 mm
  • Compression Height: 29.70 mm
  • Compression Ratio: 2-stroke (Wossner and OEM)
  • Dome Volume: Not specified
  • Theoretical Weight: Not specified

Cross-Reference OEM Part Numbers

  • Piston: 8210D050
  • Lock: CW16
  • Pin: WP036
  • Ring Set: RSB5650 x 2
  • Rod: P2037
  • Part No.: 56-W486.050.WO

Vehicle Fitments

  • Kawasaki KX125 1982–1985
