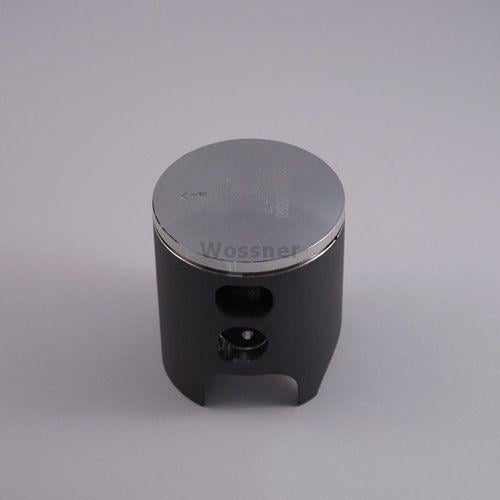

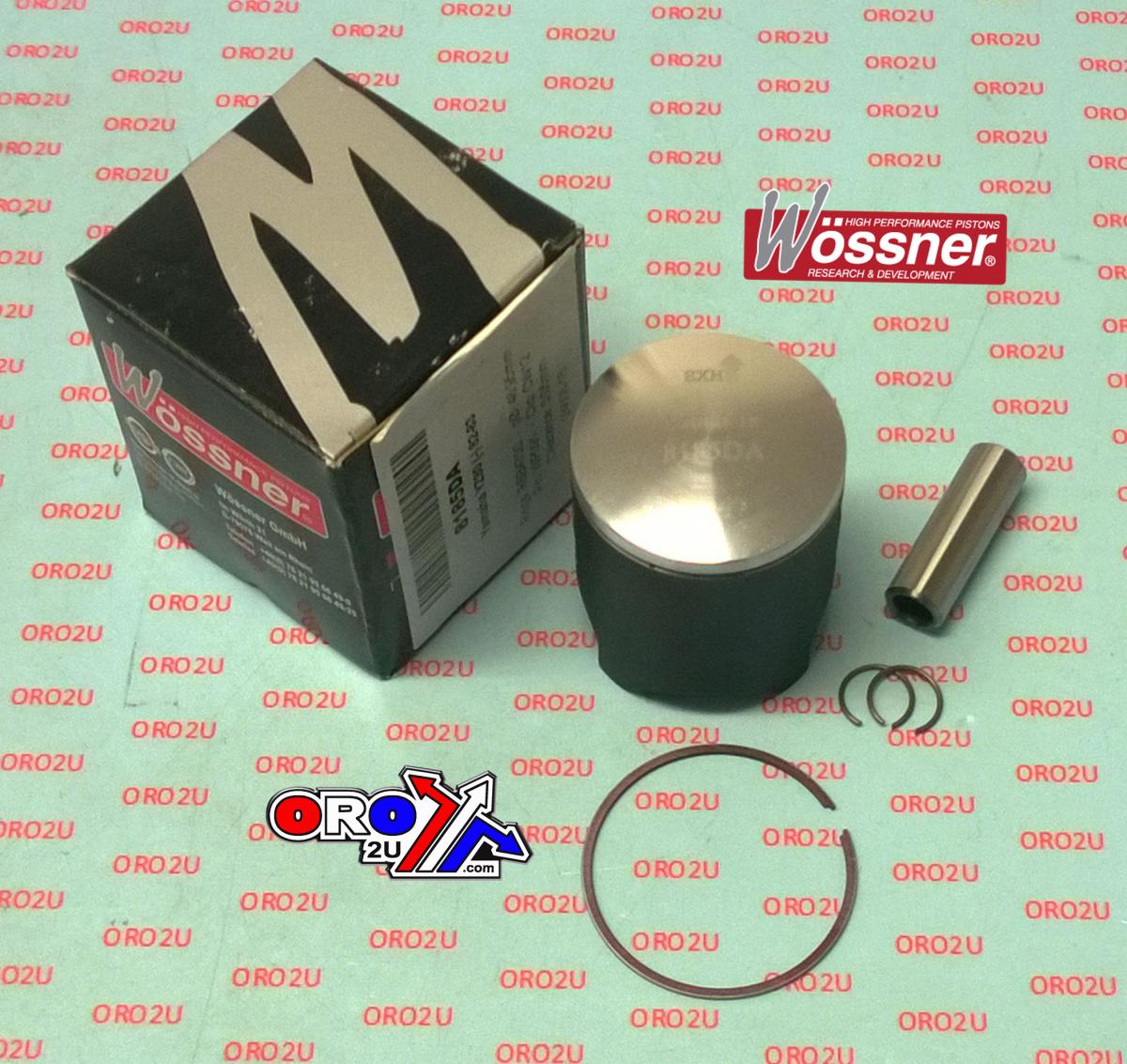

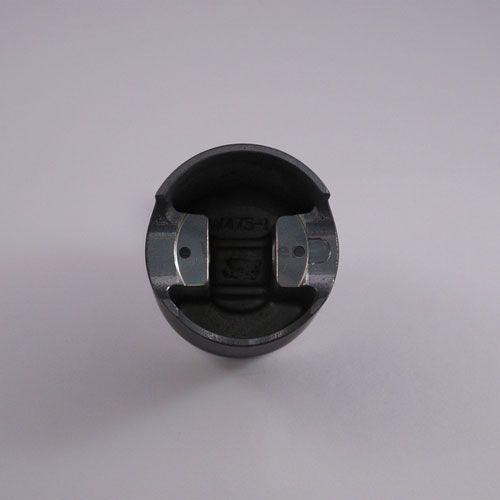

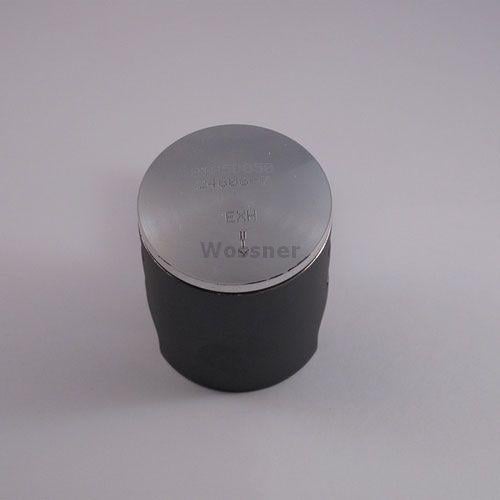

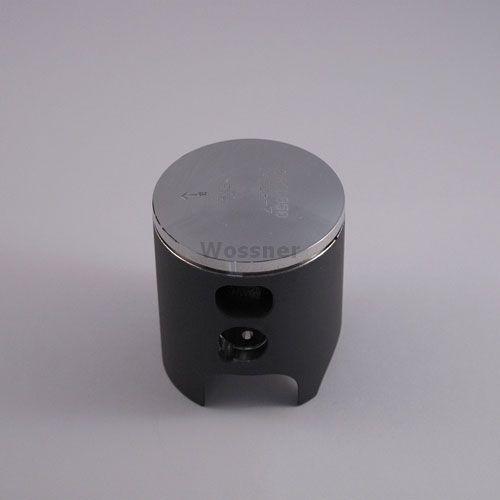

PISTON KIT 82-83 YZ80 49.00, FORGED WOSSNER 8185D200
£74.99 GBP
Taxes included.
Wossner forged piston kit designed for durability and optimized heat transfer. Engineered with an elliptical shape for uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for high performance and reliability.
Features
- Forged construction for superior strength and longevity
- Optimized heat transfer for efficient combustion
- Elliptical design for even thrust load distribution
- Manufactured in Germany
Specifications
- Piston Size: 48.95mm
- Bore: 49mm
- Display: 79 cm³
- Stroke: 55.50mm
- Clearance: 0.05mm
- Compression Ratio: OEM (11.10:1)
- Dome Volume: -0.20 cm³
- Compression Height: 22.80mm
- Lock Part Number: CW12
- Pin Part Number: WP091
- Ring Set Part Number: RSB4900
Cross-Reference OEM Part Numbers
- Wossner 8185D200
Vehicle Fitments
- Yamaha YZ80 (1982-1983)
