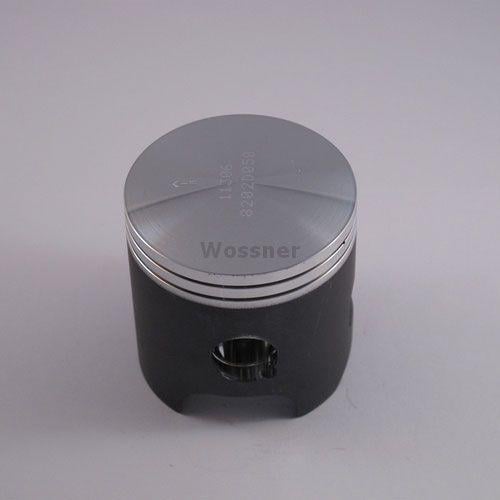

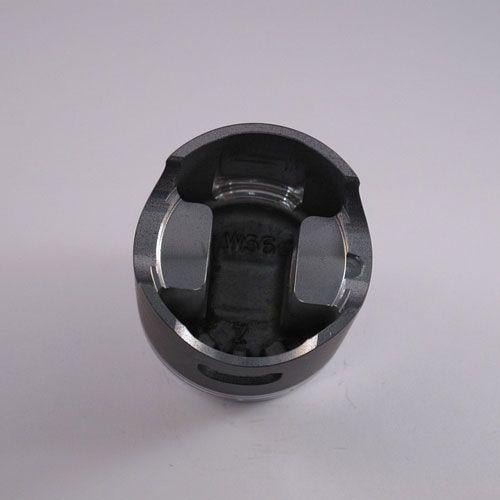

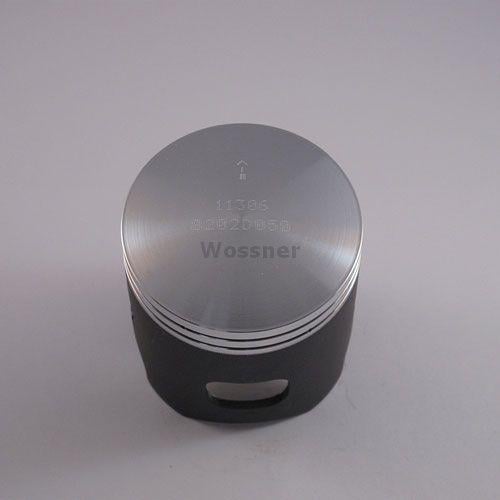

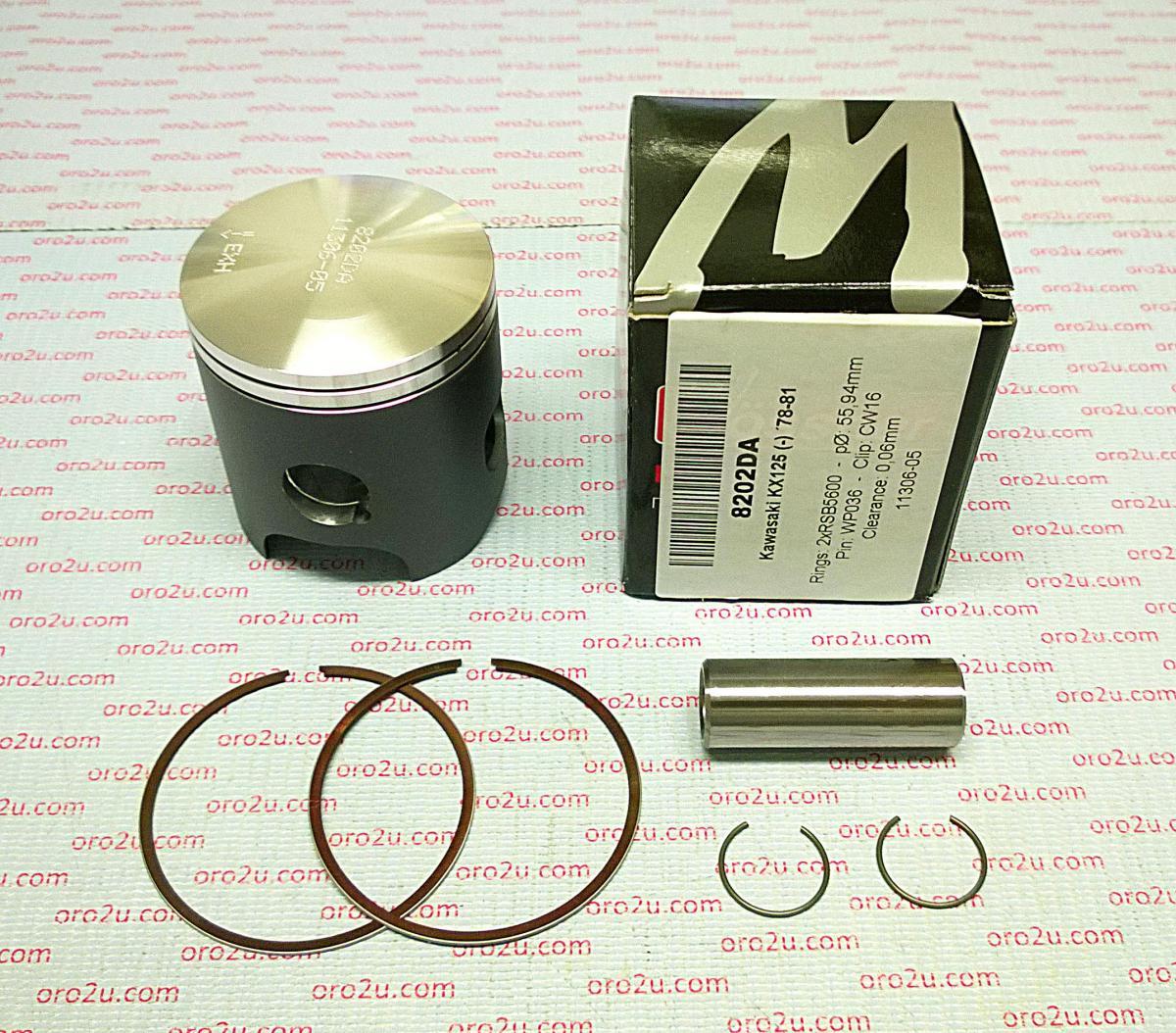

PISTON KIT 78-81 KX125 56.50, FORGED WOSSNER 8202D050

Wossner forged piston kit designed for Kawasaki KX125 models from 1978 to 1981. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.

Features

• Forged construction for enhanced durability and strength
• Optimized heat transfer for improved performance
• Elliptical design for uniform bearing surface and reduced wear
• Designed for 2-stroke engines

Specifications

• Bore Size: 56.50 mm
• Actual Bore: 56.44 mm
• Stroke: 50.50 mm
• Clearance: 0.06 mm
• Compression Height: 29.70 mm
• Compression Ratio: 2-stroke
• Displacement: 125 cm³
• Made in Germany

Cross-Reference OEM Part Numbers

• Wossner Part No.: 8202D050
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5650 x 2
• Connecting Rod Kit P/N: P2037
• Other Reference Numbers: Wiseco 438M05650

Vehicle Fitments

• Kawasaki KX125 (1978-1981)
