PISTON KIT 77-81 RM PE250 67.0, FORGED WOSSNER 8194DA 12110-41603
£129.47 GBP
Taxes included.

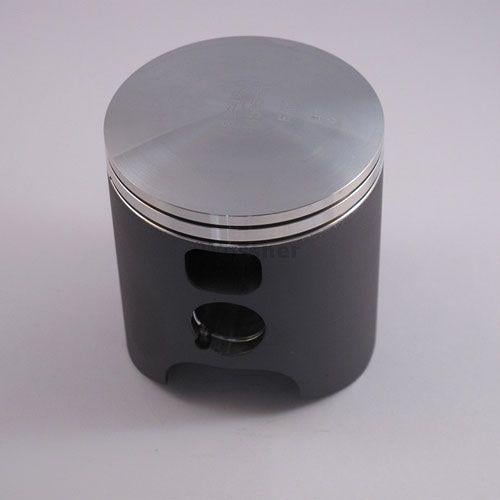

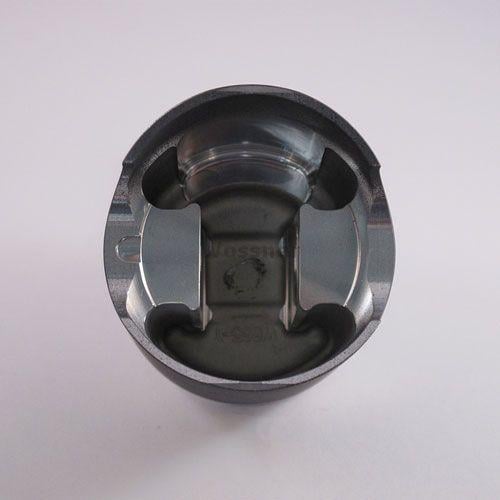

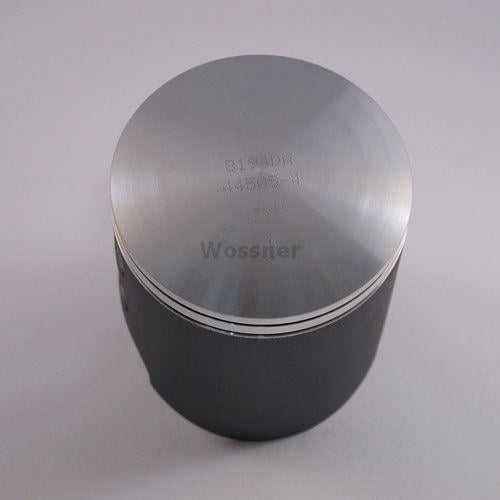

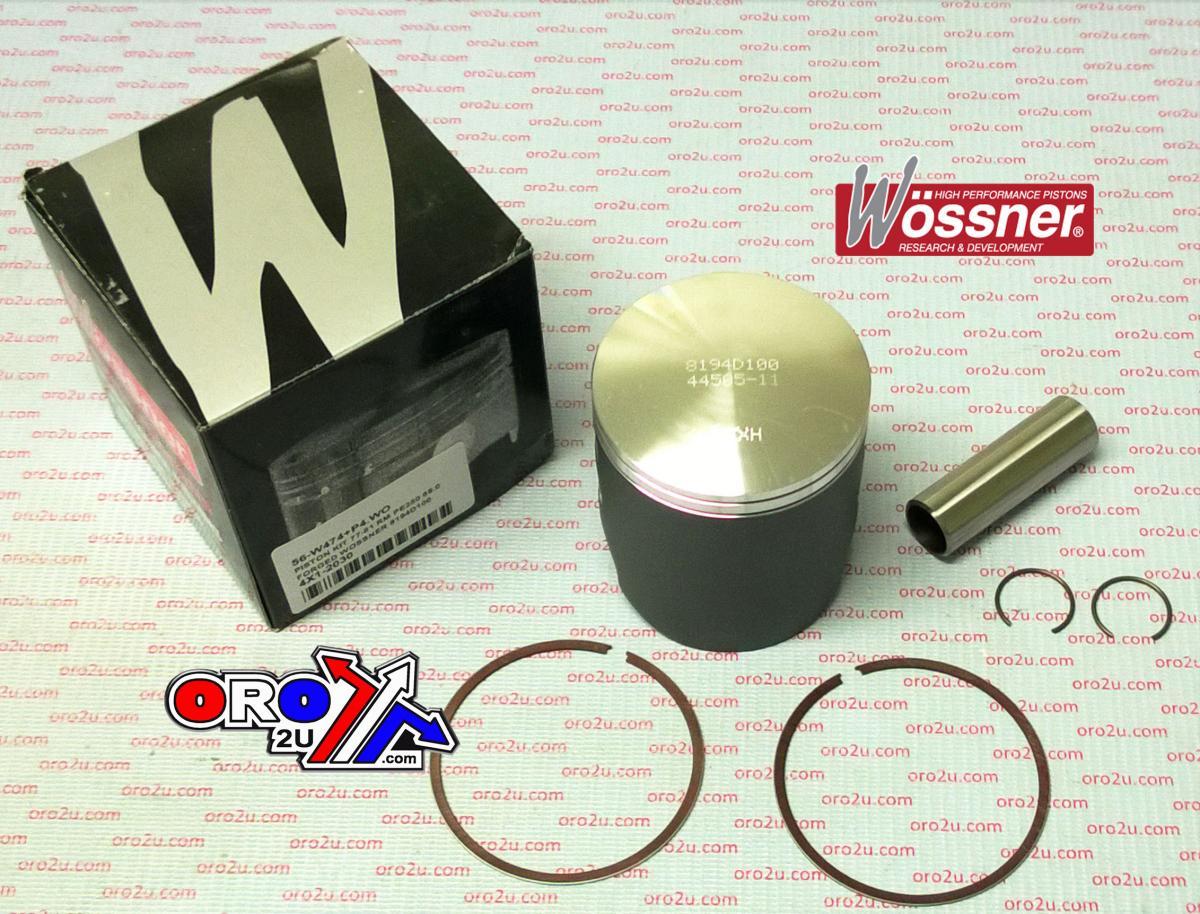

Wossner 67mm Bore Piston Kit (PN# 8194DA) is designed for Suzuki RM250 and PE250 models from 1977 to 1981. This forged piston provides high strength, efficient heat transfer, and durability. Its elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this piston meets OEM compression standards.
Features
- High-strength forged piston for durability and performance
- Optimized heat transfer for efficient combustion
- Elliptical design prevents piston collapse and ensures even load distribution
- Manufactured in Germany
Specifications
- Bore: 67mm
- Actual diameter: 66.94mm
- Display (cm³): 246
- Stroke (mm): 55.50
- Clearance (mm): 0.05
- Compression Ratio: OEM
- OEM Compression Ratio: 11.10:1
- Dome Volume (cm³): -0.20
- Compression Height (mm): 22.80
Cross-Reference OEM Part Numbers
- Lock: CW18
- Pin: WP033
- Ring Set: RSB6700 X 2
- OEM Part Numbers: 12110-41603, 405M06700
Vehicle Fitments
- Suzuki RM250 (1977-1981)
- Suzuki PE250 (1977-1981)
