PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200
  • PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200
  • PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200
PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200

PISTON KIT 77-80 RM125 56.00, FORGED WOSSNER 8192D200

£124.40 GBP
Taxes included. Shipping calculated at checkout.

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.

Features

  • Forged piston for enhanced strength and durability
  • Optimized heat transfer for efficient combustion
  • Elliptical design to prevent piston collapse
  • Manufactured in Germany

Specifications

  • Bore Size: 56.00mm
  • Actual Bore Diameter: 55.94mm
  • Displacement: 123 cm³
  • Stroke: 54.00mm
  • Clearance: 0.06mm
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Dome Volume: -0.30 cm³
  • Compression Height: 30.50mm
  • Theoretical Weight: Not specified

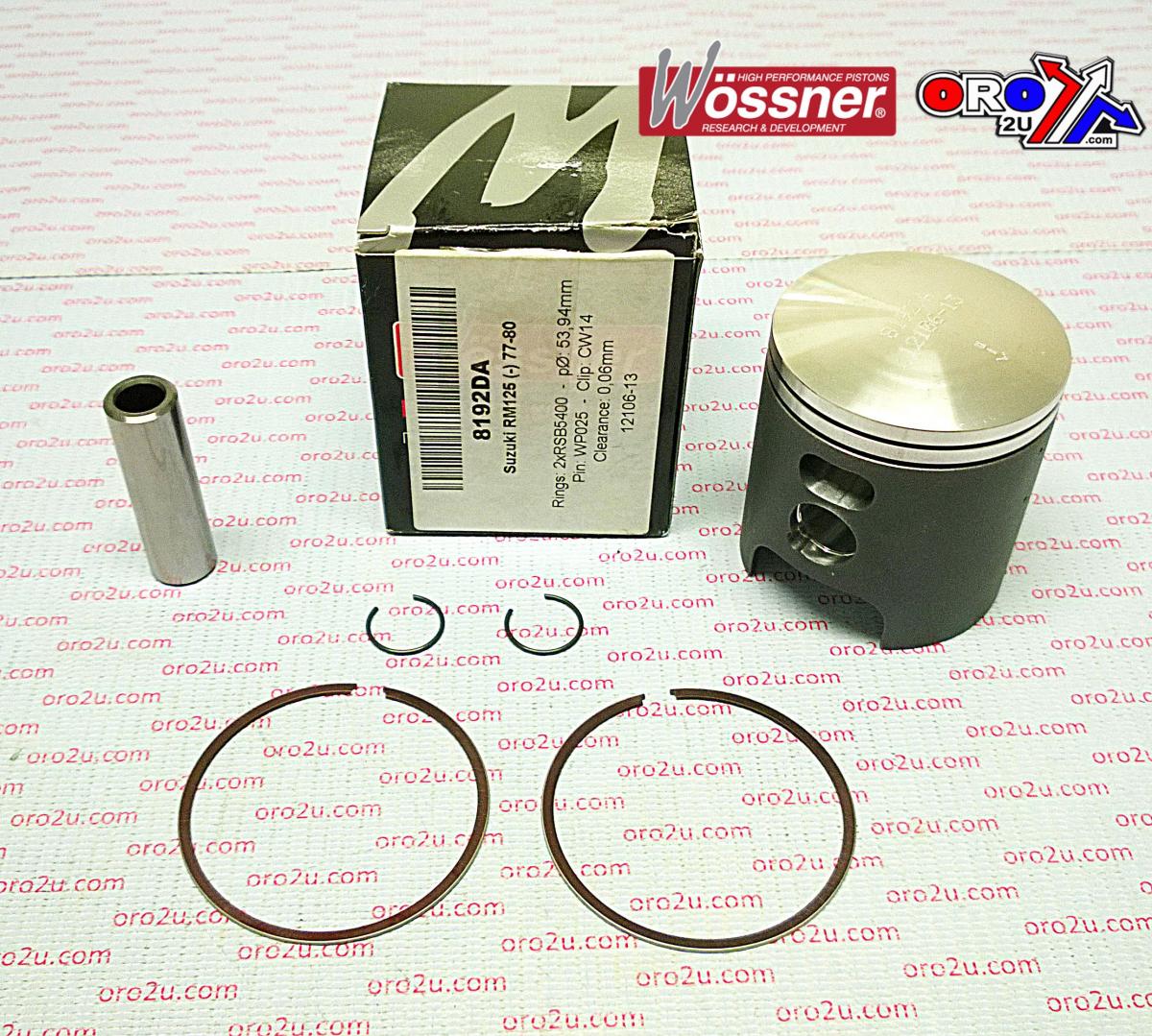

Included Components

  • Lock Part Number: CW14
  • Pin Part Number: WP025
  • Ring Set Part Number: RSB5600 x 2

Vehicle Fitments

  • Suzuki RM125 (1977-1980)
