PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
  • PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100
PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100

PISTON KIT 71-89 TS125 57.00, FORGED WOSSNER 8146D100

£137.13 GBP
Taxes included. Shipping calculated at checkout.

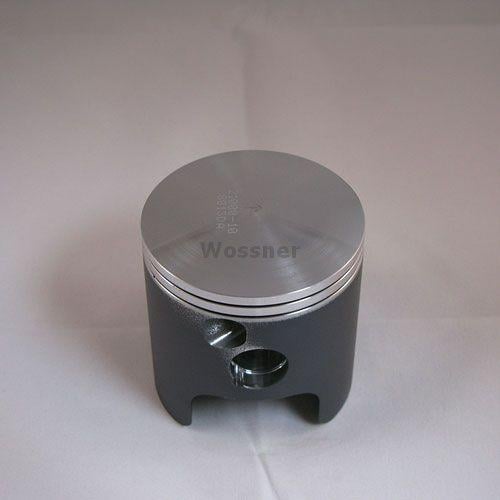

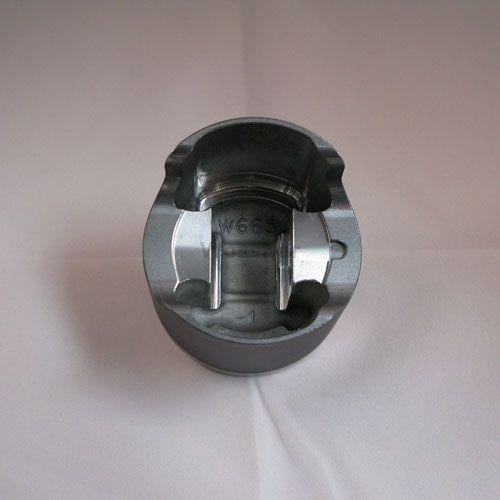

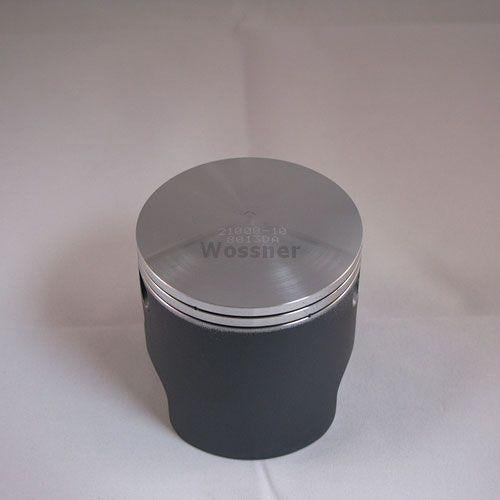

Wossner forged piston kit with a 57.00mm bore and 56.94mm diameter, designed for Suzuki TS125, RV125, TS125ER, and TS125X models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

  • Forged construction for superior strength
  • Optimized heat transfer for efficient combustion
  • Elliptical design for uniform load distribution
  • Manufactured in Germany

Specifications

  • Bore: 57.00mm
  • Diameter: 56.94mm
  • Display (cm³): 125
  • Stroke (mm): 50.00
  • Clearance (mm): 0.06
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Compression Height (mm): 29.00

Cross-Reference OEM Part Numbers

  • Wossner Piston Suzuki TS125 (PN# 8146D100)
  • Lock P/N: CW14
  • Pin P/N: WP025
  • Ring Set P/N: RSB5700 x 2

Vehicle Fitments

  • Suzuki TS125 (1971-1981)
  • Suzuki RV125 (1974-1978)
  • Suzuki TS125ER (1979-1981)
  • Suzuki TS125X (1984-1989)
