PISTON KIT/3 750 TRIPLE 73.00, WOSSNER K8248D200-3 1972-75

The Wossner K8248D200-3 piston kit is a +2.00mm oversize forged piston set developed for Kawasaki 750cc triple-cylinder two-stroke motorcycles from 1972 to 1975. With a 73.00mm bore, this kit is engineered for high durability, optimal heat transfer, and reliable performance in classic high-output engines. Made in Germany, the set includes three pistons and all essential components for installation.

Features

• Forged high-performance pistons with PTFE-coated skirts

• Elliptical design provides even load distribution and consistent thermal expansion

• Engineered for efficient combustion chamber heat transfer to cylinder walls

• Manufactured from 4032 T6 alloy for precise piston-to-bore tolerances

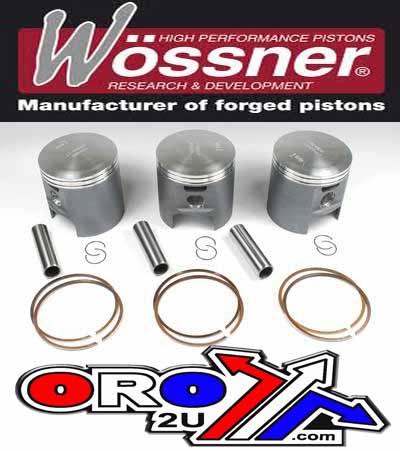

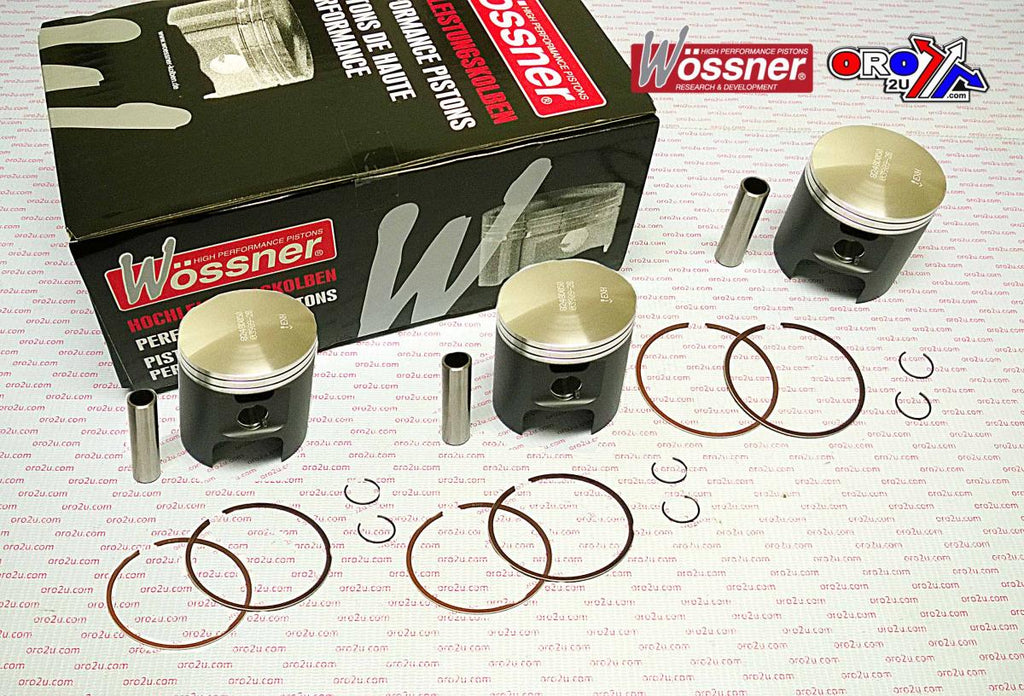

• Includes piston pins, clips, and rings

Specifications

• Bore size: 73.00mm (+2.00mm oversize)

• Measured bore: 72.93mm

• Display displacement: 747 cm³

• Stroke: 63.00mm

• Clearance: 0.07mm

• Compression height: 32.00mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9868.200.WO

• Clip: CW16

• Piston Pin: WP027

• Ring Set: RSB7300 x 2 per piston

Vehicle Fitments

• Kawasaki 750 Mach IV 1972–1975

• Kawasaki H2 750 Triple Cylinder 1972–1975
