PISTON KIT/3 750 TRIPLE 72.50, WOSSNER K8248D150-3 1972-75

PISTON KIT/3 750 TRIPLE 72.50, WOSSNER K8248D150-3 1972-75

£395.64 GBP
Taxes included.

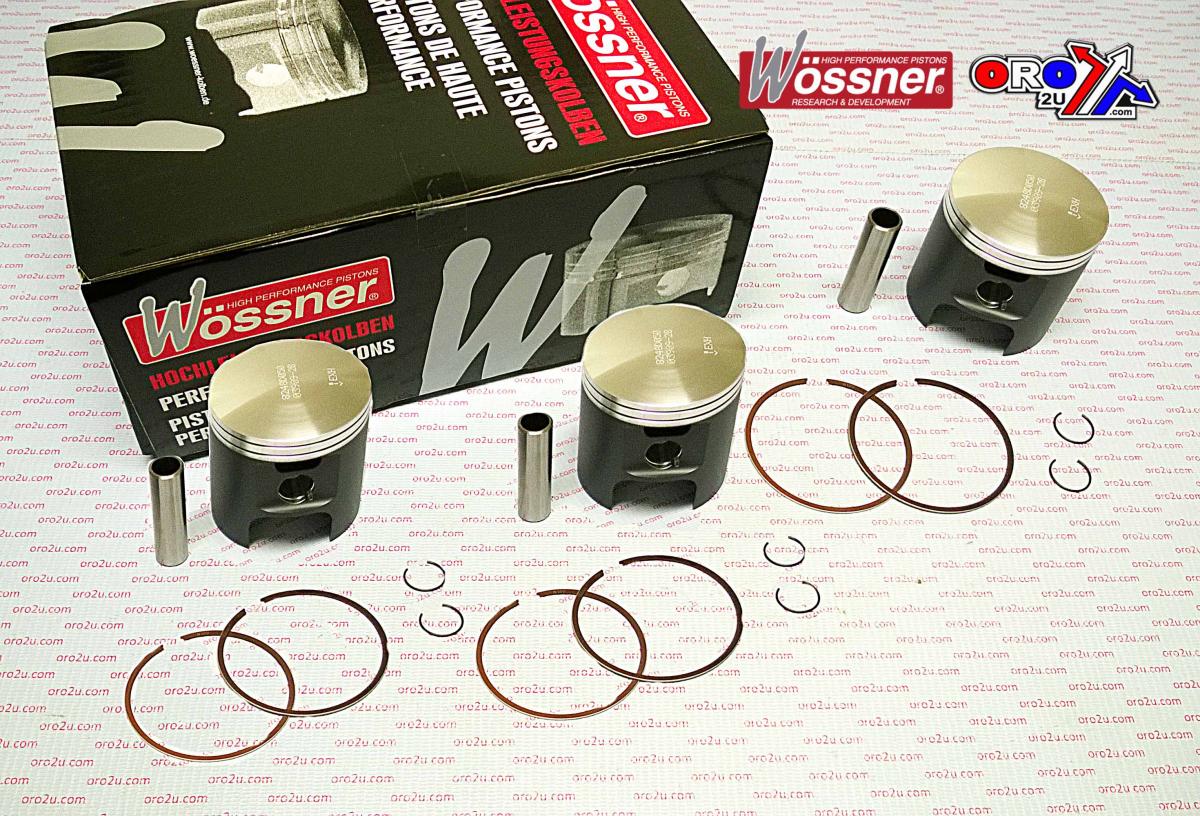

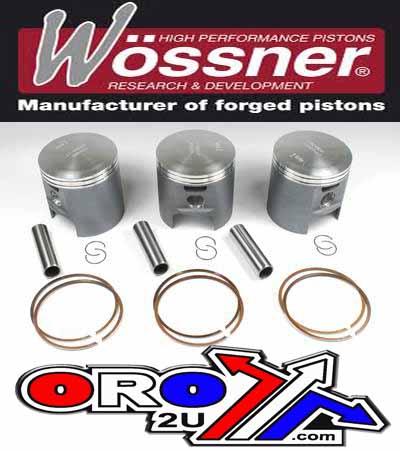

The Wossner K8248D150-3 piston kit is a +1.50mm oversize forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles manufactured between 1972 and 1975. Featuring a 72.50mm bore, this kit provides durable performance and optimised heat transfer for classic high-output engines. Manufactured in Germany, it includes three pistons along with all required installation components.

Features

  • Forged high-performance pistons with PTFE-coated skirts

  • Elliptical design promotes uniform load distribution and thermal expansion

  • Enhanced combustion chamber heat transfer to cylinder walls

  • Made from 4032 T6 alloy for close piston-to-bore tolerances

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 72.50mm (+1.50mm oversize)

  • Measured bore: 72.43mm

  • Display displacement: 747 cm³

  • Stroke: 63.00mm

  • Clearance: 0.07mm

  • Compression height: 32.00mm

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Quantity: 3 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9868.150.WO

  • Clip: CW16

  • Piston Pin: WP027

  • Ring Set: RSB7250 x 2 per piston

Vehicle Fitments

  • Kawasaki 750 Mach IV 1972–1975

  • Kawasaki H2 750 Triple Cylinder 1972–1975
