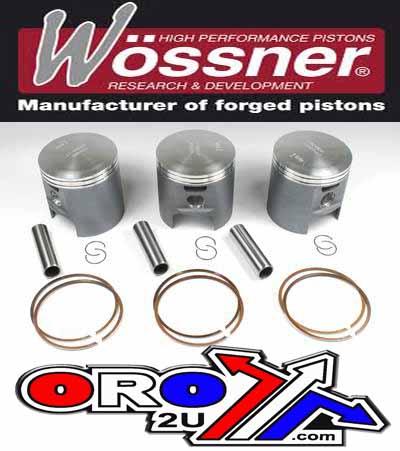

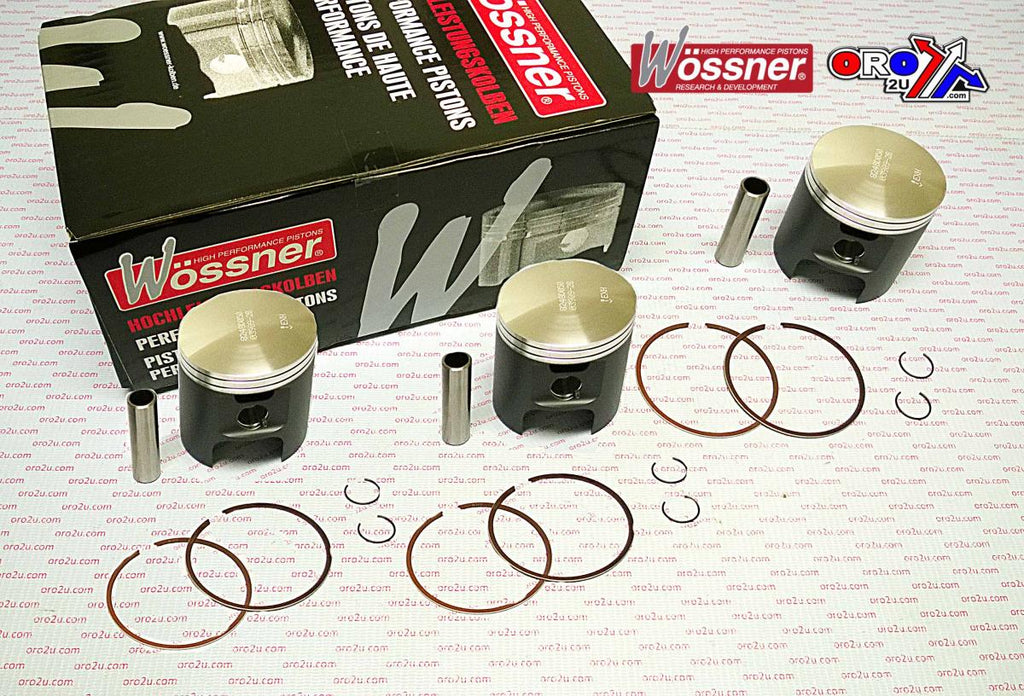

PISTON KIT/3 750 TRIPLE 71.50, WOSSNER K8248D050-3 1972-75

The Wossner K8248D050-3 piston kit is a +0.50mm oversize forged piston set designed for Kawasaki 750cc triple-cylinder two-stroke motorcycles from 1972 to 1975. With a 71.50mm bore and precision construction, this kit delivers durability and efficient thermal performance. Manufactured in Germany, it includes three pistons along with essential installation components.

Features

• Forged high-performance pistons with PTFE-coated skirts

• Elliptical design provides uniform heat expansion and load distribution

• Engineered for optimal combustion chamber heat transfer to cylinder walls

• Made from 4032 T6 alloy for precise piston-to-bore tolerance

• Includes piston pins, clips, and rings

Specifications

• Bore size: 71.50mm (+0.50mm oversize)

• Measured bore: 71.43mm

• Display displacement: 747 cm³

• Stroke: 63.00mm

• Clearance: 0.07mm

• Compression height: 32.00mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9868.050.WO

• Clip: CW16

• Piston Pin: WP027

• Ring Set: RSB7150 x 2 per piston

Vehicle Fitments

• Kawasaki 750 Mach IV 1972–1975

• Kawasaki H2 750 Triple Cylinder 1972–1975
