PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB
  • PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB
  • PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB
PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB

PISTON KIT 20-23 KTM EXC500, WOSSNER 8976DB

£188.54 GBP
Taxes included.

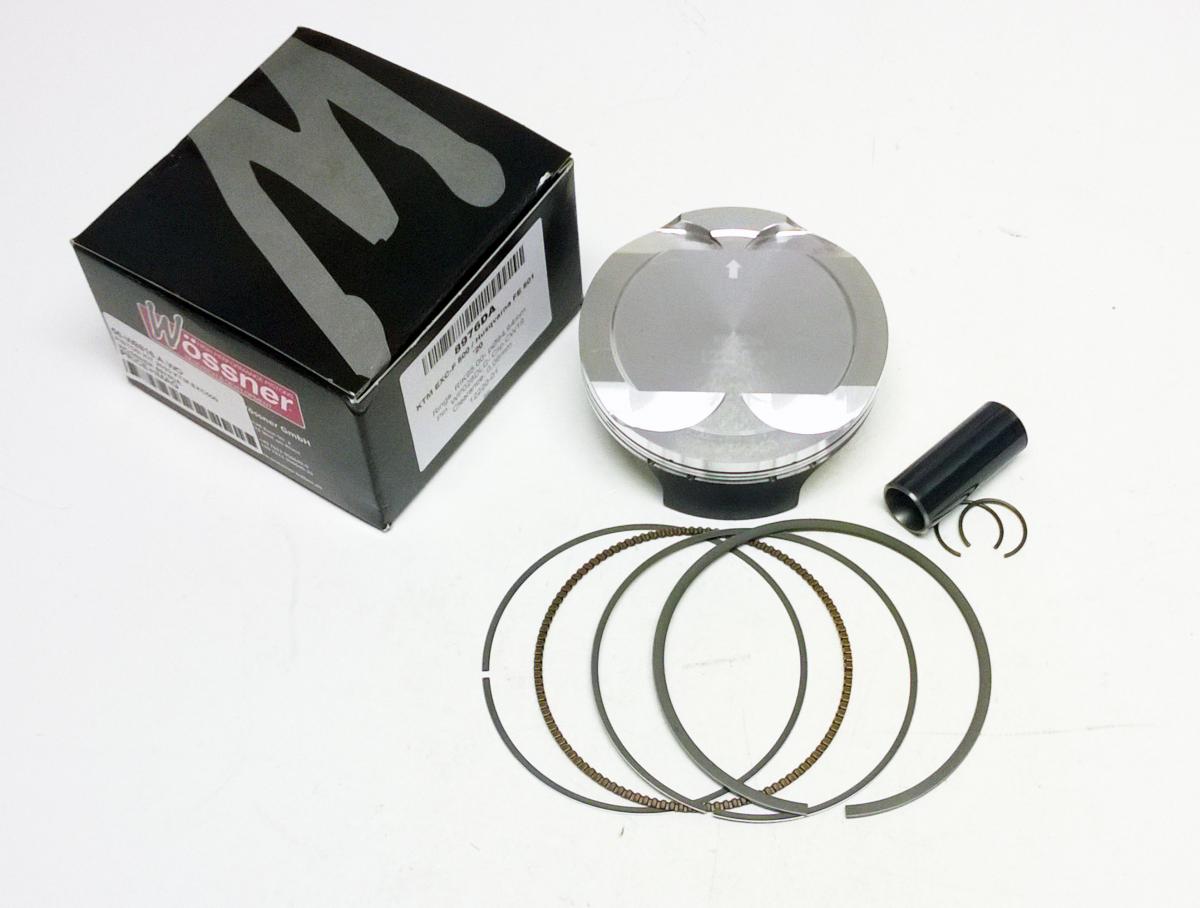

The Wossner Forged Piston Kit (8976DB) with a 95mm bore (actual size 94.95mm) is designed for KTM, Husqvarna, and GASGAS 500cc models from 2020 to 2023. This high-performance forged piston, made in Germany, features an elliptical profile for even load distribution and efficient heat transfer. Note that it is not compatible with 2024–2025 models; refer to Wossner 4100 for those applications.

Features

  • Forged construction for maximum strength and reliability

  • Designed for effective heat transfer from combustion chamber to cylinder walls

  • Elliptical skirt profile ensures uniform load distribution and prevents piston collapse

  • Manufactured in Germany

Specifications

  • Piston Size: 95mm (STD)

  • Actual Size: 94.95mm

  • Dome Volume: -5.69 cm³

  • Compression Height: 22.80mm

  • Theoretical Weight: 227.80g

  • Kit Part Number: 56-W628.B.WO

  • Wossner Part Number: 8976DB

  • Ring Set: RIK95.00

  • Pin: WP028DLC

  • Circlips: CW16

  • Piston Type: Forged

Vehicle Fitments

  • KTM EXC500 (2020–2023)

  • Husqvarna FE501 (2020–2023)

  • GASGAS ECF 500 (2020–2023)

Note

  • Will not fit 2024/2025 models. See Wossner 4100 for updated compatibility.
