PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
  • PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX
PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX

PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX

£103.13 GBP
Taxes included.

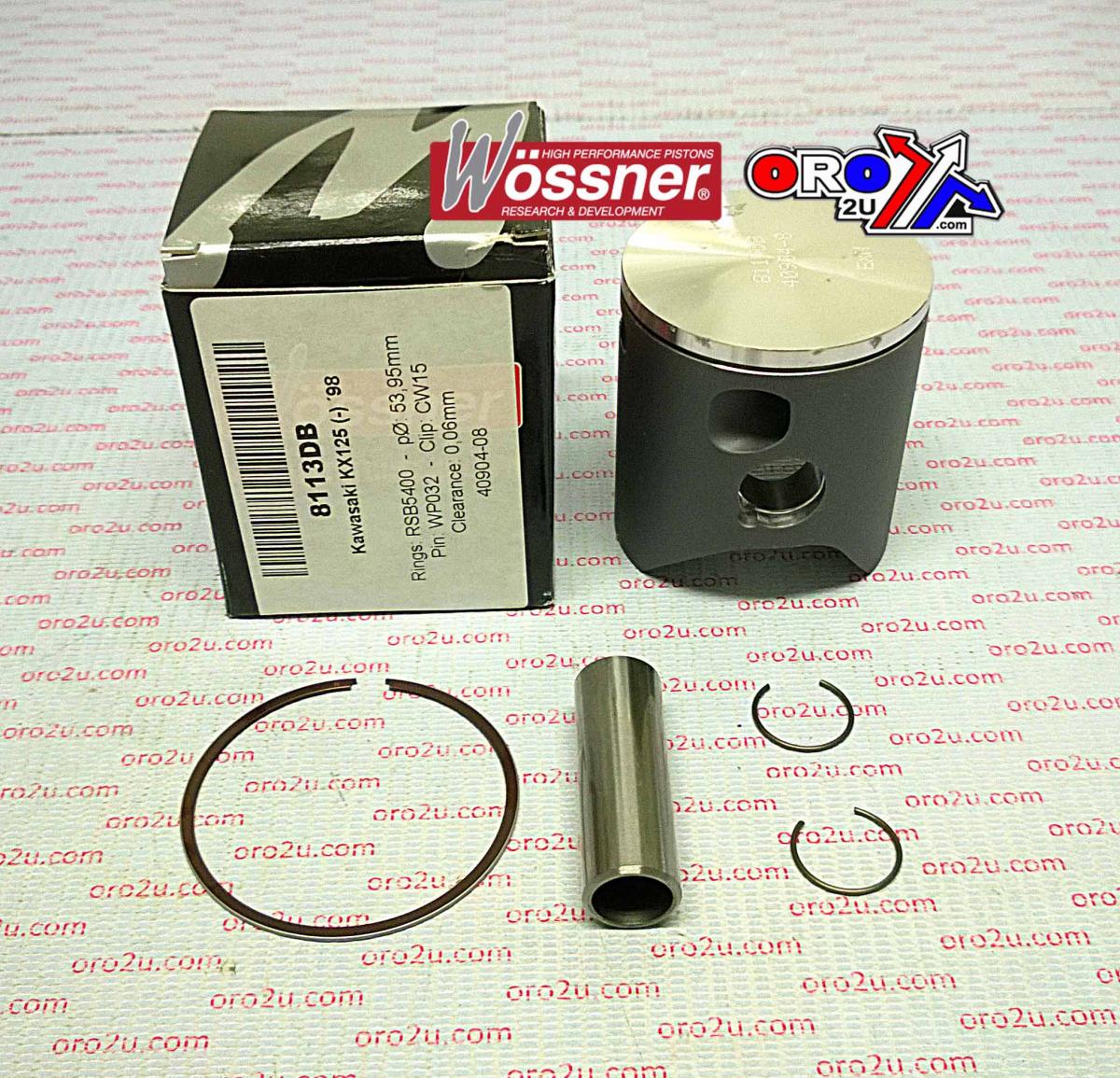

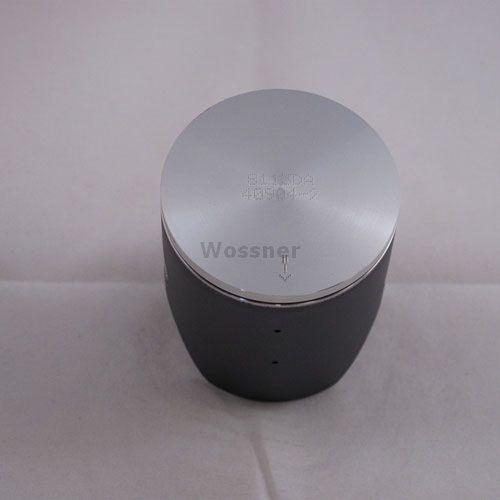

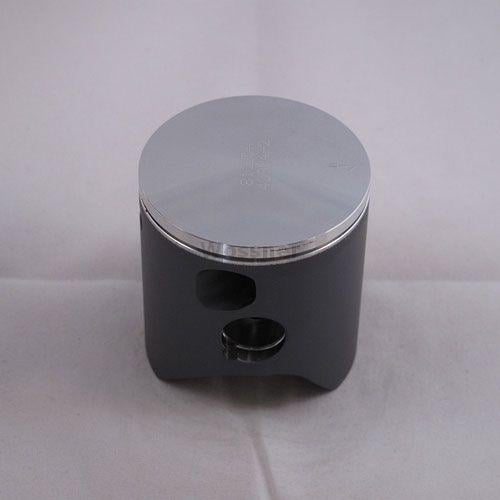

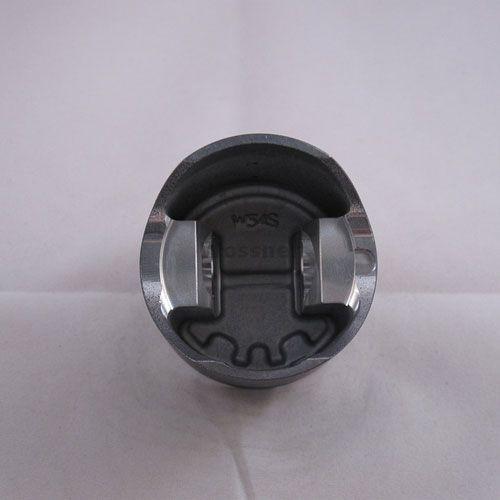

Wossner forged piston kit 8113D200 is a +2.00 oversize piston designed for the 1998 Kawasaki KX125. It features a 56.00 mm bore and 55.94 mm actual piston diameter, delivering reliable performance and durability in high-stress 2-stroke applications. Manufactured in Germany, this piston uses an elliptical design to improve load distribution and prevent deformation under heat expansion.

Features

  • Forged construction for superior strength and wear resistance

  • Elliptical profile minimises localised pressure and prevents piston collapse

  • Optimised thermal conductivity to cylinder walls

  • German precision engineering ensures reliable fit and performance

Specifications

  • Bore Size: 56.00 mm

  • Actual Piston Diameter: 55.94 mm

  • Display (Displacement): 125 cm³

  • Stroke: 54.50 mm

  • Clearance: 0.06 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Compression Height: 29.50 mm

Cross-Reference Component Part Numbers

  • Piston Kit: 8113D200

  • Lock: CW15

  • Pin: WP032

  • Ring Set: RSB5600

  • Rod: P2034

Vehicle Fitments

  • 1998 Kawasaki KX125
