PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
  • PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507
PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507

PISTON KIT 1998 KX125 54.00 A, WOSSNER 8113DA KAWASAKI MX 13001-1507

£103.13 GBP
Taxes included.

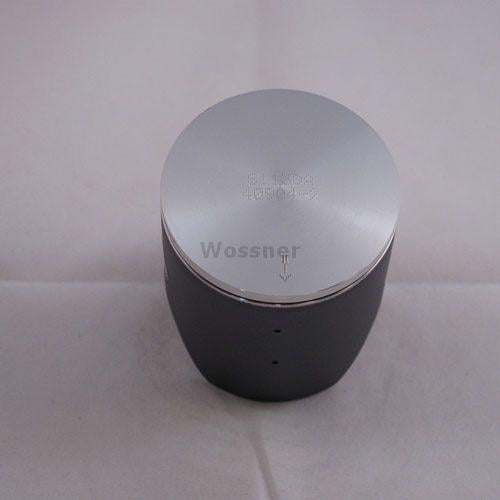

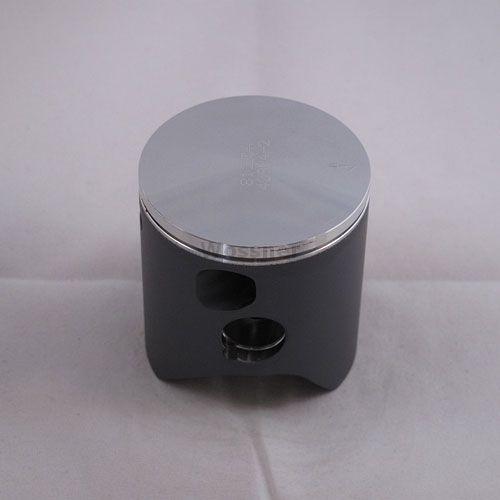

Wossner forged piston kit 8113DA is a standard size (STD) piston designed for the 1998 Kawasaki KX125. With a 54.00 mm bore and 53.94 mm actual piston diameter, this German-engineered piston offers high durability, efficient heat transfer, and balanced mechanical performance through its forged construction and elliptical profile. It is tailored specifically for 2-stroke engine demands.

Features

  • Forged piston construction for increased strength and resistance to wear

  • Elliptical shape distributes pressure evenly, reducing the risk of piston collapse

  • Optimised combustion heat transfer to cylinder walls

  • Precision-manufactured in Germany

Specifications

  • Bore Size: 54.00 mm

  • Actual Piston Diameter: 53.94 mm

  • Display (Displacement): 125 cm³

  • Stroke: 54.50 mm

  • Clearance: 0.06 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Compression Height: 29.50 mm

Cross-Reference OEM Part Numbers

  • 13001-1507

  • 719M05400

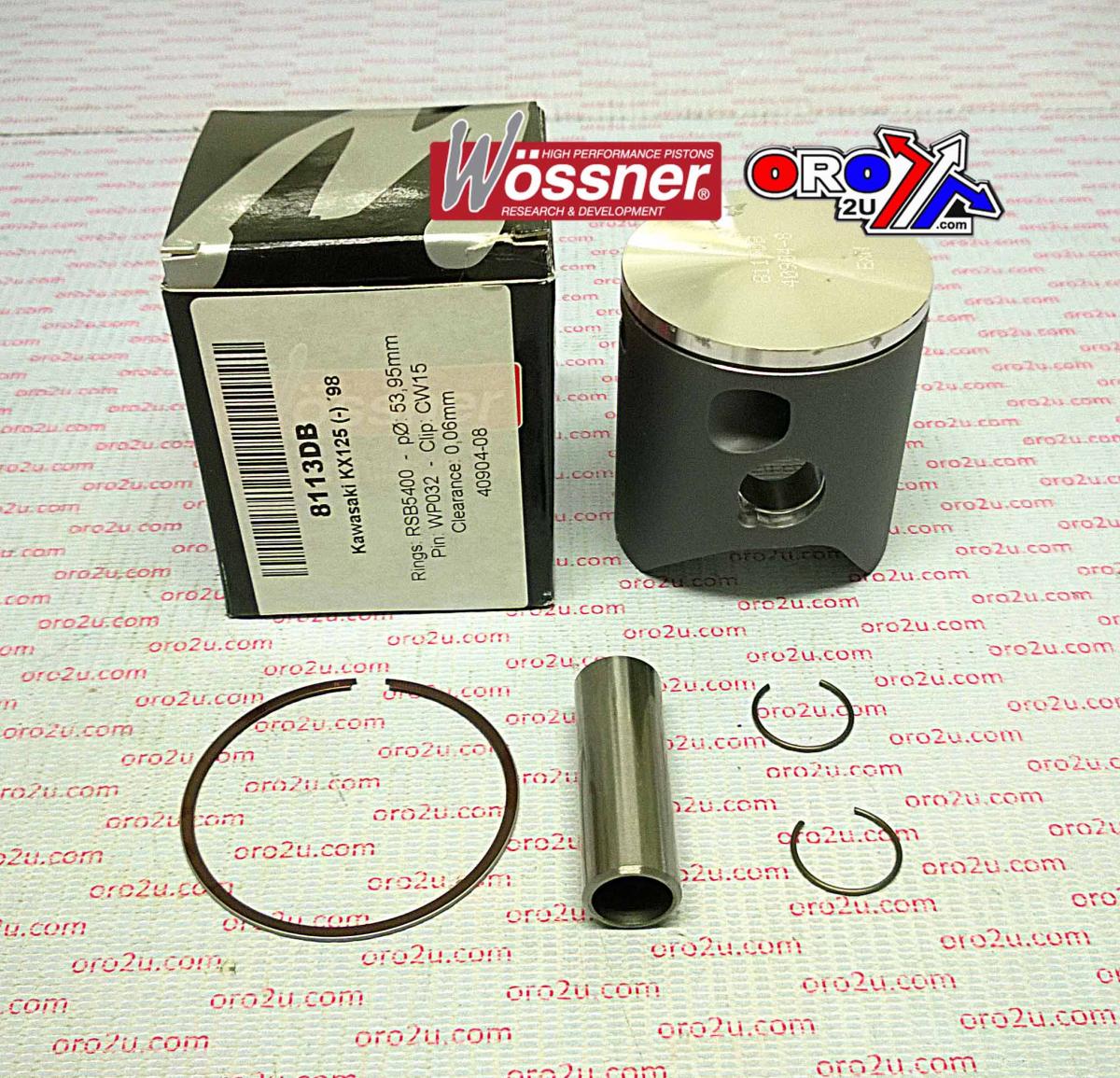

Cross-Reference Component Part Numbers

  • Piston Kit: 8113DA

  • Lock: CW15

  • Pin: WP032

  • Ring Set: RSB5400

  • Rod: P2034

Vehicle Fitments

  • 1998 Kawasaki KX125
