PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
  • PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0
PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0

PISTON KIT 1986 RM250 67.00, WOSSNER 8158DA SUZUKI MX, 12110-00B24-0F0

£152.54 GBP
Taxes included. Shipping calculated at checkout.

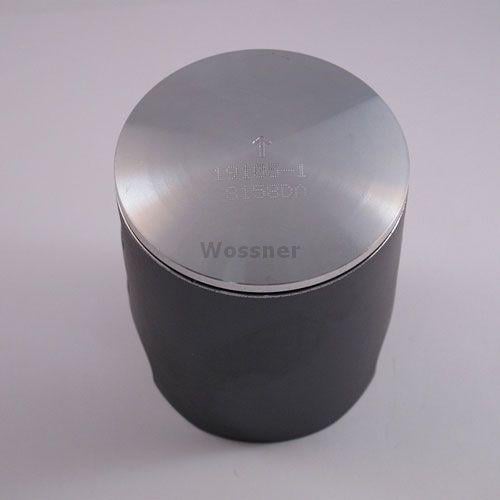

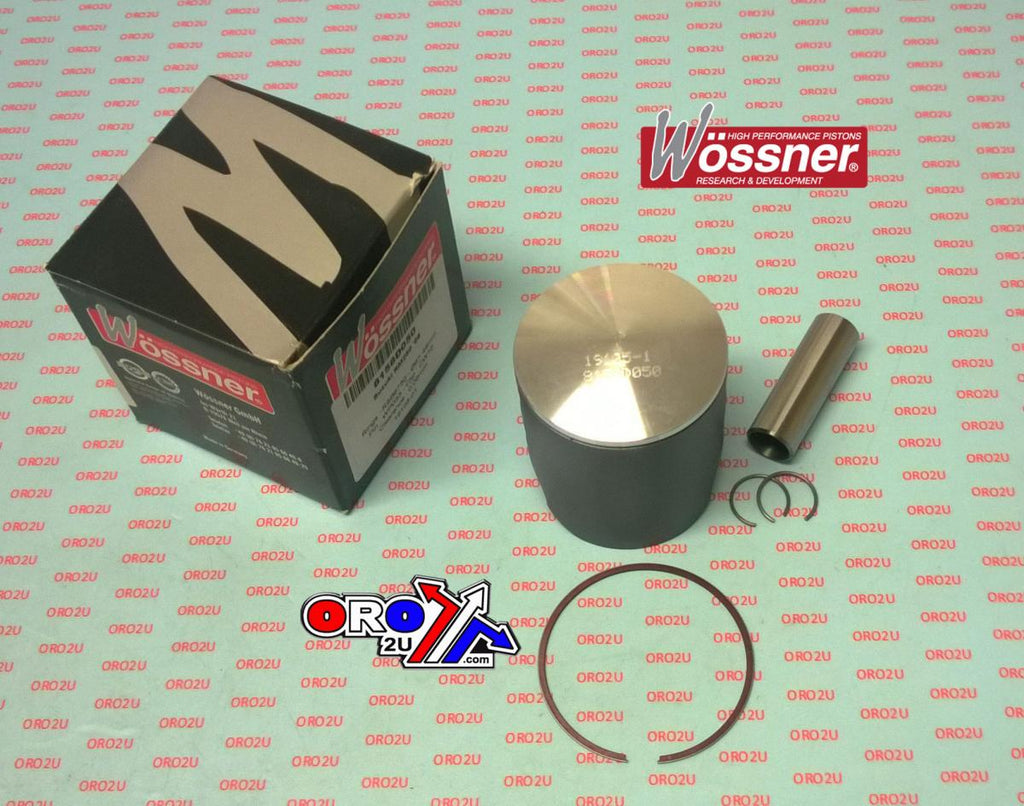

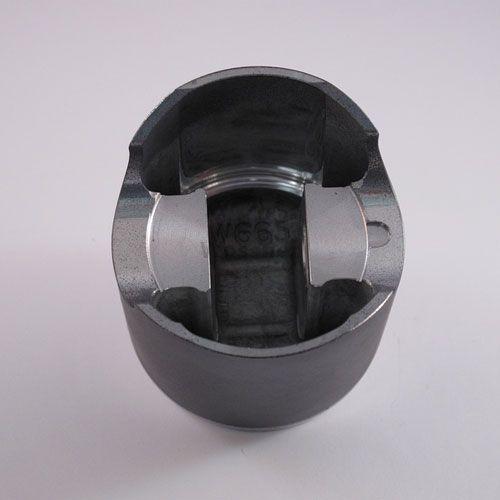

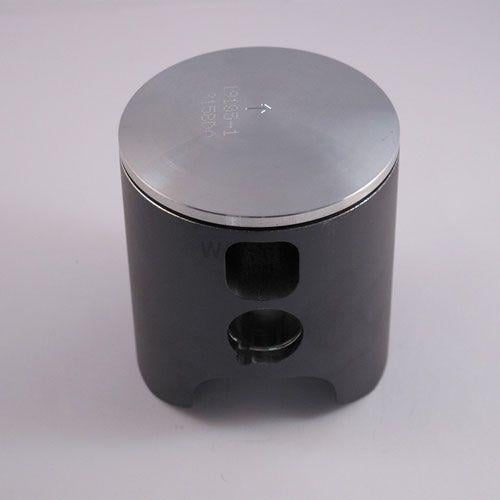

This Wossner piston kit features a 67mm bore size (66.94mm actual) and is designed for the Suzuki RM250 model year 1986. Forged in Germany, this piston offers high strength and thermal performance. The elliptical profile ensures a uniform bearing surface under expansion, distributing loads evenly and helping prevent piston failure due to localised stress.

Features

  • Forged construction for high durability

  • Elliptical design minimises localised pressure under heat

  • Efficient thermal transfer to cylinder walls

  • Manufactured in Germany

Specifications

  • Bore Size: 67mm (66.94mm)

  • Display: 246 cm³

  • Stroke: 70.00 mm

  • Clearance: 0.06 mm

  • Compression Height: 37.00 mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

  • Piston Kit: 8158DA

  • Lock: CW18

  • Pin: WP033

  • Ring Set: RSB6700

  • Part No.: 56-W543+000.WO

  • OEM: 12110-00B24-0F0

  • Cross Reference: 543M06800

Vehicle Fitments

  • Suzuki RM250 1986
