PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150
  • PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150
  • PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150
  • PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150
  • PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150
PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150

PISTON KIT 1984 KTM250 72.50, WOSSNER 8050D150

£158.27 GBP
Taxes included. Shipping calculated at checkout.

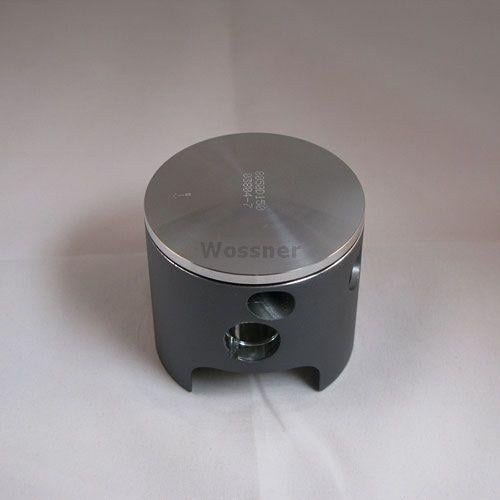

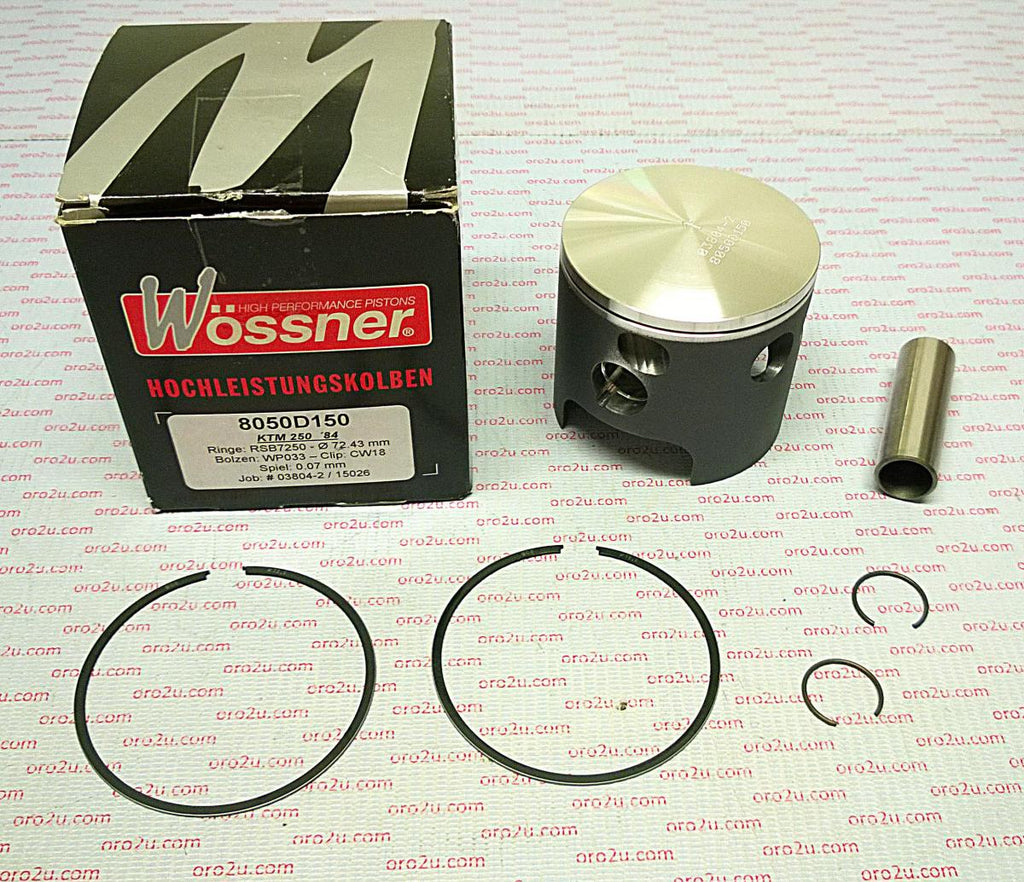

Wossner forged piston kit designed for KTM MX 250, MXC 250, GS 240, and GS 250 models with a 72.50mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

  • Forged construction for superior strength and durability
  • Optimized heat transfer for improved engine performance
  • Elliptical design ensures even pressure distribution, reducing localized stress
  • Manufactured in Germany for high-quality performance

Specifications

  • Bore Size: 72.50mm
  • Actual Bore: 72.43mm
  • Displacement: 429 cm³
  • Stroke: 61.30mm
  • Clearance: 0.07mm
  • Compression Ratio: 2-Stroke
  • Compression Height: 30.00mm
  • Lock Part Number: CW18
  • Pin Part Number: WP033
  • Ring Set Part Number: RSB7250

Cross-Reference OEM Part Numbers

  • Wossner Piston Part Number: 8050D150

Vehicle Fitments

  • KTM MX 250 (1984)
  • KTM MXC 250 (1984)
  • KTM GS 240 (1984)
  • KTM GS 250 (1984)
