PISTON KIT 1983 IT250 68.00, FORGED WOSSNER 8175DA
£129.75 GBP
Taxes included.

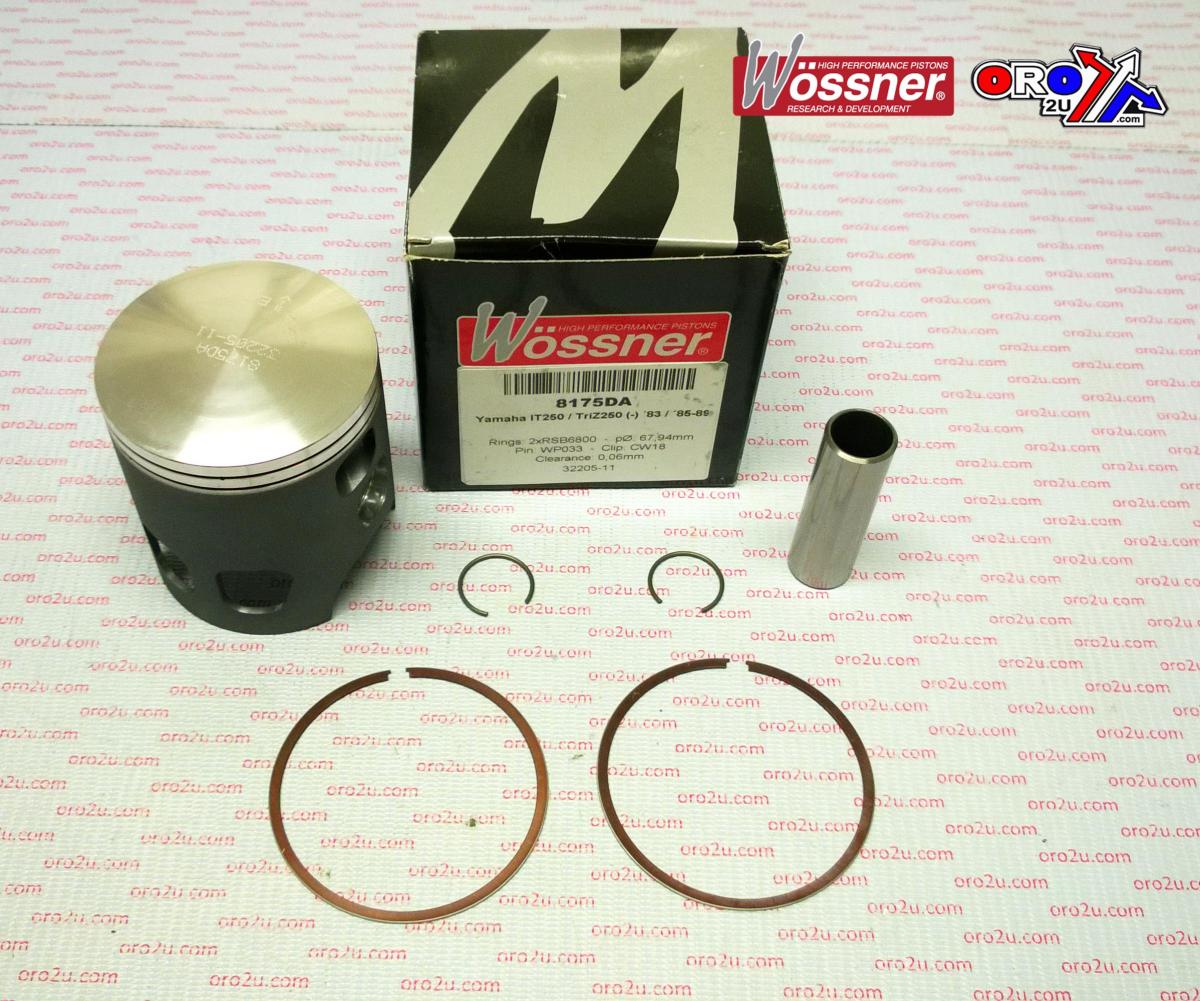

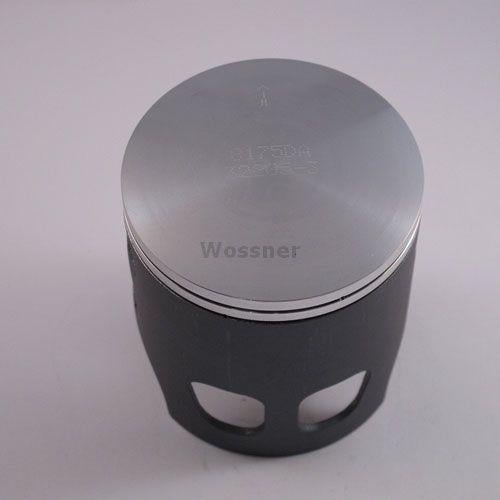

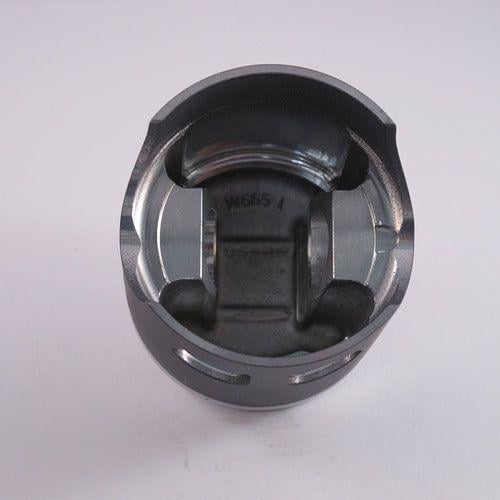

Wossner Piston Kit - 8175DA (STD) is a high-quality forged piston designed for Yamaha IT250 and Tri-Z 250 models. Manufactured in Germany, this piston is engineered for optimal heat transfer and uniform bearing surface distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged piston for superior strength and durability
- Engineered for optimal combustion chamber heat transfer
- Elliptical design for uniform bearing surface and reduced piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 68.00mm
- Actual Bore Diameter: 67.94mm
- Display (cm³): 246
- Stroke (mm): 68.00
- Clearance (mm): 0.06
- Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Compression Height (mm): 35.80
Included Items
- Lock (Part No. CW18)
- Wrist Pin (Part No. WP033)
- Ring Set (Part No. RSB6800 x 2)
Cross-Reference OEM Part Numbers
- 8175DA
Vehicle Fitments
- 1983 Yamaha IT250
- 1985 Yamaha Tri-Z 250
- 1986 Yamaha Tri-Z 250
- 1987 Yamaha Tri-Z 250
- 1988 Yamaha Tri-Z 250
- 1989 Yamaha Tri-Z 250
