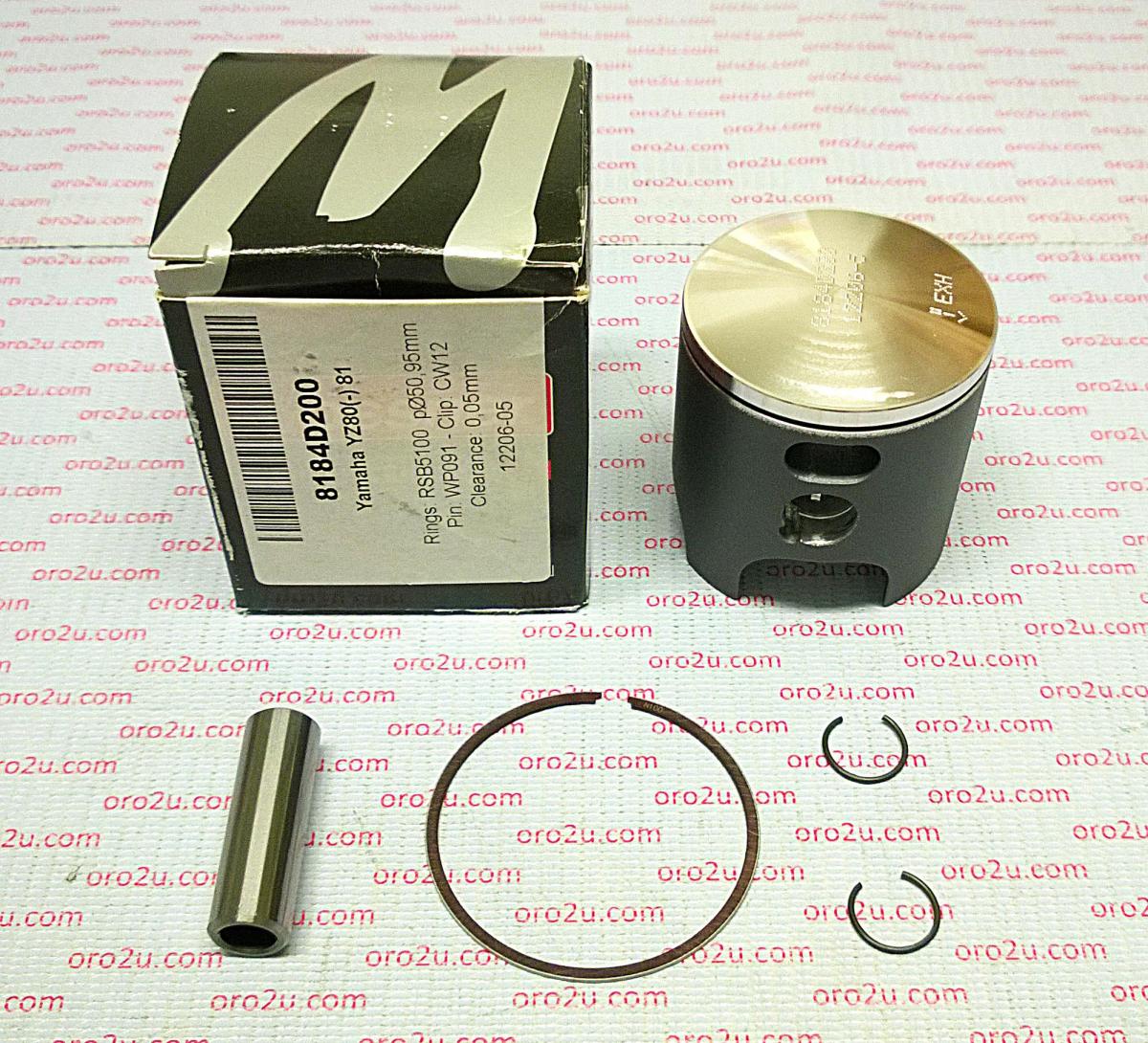

PISTON KIT 1981 YZ80 49.00mm, FORGED WOSSNER 8184DA 527-11633-00-00
£74.99 GBP
Taxes included.

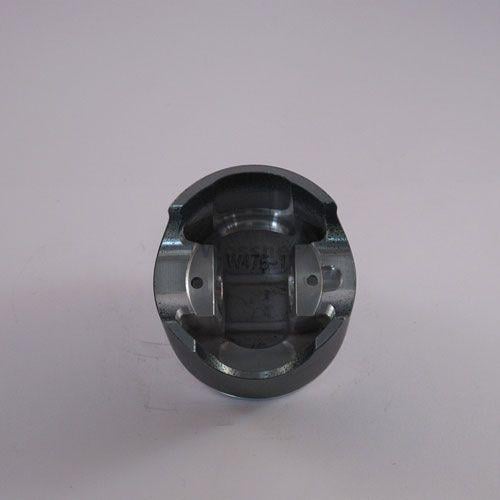

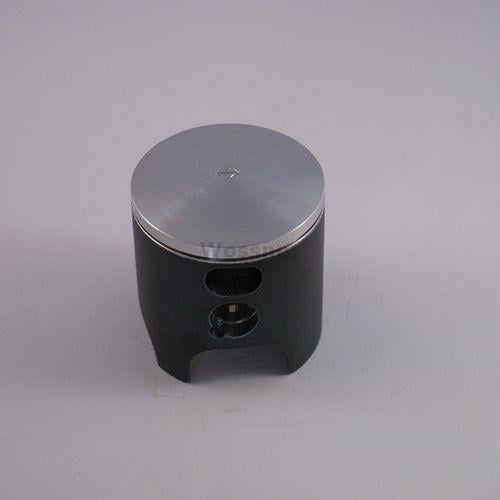

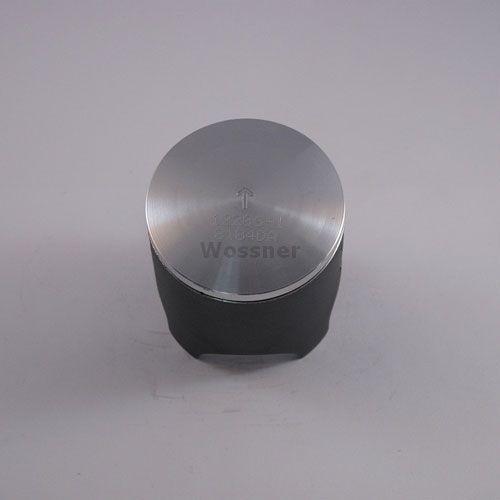

The Wossner 49mm Bore Piston Kit (Part No. 8184DA) is a high-performance forged piston designed for the 1981 Yamaha YZ80. Engineered for durability and efficient heat transfer, it features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston is designed specifically for two-stroke engines.
Features
- High-strength forged piston construction
- Optimized heat transfer for improved combustion efficiency
- Elliptical design for even thrust load distribution
- Designed for two-stroke applications
- Manufactured in Germany
Specifications
- Bore Size: 49mm
- Actual Bore Diameter: 48.95mm
- Compression Ratio: Two-stroke
- OEM Compression Ratio: Two-stroke
- Displacement: 79cc
- Stroke: 42.00mm
- Clearance: 0.05mm
- Compression Height: 24.20mm
Cross-Reference OEM Part Numbers
- Lock P/N: CW12
- Pin P/N: WP091
- Ring Set P/N: RSB4900
- OEM Part Number: 527-11633-00-00
Vehicle Fitments
- Yamaha YZ80 (1981)
