PISTON KIT 13-14 KX450F 96 HC, WOSSNER 8891DA KAWASAKI 13001-0736

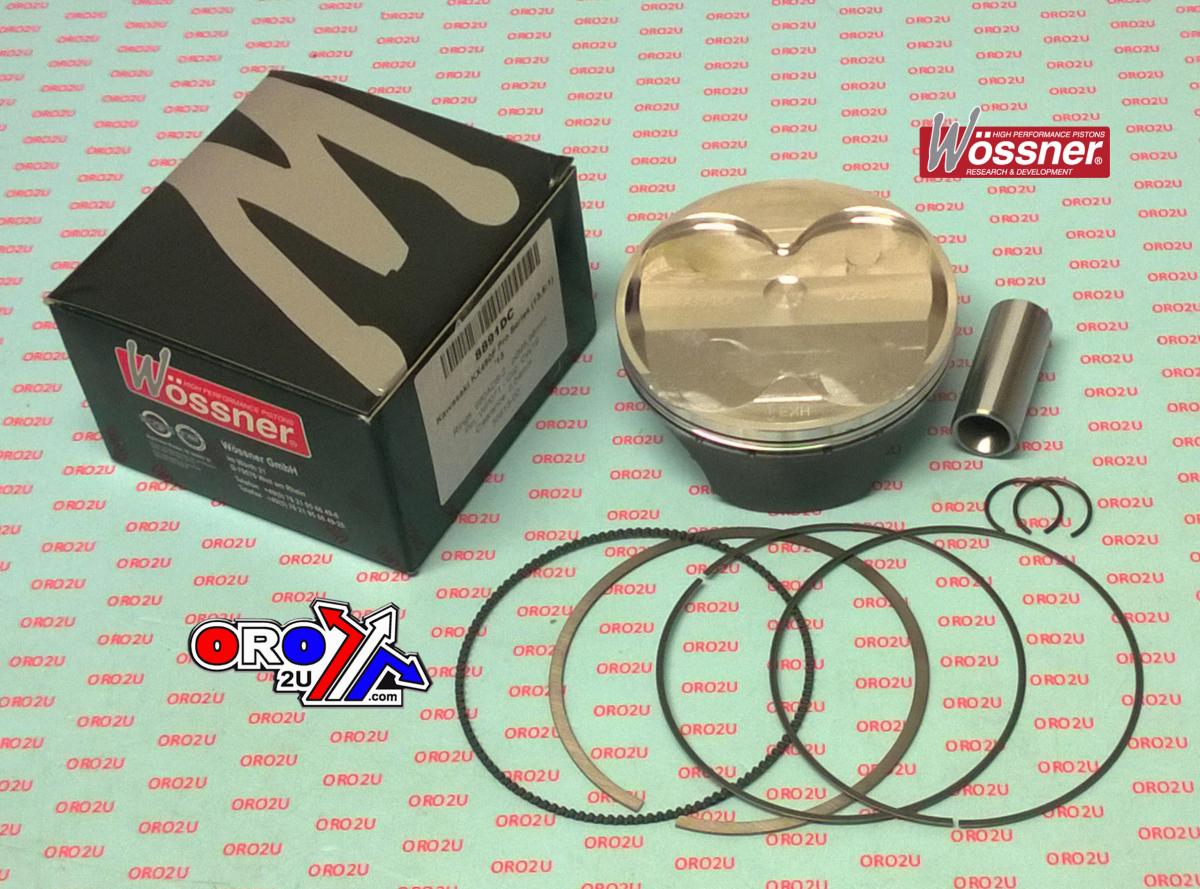

This Wossner forged high-compression piston kit features a 96mm bore size (95.96mm actual) and is a standard high-compression fitment for Kawasaki KX450F models from 2013 to 2014. Precision-engineered in Germany, the piston includes a dome design that increases compression and improves performance. Its elliptical profile ensures even load distribution under heat expansion, contributing to durability and consistent engine response.

Features

• Forged high-compression piston for enhanced power output

• Elliptical design for uniform pressure distribution during thermal expansion

• Optimised for efficient heat transfer and structural integrity

• Manufactured in Germany

Specifications

• Bore Size: 96mm (actual 95.96mm)

• Displacement: 449 cm³

• Stroke: 62.10 mm

• Clearance: 0.04 mm

• Compression Ratio (Wossner): 13.50:1

• Compression Ratio (OEM): 12.50:1

• Dome Volume: +4.20 cm³

• Compression Height: 23.70 mm

• Lock Part Number: CW19

• Pin Part Number: WP071

• Ring Set Part Number: 960ADS-2

• Rod Part Number: P4020

Cross-Reference OEM Part Numbers

• 13001-0736

• 40096M09600

Vehicle Fitments

• 2013 Kawasaki KX450F

• 2014 Kawasaki KX450F
