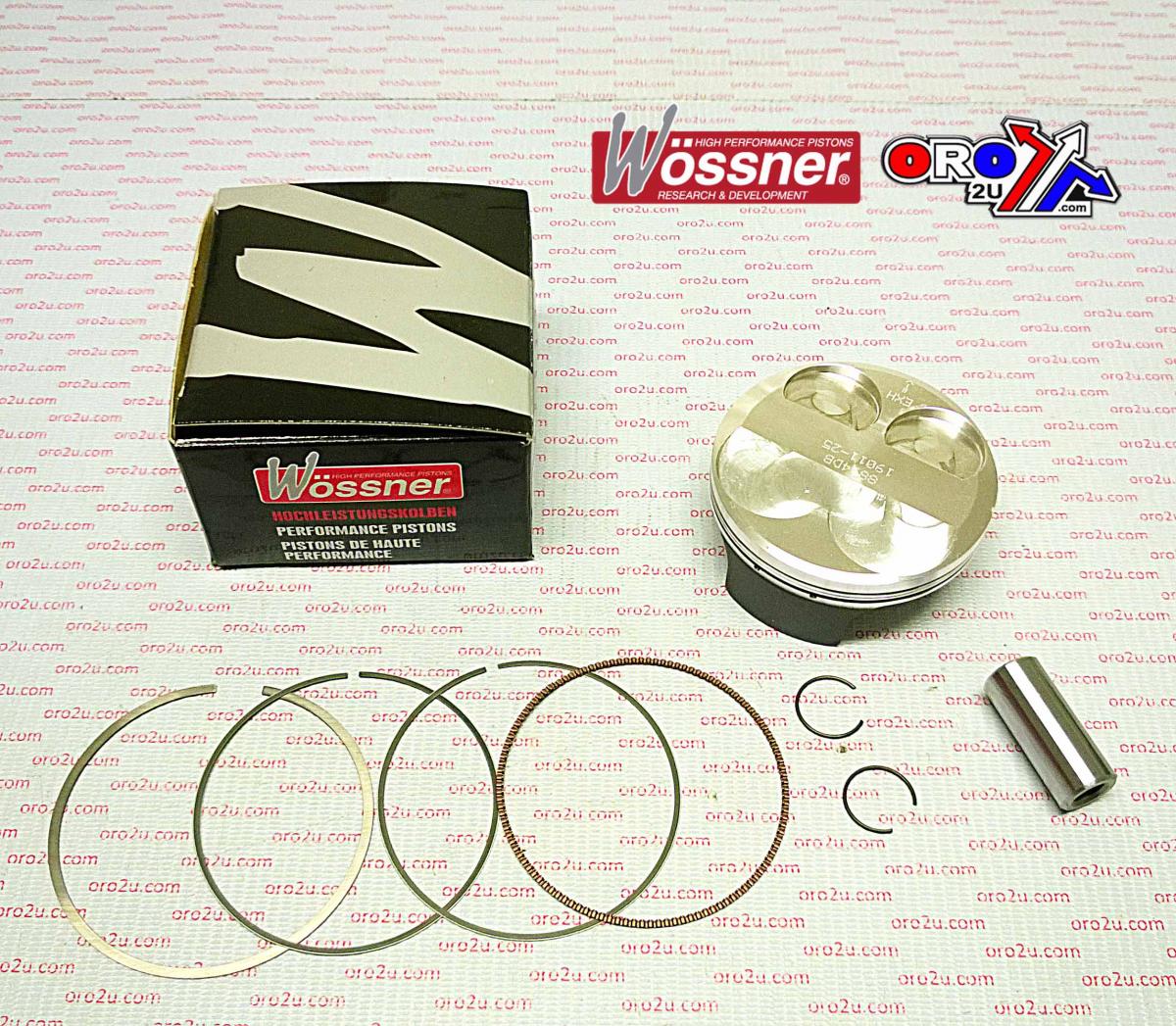

PISTON KIT 11-14 KX250F 77mm C, 8814DC WOSSNER KAWASAKI

This Wossner forged piston kit features a 77.02mm bore size (76.98mm actual), offering a +0.02mm oversize specification for Kawasaki KX250F models from 2011 to 2014. Built with a two-ring design and precision-manufactured in Germany, the piston provides reliable performance under thermal and mechanical stress. Its elliptical shape promotes balanced thrust force distribution and efficient heat transfer.

Features

• Forged piston with two-ring configuration for enhanced strength and durability

• Elliptical design ensures uniform bearing surface during heat expansion

• Engineered for effective combustion heat dissipation

• Manufactured in Germany

Specifications

• Bore Size: 77.02mm (actual 76.98mm)

• Displacement: 249 cm³

• Stroke: 53.60 mm

• Clearance: 0.04 mm

• Compression Ratio (Wossner): OEM

• Compression Ratio (OEM): 13.50:1

• Dome Volume: -2.80 cm³

• Compression Height: 19.60 mm

• Lock Part Number: CW16

• Pin Part Number: WP070

• Ring Set Part Number: 770XAS-2

Cross-Reference OEM Part Numbers

• 56-W952.C.WO

Vehicle Fitments

• 2011 Kawasaki KX250F

• 2012 Kawasaki KX250F

• 2013 Kawasaki KX250F

• 2014 Kawasaki KX250F
