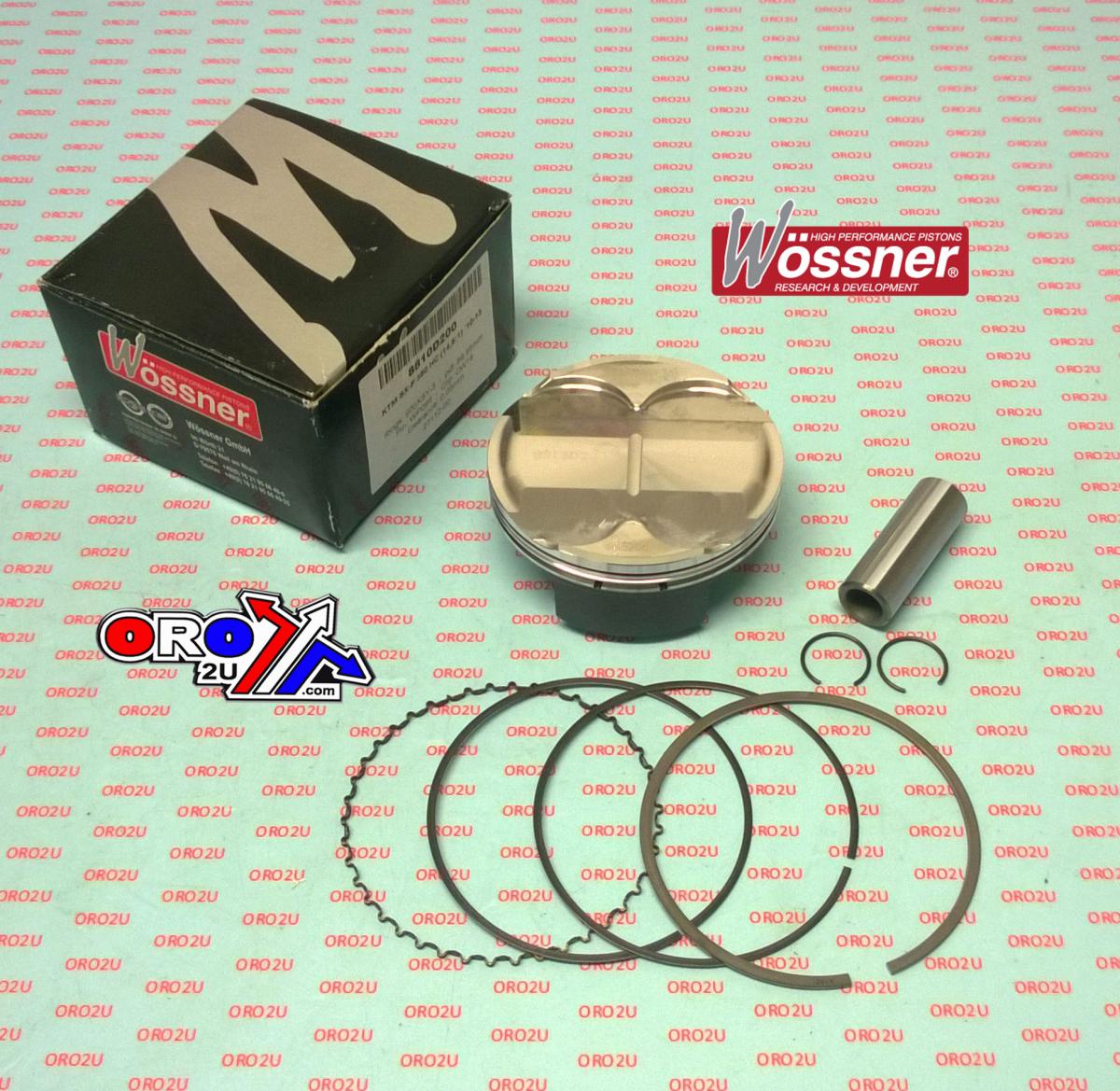

PISTON KIT 10-14 SXF350 88 HC, FORGED WOSSNER 8810DA KTM 77230207100
£175.93 GBP
Taxes included.

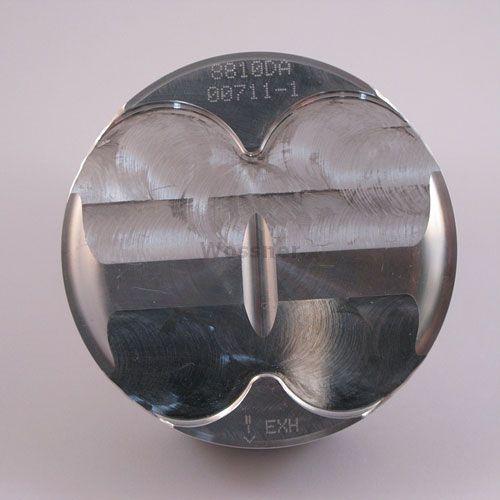

Wossner forged piston kit designed for KTM and Husqvarna models, featuring an 88mm bore and 87.95mm size for high compression performance. Manufactured in Germany, this piston is engineered to optimize heat transfer, ensuring uniform expansion and even thrust load distribution. The elliptical design prevents localized pressure and piston collapse, making it ideal for high-performance applications.
Features
- High-strength forged piston for durability
- Optimized heat transfer for improved combustion efficiency
- Elliptical design to ensure uniform expansion and reduced localized pressure
- High compression ratio for enhanced engine performance
- Manufactured in Germany
Specifications
- Bore: 88mm
- Size: 87.95mm
- Part Number: 8810DA
- Compression Ratio: 14.50:1
- OEM Compression Ratio: 13.50:1
- Lock Part Number: CW18
- Pin Part Number: WP099
- Ring Set Part Number: 880XSY
- Rod Part Numbers:
- P4040 (2010-2012)
- P4061 (2013-2015)
- P4069 (2016)
- Displacement: 350 cm³
- Stroke: 68.80mm
- Clearance: 0.05mm
- Dome Volume: +3.30 cm³
- Compression Height: 20.50mm
- Theoretical Weight: Not specified
Cross-Reference OEM Part Numbers
- 77230207100
- 40015M08800
Vehicle Fitments
- KTM SX-F 350 (2010-2020)
- Husqvarna FC 350 Pro Series (2014, 2016)
- Husqvarna FX 350 Pro Series (2017)
- Husqvarna TE 350 Pro Series (1990)
