PISTON KIT 10-14 RMZ250 77 HC, COMP 14:1 WOSSNER 8795DC
£145.68 GBP
Taxes included.

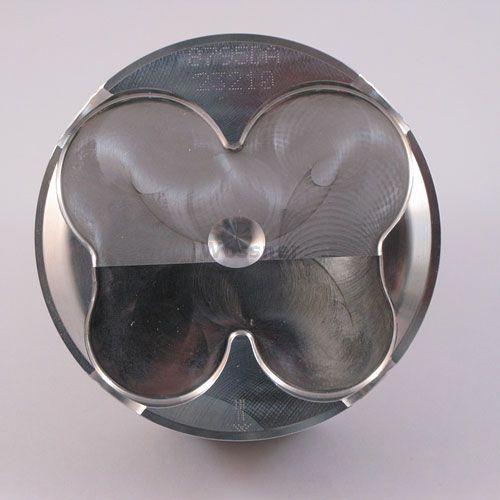

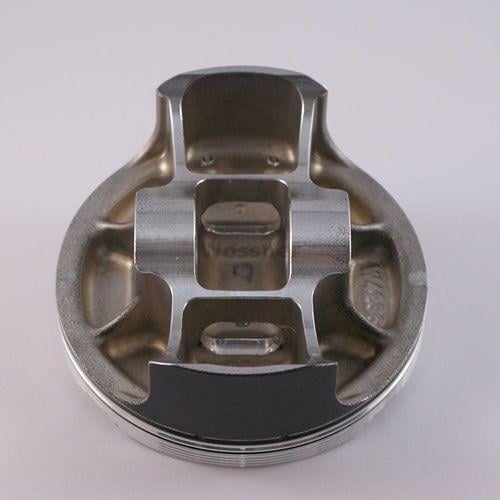

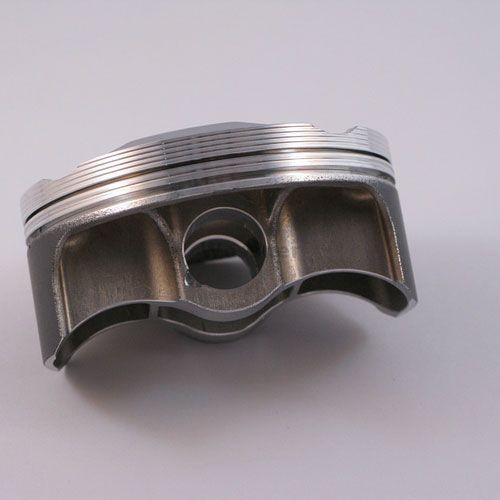

Wossner forged piston kit with a 77.02mm bore and 76.98mm diameter, designed for Suzuki RM-Z250 models (2010-2014). This high-compression piston is engineered for superior strength and optimized heat transfer. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Features
- High-compression piston for increased performance
- Forged construction for superior strength
- Optimized heat transfer for efficient combustion
- Elliptical design for uniform load distribution
- Manufactured in Germany
Specifications
- Bore: 77.02mm
- Diameter: 76.98mm
- Display (cm³): 249
- Stroke (mm): 53.60
- Clearance (mm): 0.06
- Wossner Compression Ratio: 14.00:1
- OEM Compression Ratio: 13.50:1
- Dome Volume (cm³): -2.10
- Compression Height (mm): 19.60

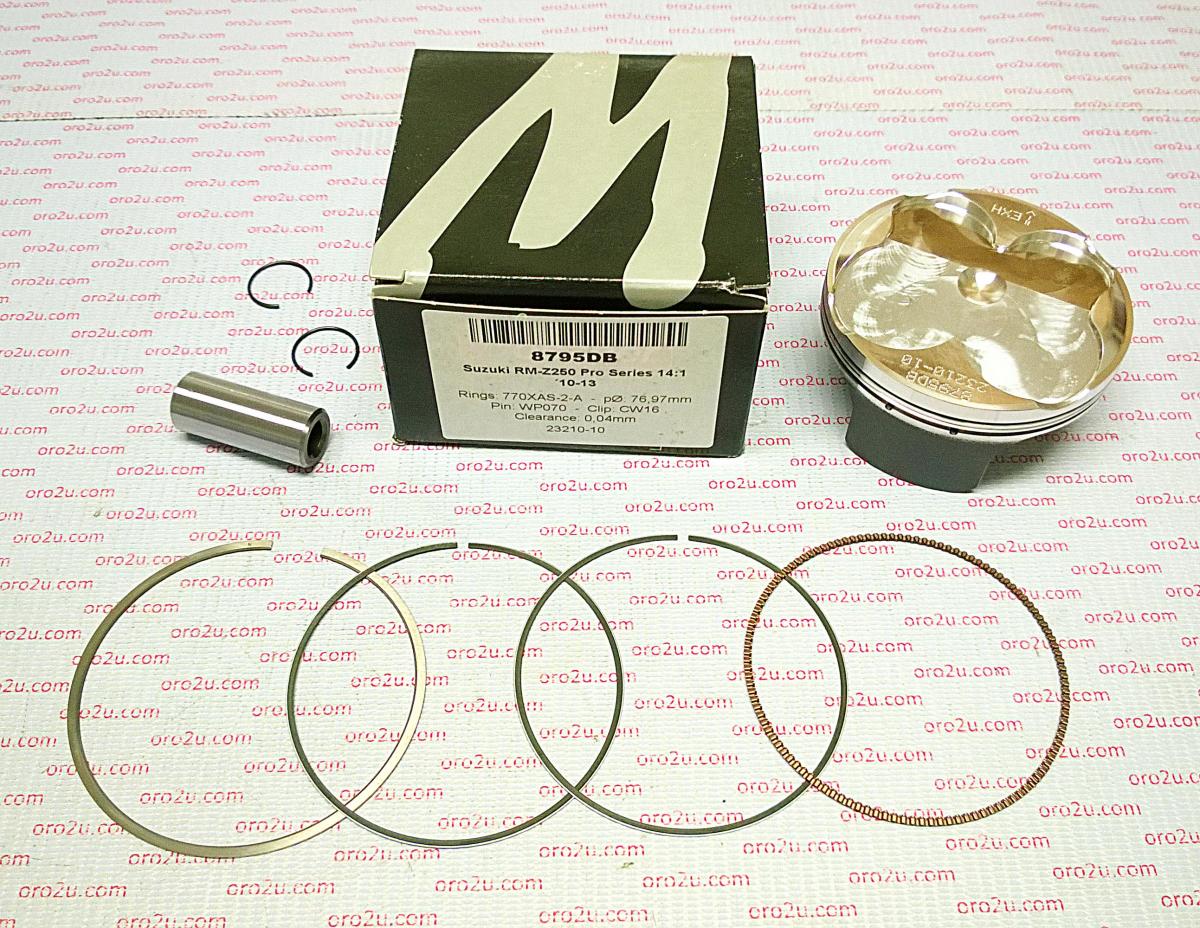

Cross-Reference OEM Part Numbers
- Wossner Piston Kit (PN# 8795DC)
- Lock P/N: CW16
- Pin P/N: WP070
- Ring Set P/N: 770XAS-2
Vehicle Fitments
- Suzuki RM-Z250 (2010-2014)
