PISTON KIT 09-11 KTM400 EXC 95, FORGED WOSSNER 8806DB

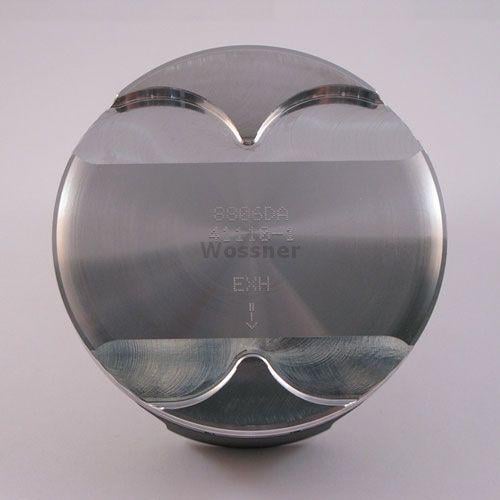

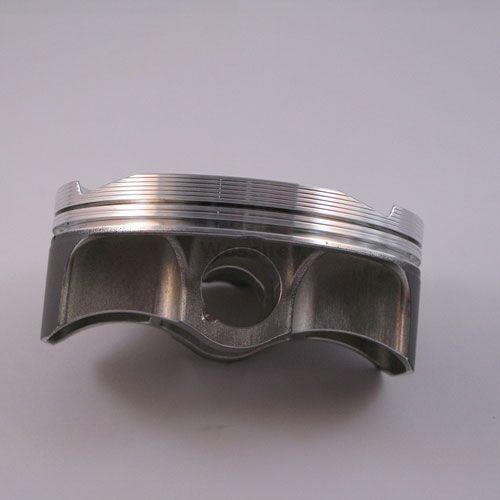

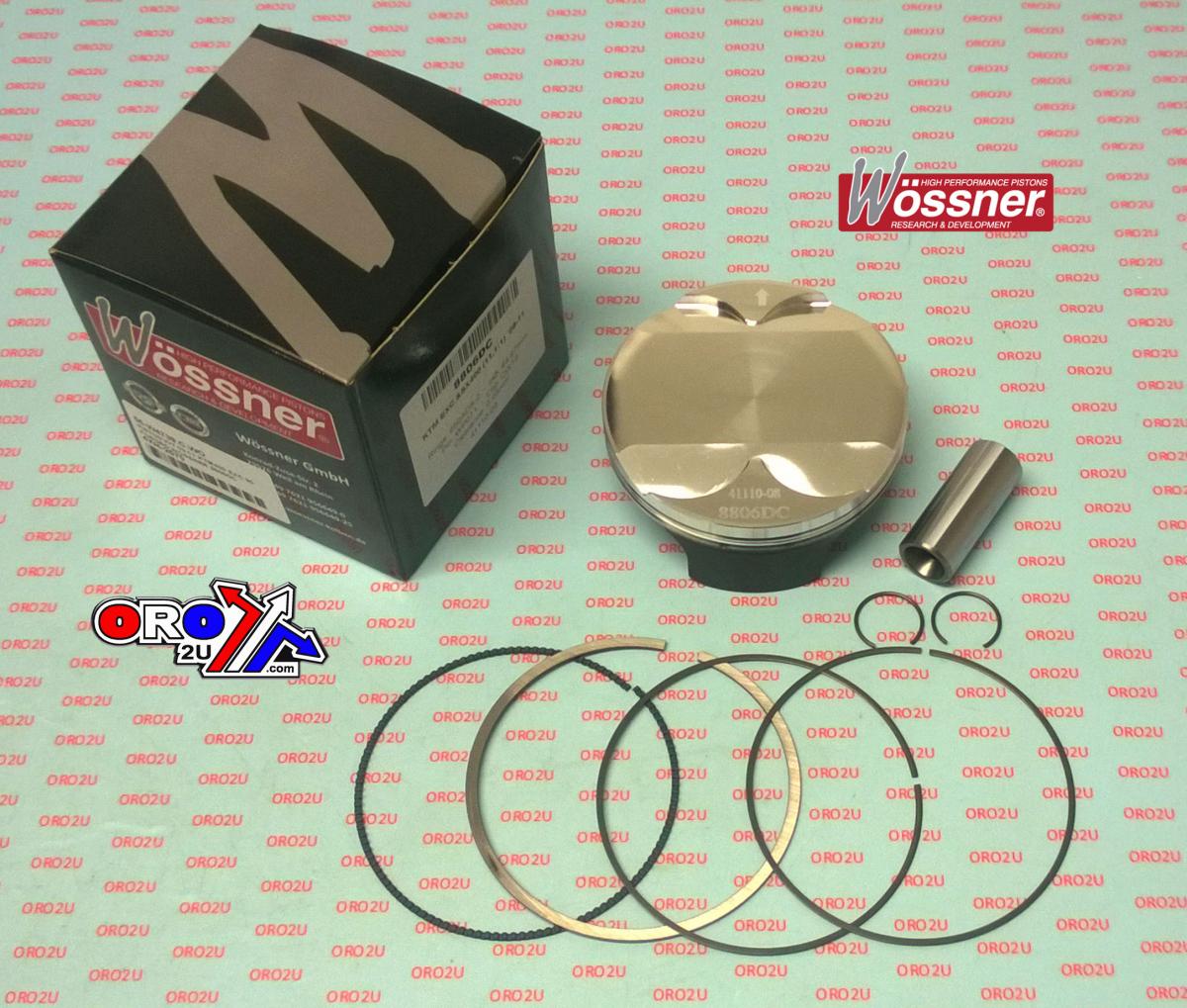

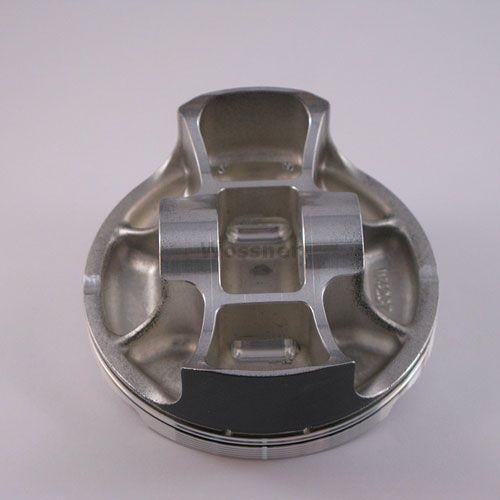

Wossner 95.01mm Bore Piston Kit (PN# 8806DB) is designed for KTM EXC400 models from 2009 to 2012. This forged piston ensures high strength, efficient heat transfer, and durability. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this piston meets OEM compression standards.

Features

• High-strength forged piston for durability and performance
• Optimized heat transfer for efficient combustion
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany

Specifications

• Bore: 95.01mm
• Actual diameter: 94.96mm
• Display (cm³): 398
• Stroke (mm): 55.50
• Clearance (mm): 0.05
• Compression Ratio: OEM
• OEM Compression Ratio: 11.10:1
• Dome Volume (cm³): -0.20
• Compression Height (mm): 22.80

Cross-Reference OEM Part Numbers

• Lock: CW19
• Pin: WP071
• Ring Set: 950ADS-2

Vehicle Fitments

• KTM EXC400 (2009-2012)
