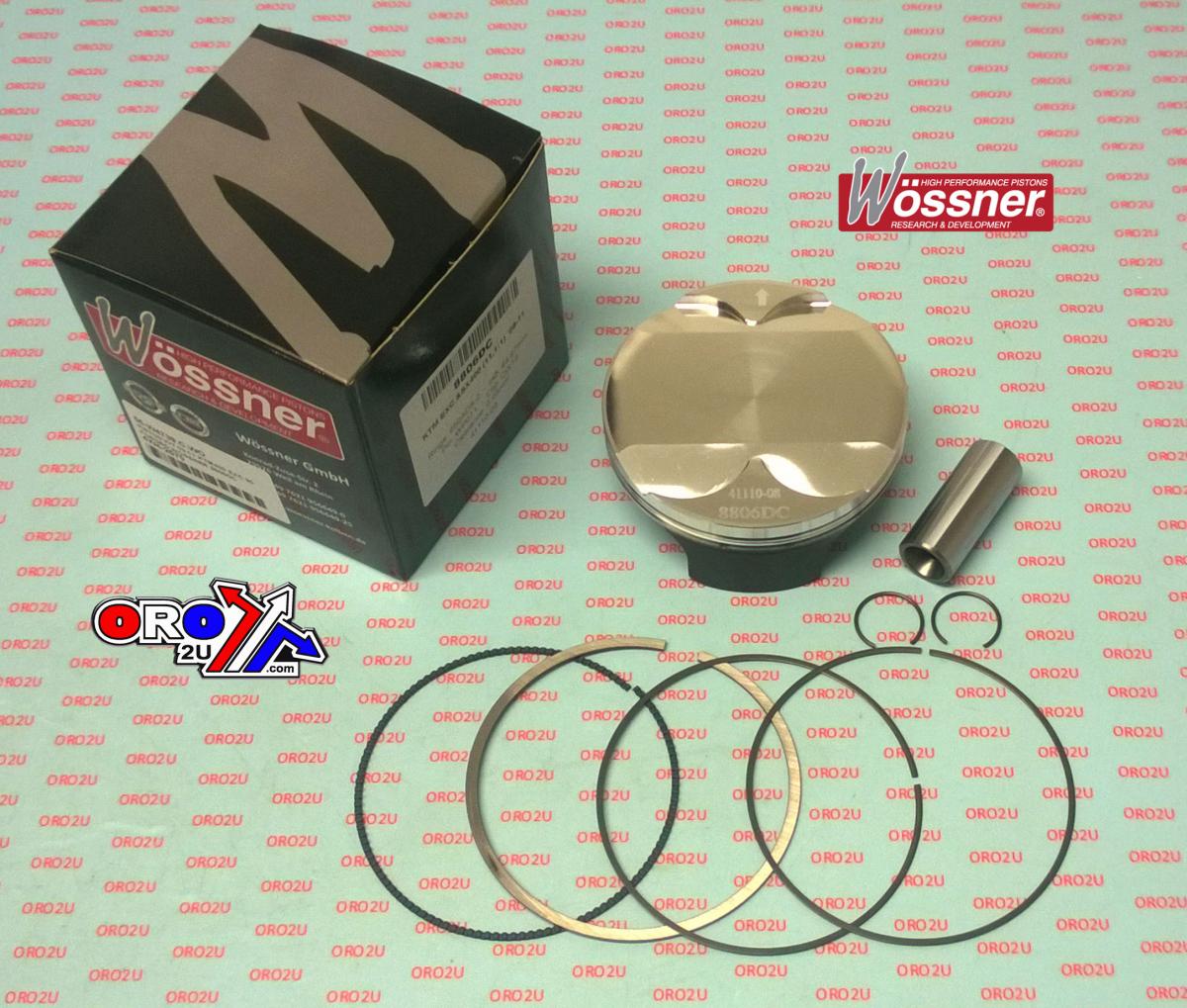

PISTON KIT 09-11 KTM400 EXC 95, FORGED WOSSNER 8806DA
£175.93 GBP
Taxes included.

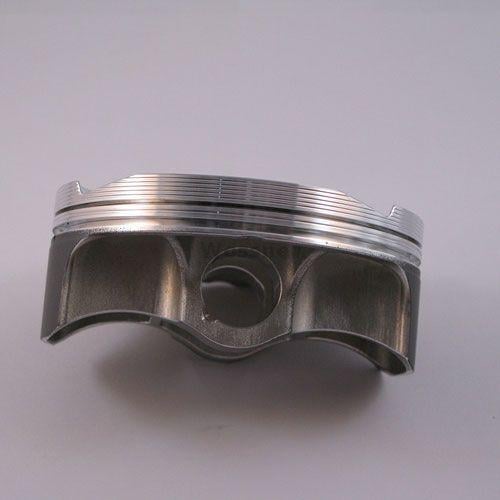

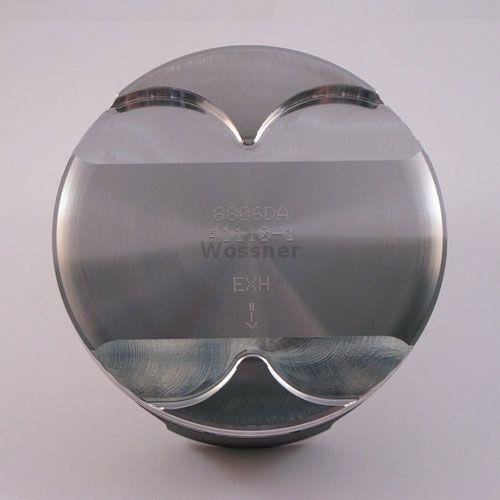

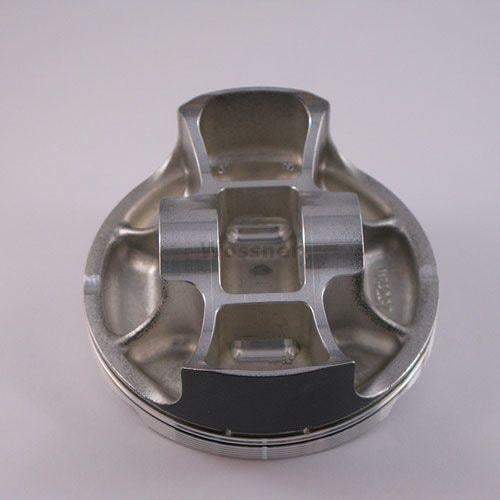

Wossner 95mm Bore Piston Kit (PN# 8806DA) is designed for KTM EXC400 models from 2009 to 2012. This forged piston provides superior strength and efficient heat transfer, ensuring durability and optimal engine performance. Its elliptical design creates a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this piston meets OEM compression standards.
Features
- High-strength forged piston for enhanced durability
- Optimized heat transfer for improved performance
- Elliptical design prevents piston collapse and ensures even load distribution
- Manufactured in Germany
Specifications
- Bore: 95mm
- Actual diameter: 94.95mm
- Display (cm³): 398
- Stroke (mm): 55.50
- Clearance (mm): 0.05
- Compression Ratio: OEM
- OEM Compression Ratio: 11.10:1
- Dome Volume (cm³): -0.20
- Compression Height (mm): 22.80
Cross-Reference OEM Part Numbers
- Lock: CW19
- Pin: WP071
- Ring Set: 950ADS-2
Vehicle Fitments
- KTM EXC400 (2009-2012)
