PISTON KIT 04-09 KX125 54.00 A, WOSSNER 8167DA KAWASAKI MX 13001-0009

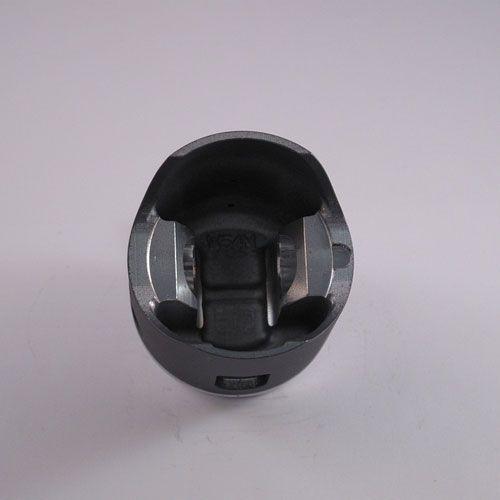

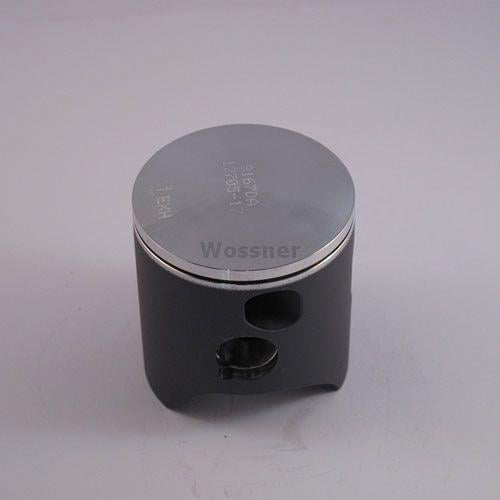

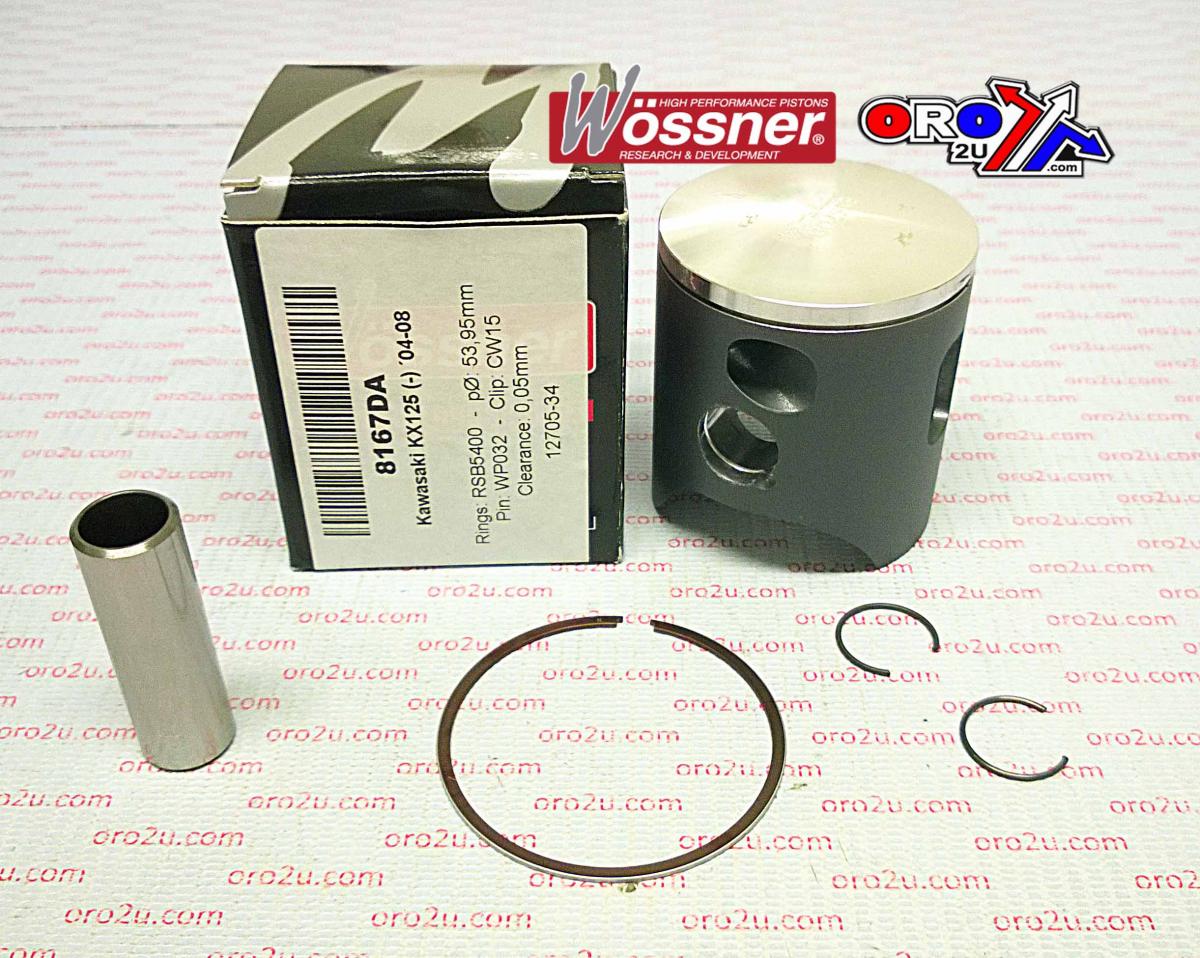

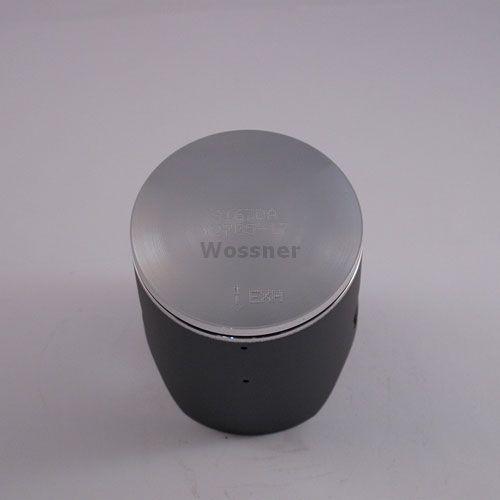

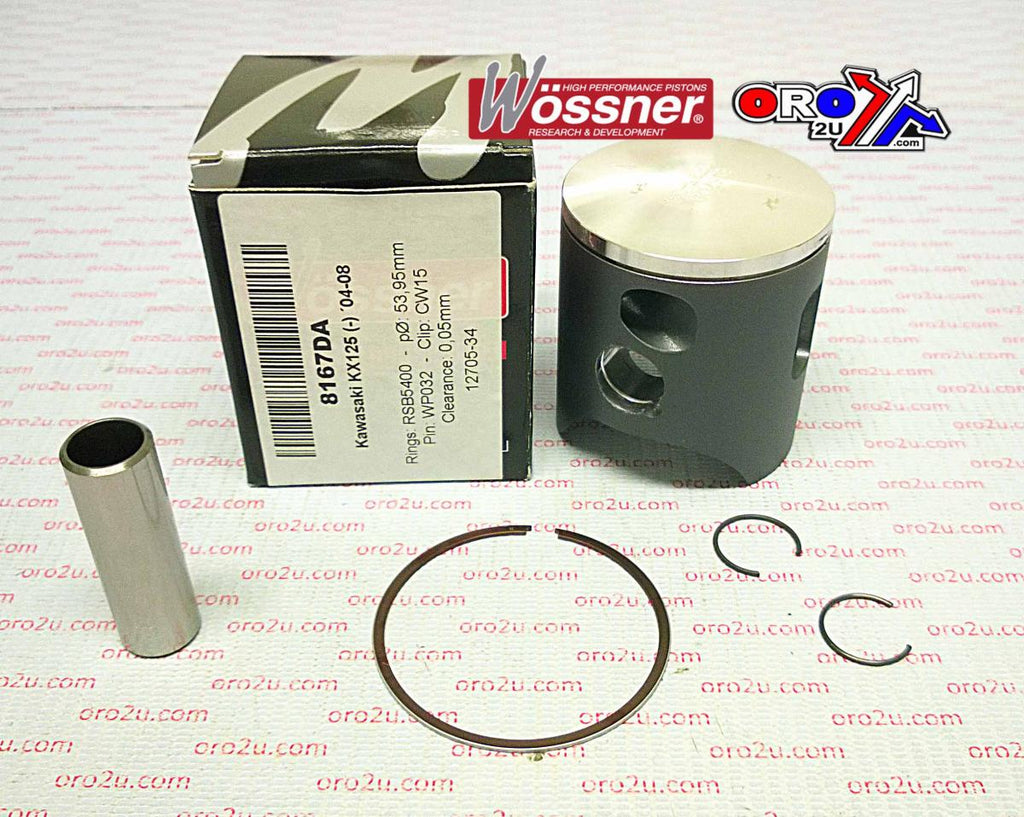

The Wossner 8167DA piston kit is a standard-size forged piston engineered for the Kawasaki KX125 models from 2004 to 2009. Featuring a 54.00mm bore and a 53.95mm piston diameter, this piston is crafted to deliver reliable performance and thermal efficiency. Its elliptical design ensures even distribution of thrust loads and optimal expansion under heat, significantly reducing the risk of piston failure. Manufactured in Germany, this piston meets high standards of precision and durability for two-stroke engines.

Features

• Forged piston construction for high strength and long service life

• Engineered for effective heat transfer from the combustion chamber to cylinder walls

• Elliptical design provides uniform bearing surface and prevents piston collapse

• Manufactured in Germany for premium quality and precision

Specifications

• Bore: 54.00 mm

• Piston Diameter: 53.95 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.30 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5400

• Connecting Rod Kit Part Number: P2010

Cross-Reference OEM Part Numbers

• 13001-0009

• 09104857

• 834M05400

Vehicle Fitments

• Kawasaki KX125 2004 - 2009
