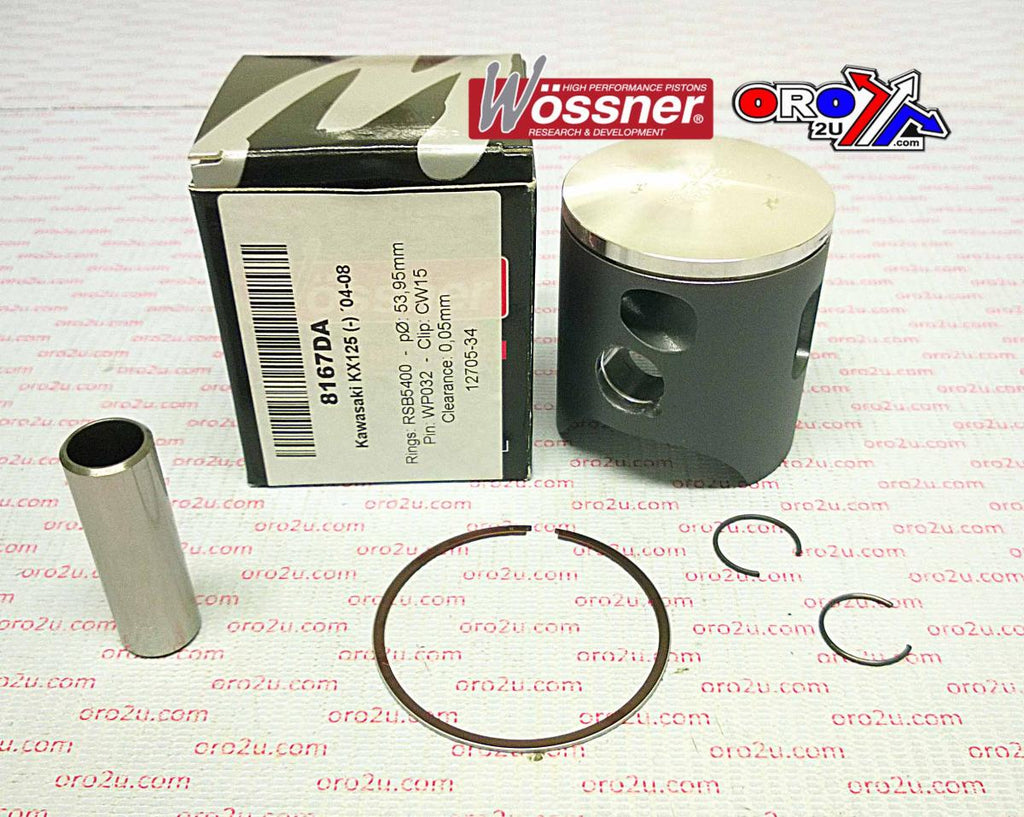

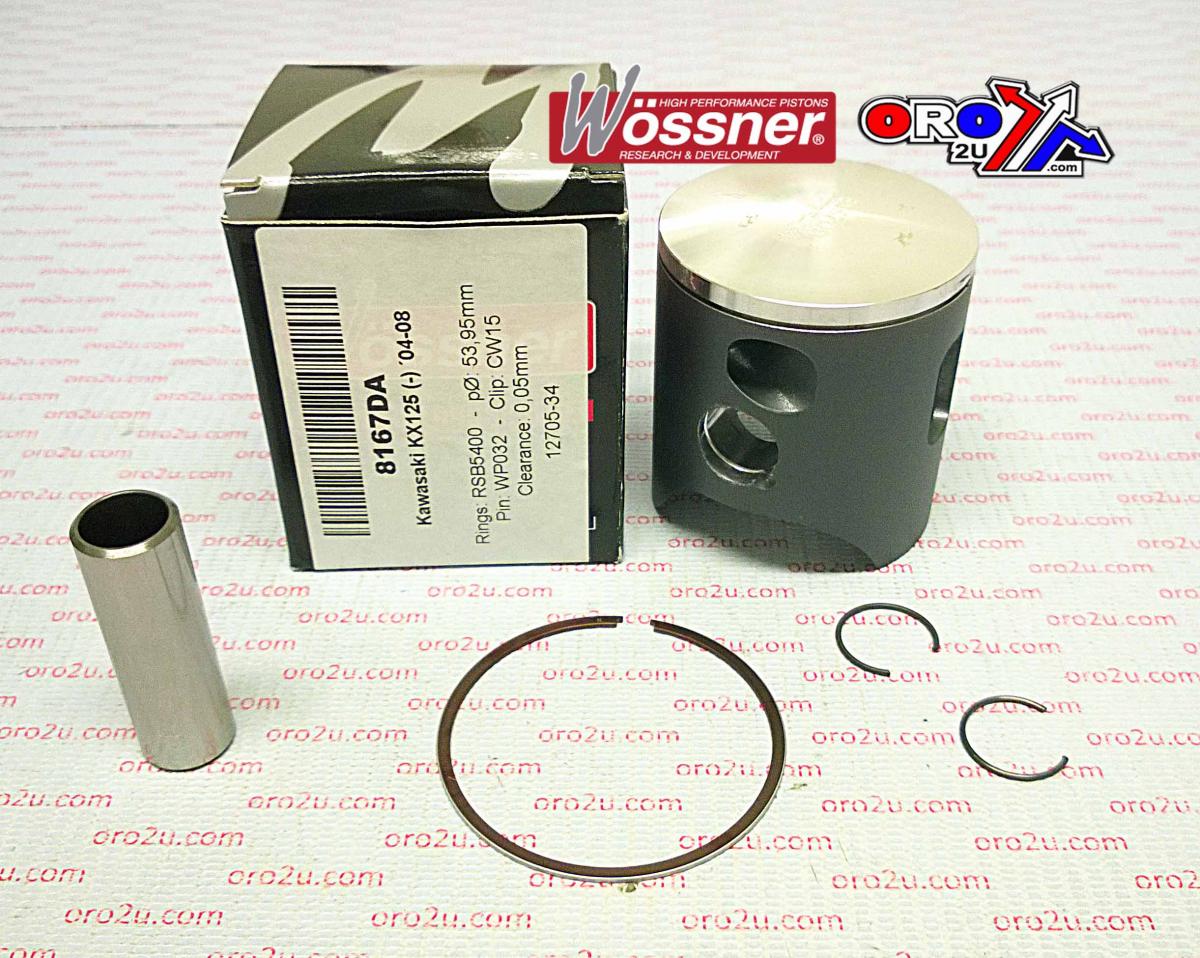

PISTON KIT 04-08 KX125 56.00, WOSSNER 8167D200 KAWASAKI MX

The Wossner 8167D200 piston kit is a +2.00 oversize forged piston designed for Kawasaki KX125 models from 2004 to 2009. Featuring a 56.00mm bore and 55.95mm piston diameter, this piston is engineered to provide high durability and effective thermal performance under the demands of two-stroke operation. Its elliptical design ensures optimal expansion characteristics, evenly distributing pressure to reduce wear and eliminate piston collapse. Precision-manufactured in Germany, this piston kit offers dependable performance for serious riders and racers.

Features

• Forged piston design enhances strength and longevity

• Optimised for efficient heat transfer from the combustion chamber

• Elliptical shape ensures uniform expansion and load distribution

• Made in Germany with precision engineering

Specifications

• Bore: 56.00 mm

• Piston Diameter: 55.95 mm

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.05 mm

• Compression Height: 29.30 mm

• Compression Ratio (Wossner and OEM): 2-stroke

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSB5400

• Connecting Rod Kit Part Number: P2010

Vehicle Fitments

• Kawasaki KX125 2004 - 2009
