PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
  • PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634
PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634

PISTON KIT 03 KX125 54.00 A, WOSSNER 8073DA KAWASAKI MX 13001-1634

£97.28 GBP
Taxes included.

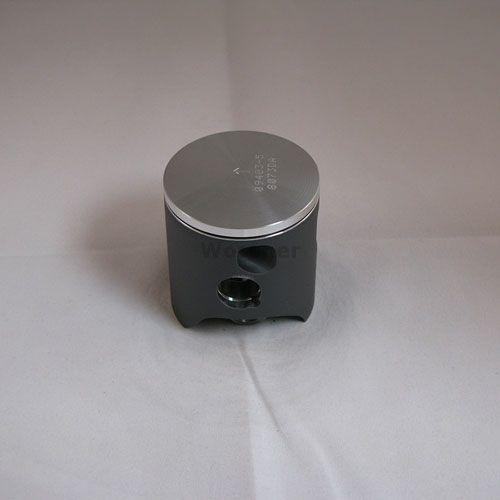

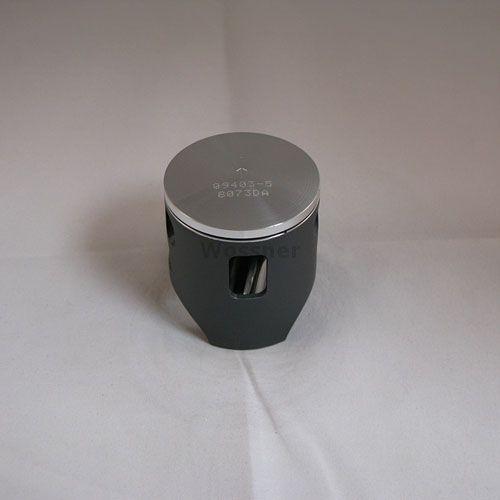

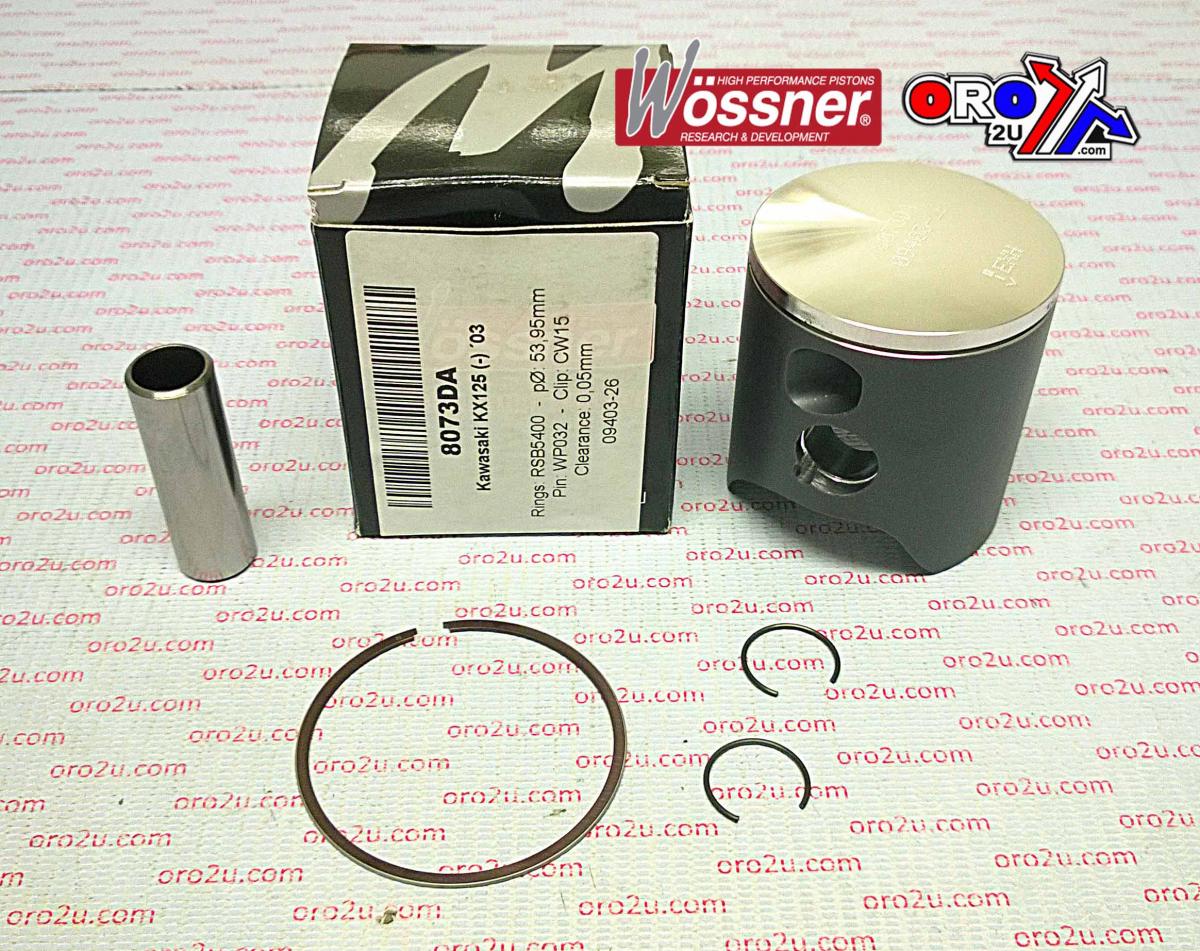

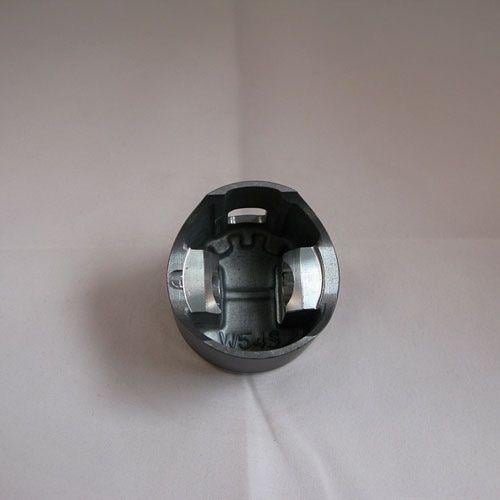

This Wossner forged piston kit with a 54.00mm bore is a standard size replacement for the 2003 Kawasaki KX125. Designed for durability and optimal performance in two-stroke engines, this German-made piston ensures effective heat dissipation and consistent load distribution under high thermal and mechanical stress, making it suitable for racing and performance applications.

Features

  • Forged construction offers high strength and long-term reliability

  • Designed to maximise combustion chamber heat transfer to cylinder walls

  • Elliptical profile distributes thrust loads evenly, preventing localised pressure and piston collapse

  • Made in Germany

Specifications

  • Bore: 54.00mm

  • Actual Bore: 53.95mm

  • Engine Displacement: 125 cm³

  • Stroke: 54.50mm

  • Clearance: 0.05mm

  • Compression Ratio: 2-stroke (Wossner and OEM)

  • Compression Height: 29.30mm

  • Lock Part Number: CW15

  • Pin Part Number: WP032

  • Ring Set Part Number: RSB5400

  • Rod Part Number: P2010

Cross-Reference OEM Part Numbers

  • 13001-1634

  • 822M05400

Vehicle Fitments

  • Kawasaki KX125 2003
