PISTON KIT 03-09 CR85 47.50 C, WOSSNER 8105DC HONDA MX

PISTON KIT 03-09 CR85 47.50 C, WOSSNER 8105DC HONDA MX

£70.74 GBP
Taxes included.

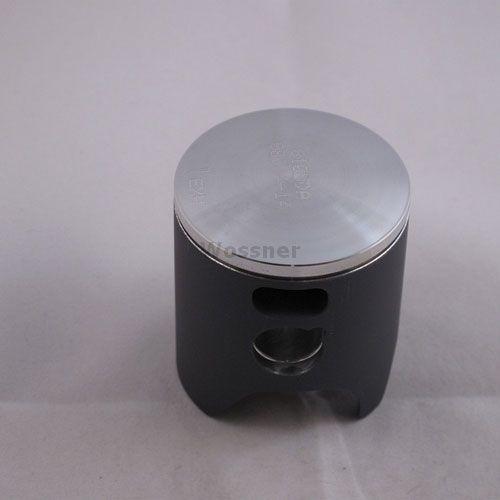

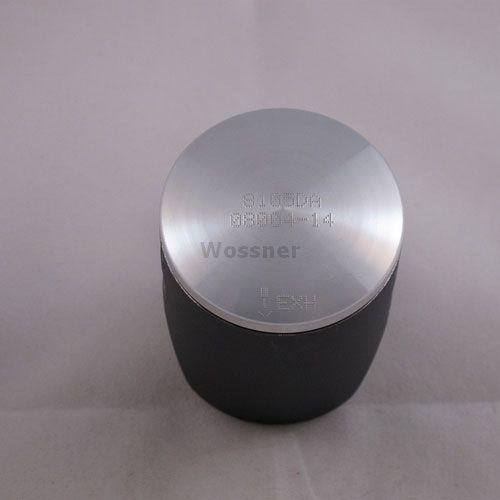

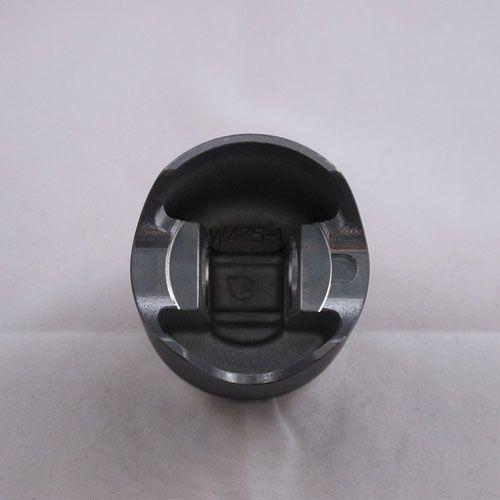

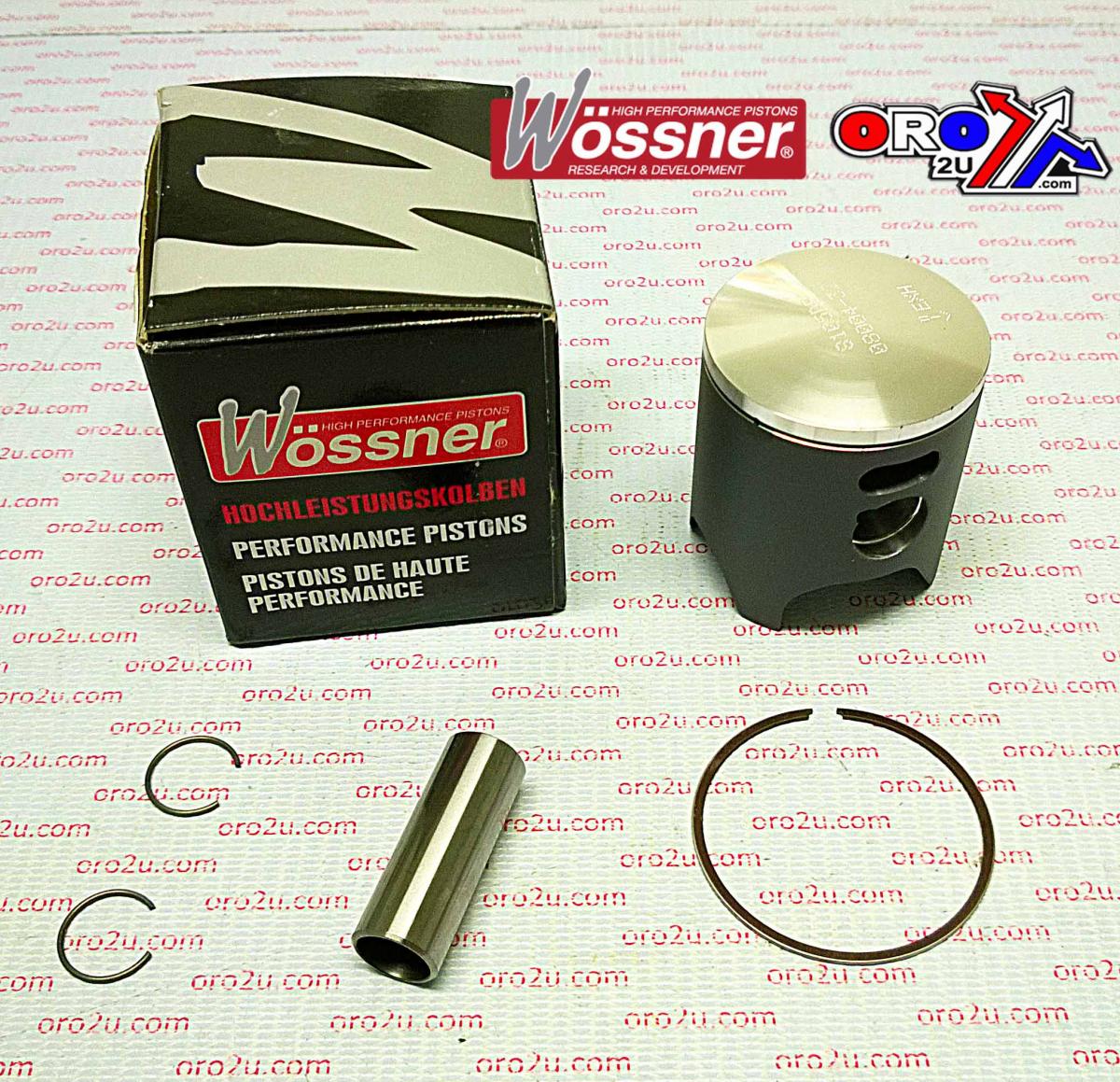

The Wossner 8105DC piston kit is a high-performance forged piston designed for the Honda CR85 series. With a 47.52mm bore and 47.47mm piston diameter, this +0.02 oversize piston enhances durability and thermal efficiency in two-stroke engine configurations. Engineered with an elliptical profile, it provides balanced load distribution and prevents piston collapse under thermal stress. This German-made piston kit is ideal for maintaining factory specifications while ensuring robust engine performance.

Features

  • Forged piston construction ensures superior strength and durability

  • Designed for effective heat transfer from the combustion chamber to cylinder walls

  • Elliptical shape distributes thrust loads evenly and prevents localised pressure

  • Manufactured in Germany with high-precision engineering

Specifications

  • Bore: 47.52 mm

  • Piston Diameter: 47.47 mm

  • Display Displacement: 84 cm³

  • Stroke: 47.80 mm

  • Piston Clearance: 0.05 mm

  • Compression Height: 24.00 mm

  • Compression Ratio (Wossner and OEM): 2-stroke

  • Lock Part Number: CW14

  • Pin Part Number: WP058

  • Ring Set Part Number: RSB4750

  • Rod Part Number: P2003

Vehicle Fitments

  • Honda CR 85 2003 - 2009
