PISTON KIT 01-16 KX85 53.00, WOSSNER 8102D450 KAWASAKI MX

This Wossner piston kit with a 53.00mm bore and 52.95mm actual piston diameter is designed for Kawasaki KX85 models from 2001 to 2016. Engineered for durability and optimal heat transfer, this forged piston offers reliable performance under demanding conditions, making it ideal for 2-stroke engine applications.

Features

• Forged piston construction enhances strength and reliability

• Promotes efficient combustion chamber heat transfer to cylinder walls

• Elliptical design ensures a consistent bearing surface during thermal expansion

• Distributes thrust loads evenly and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore: 53.00mm

• Piston Diameter: 52.95mm

• Display (cm³): 85

• Stroke (mm): 45.80

• Clearance (mm): 0.05

• Compression Height (mm): 26.00

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Vehicle Fitments

• Kawasaki KX85 2001–2016

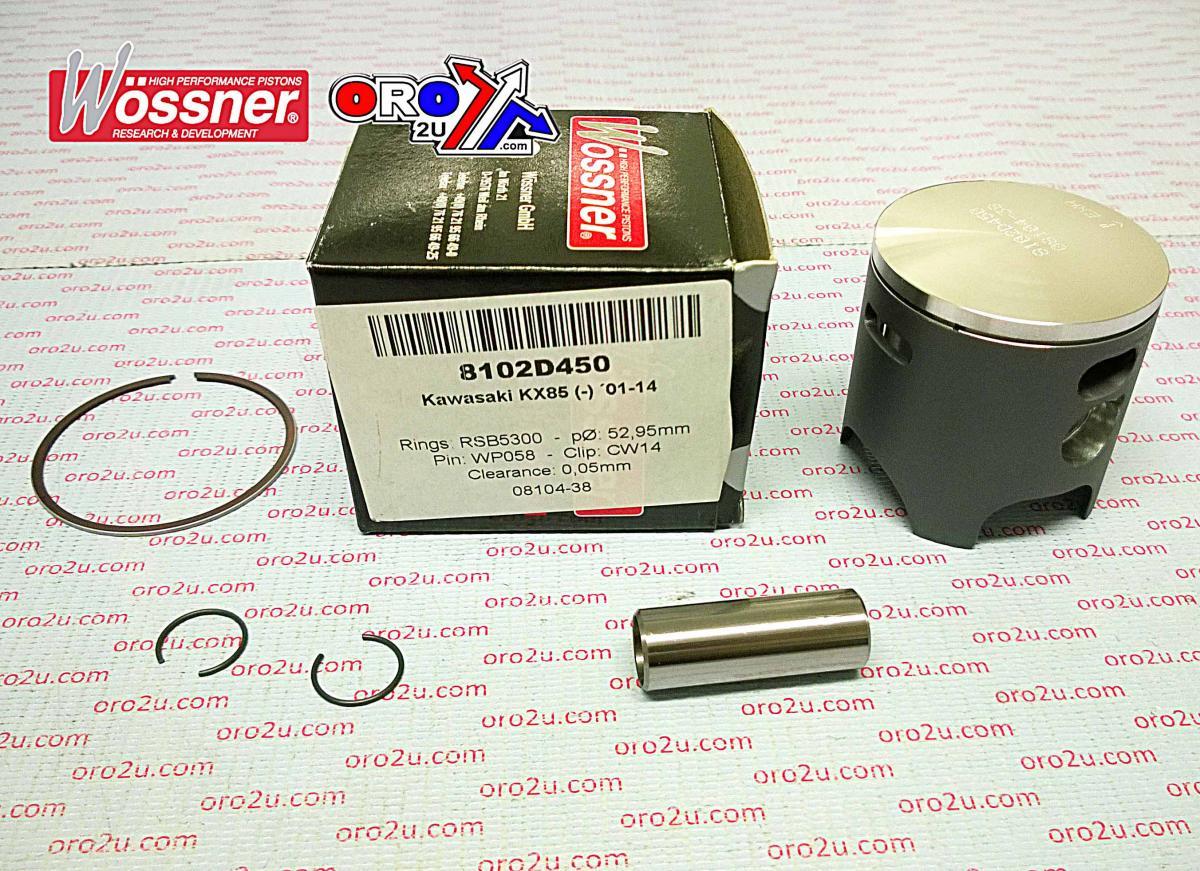

Included Components

• Lock: CW14

• Pin: WP058

• Ring Set: RSB5300

• Rod: P2005

• Part Number: 56-W782_450.WO
