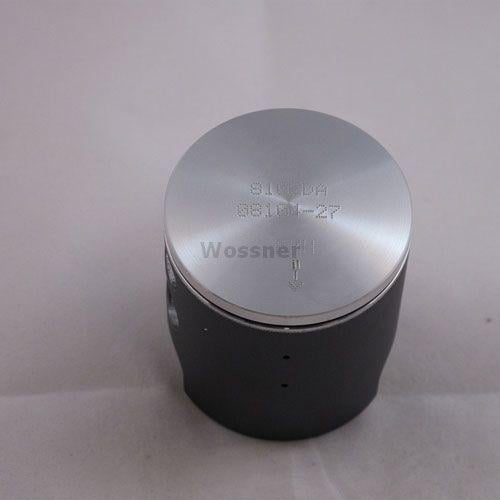

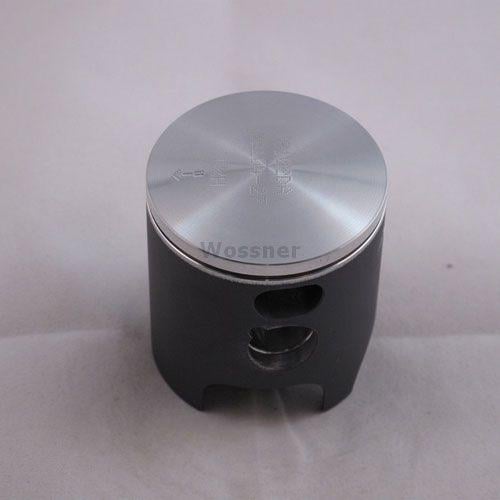

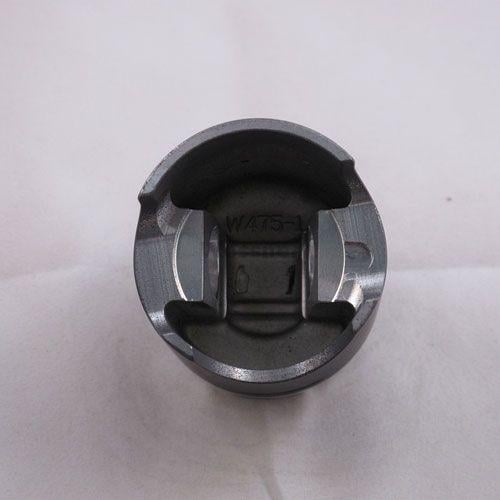

PISTON KIT 01-16 KX85 52.00, WOSSNER 8102D350 KAWASAKI MX

This Wossner piston kit features a 52.00mm bore and a 51.95mm actual piston diameter, specifically designed for the Kawasaki KX85 models from 2001 to 2016. The forged construction ensures high durability and optimal performance under demanding conditions. Engineered for efficient heat dissipation and structural integrity, it supports consistent performance in 2-stroke engines.

Features

• Forged piston for superior strength and durability

• Maximised heat transfer from the combustion chamber to cylinder walls

• Elliptical piston profile ensures even bearing surface under thermal expansion

• Reduces localised pressure and evenly distributes thrust loads

• Helps prevent piston collapse

• Manufactured in Germany

Specifications

• Bore: 52.00mm

• Piston Diameter: 51.95mm

• Display (cm³): 85

• Stroke (mm): 45.80

• Clearance (mm): 0.05

• Compression Height (mm): 26.00

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

Vehicle Fitments

• Kawasaki KX85 2001–2016

Included Components

• Lock: CW14

• Pin: WP058

• Ring Set: RSB5200

• Rod: P2005

• Part Number: 56-W782_350.WO
