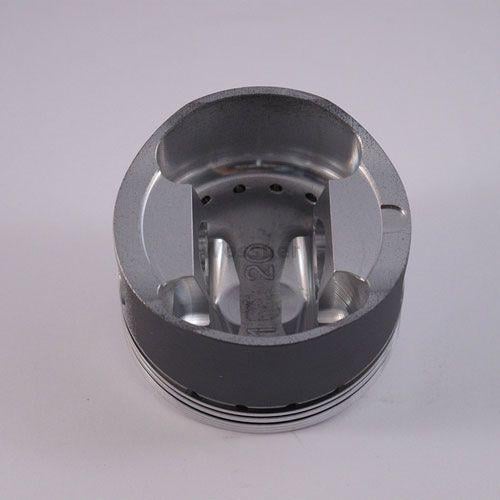

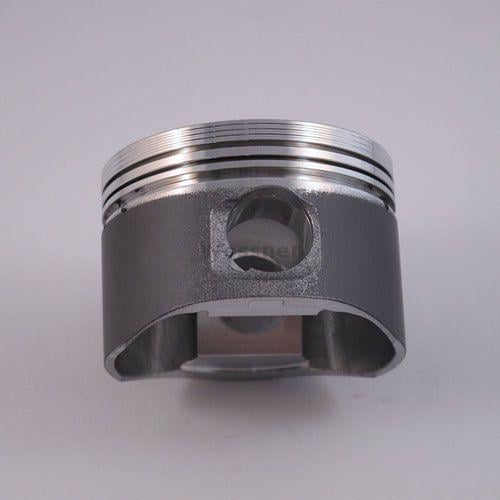

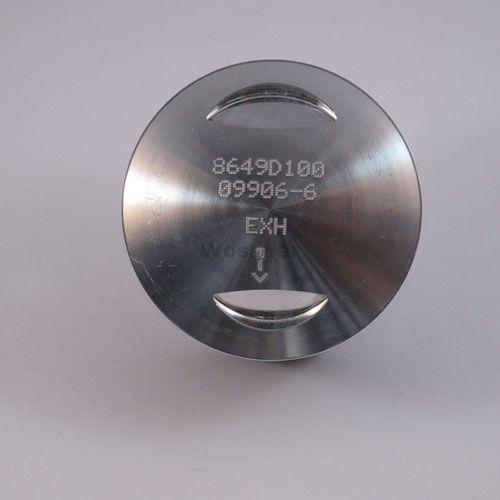

PISTON KIT 00-12 TTR125 54.00, FORGED WOSSNER 8649DA, 5HP-11631-00-A0
£127.28 GBP
Taxes included.
Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
Features
- Forged piston for enhanced strength and durability
- Optimized heat transfer for efficient combustion
- Elliptical design to prevent piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 54.00mm
- Actual Bore Diameter: 53.94mm
- Displacement: 124 cm³
- Stroke: 54.00mm
- Clearance: 0.06mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 10.30:1
- Dome Volume: +4.10 cm³
- Compression Height: 20.20mm
- Theoretical Weight: Not specified

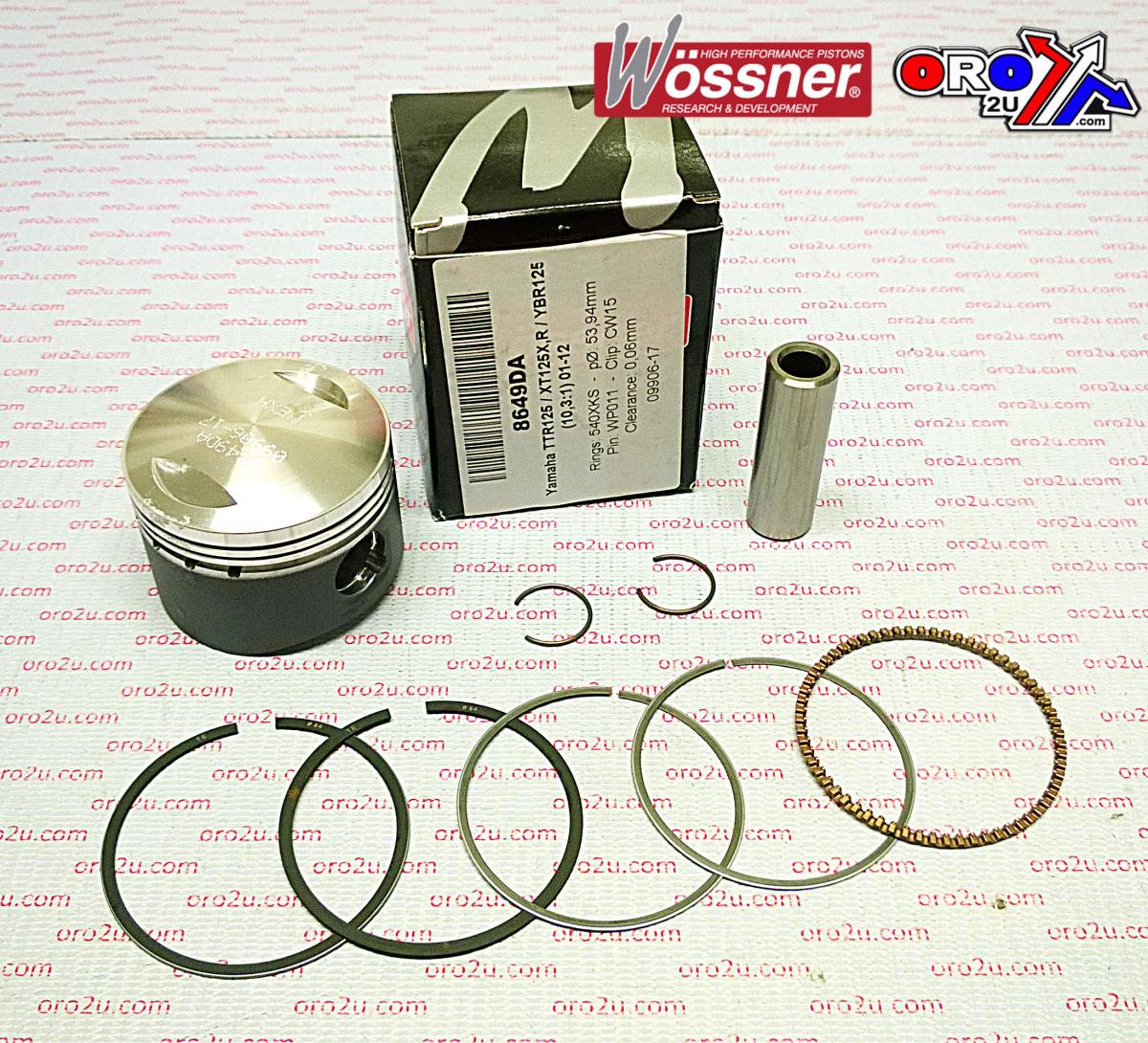

Included Components
- Lock Part Number: CW15
- Pin Part Number: WP011
- Ring Set Part Number: 540XKS
Cross-Reference OEM Part Numbers
- 5HP-11631-00-A0
Vehicle Fitments
- Yamaha TTR125 (2001-2013)
- Yamaha XT125X (2001-2013)
- Yamaha XT125XR (2001-2013)
- Yamaha YBR125 (2001-2013)
