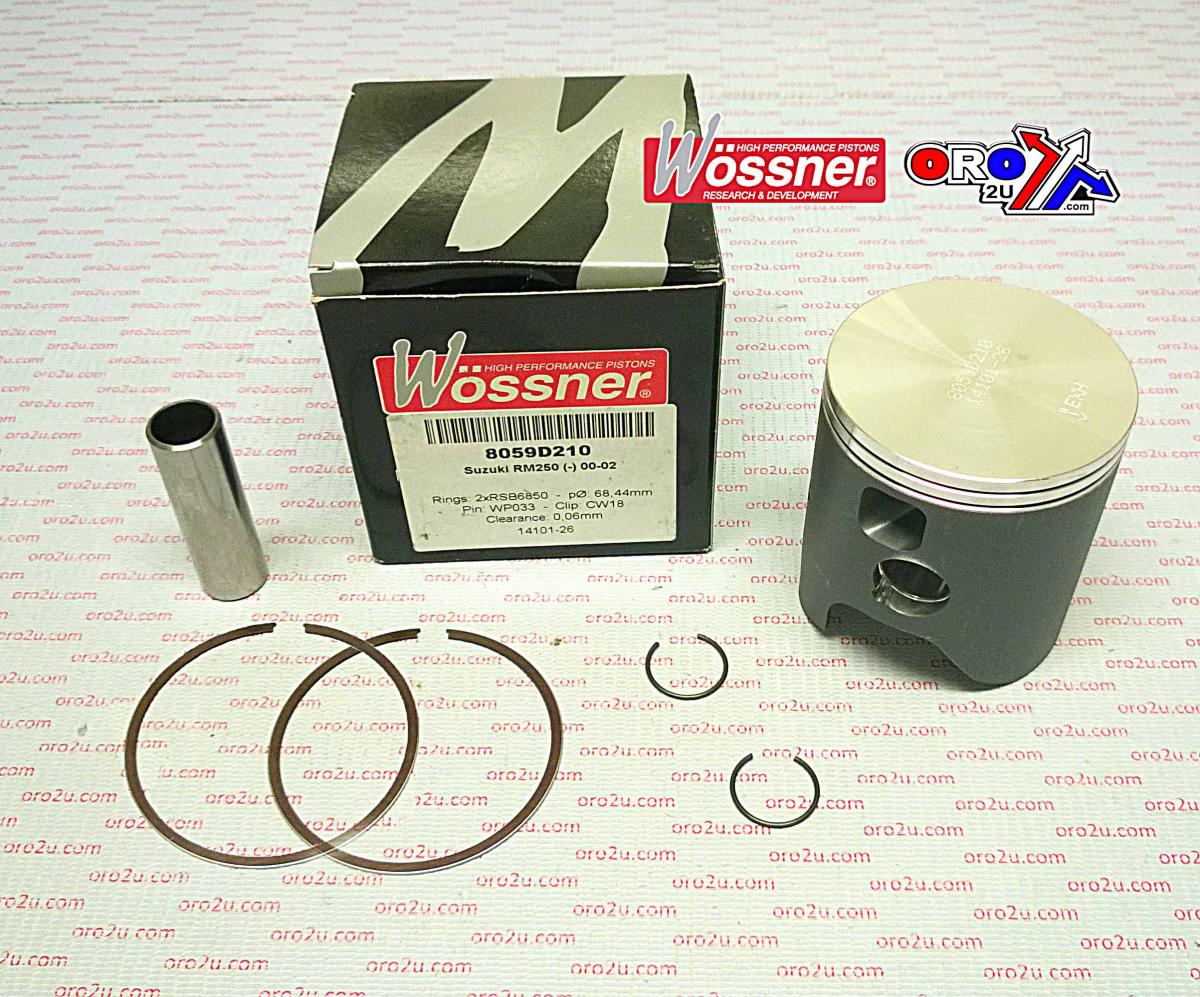

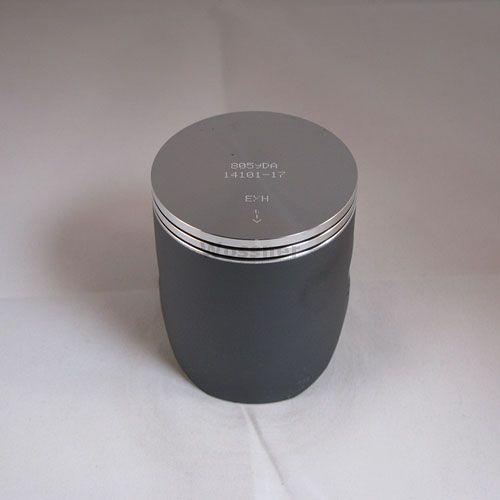

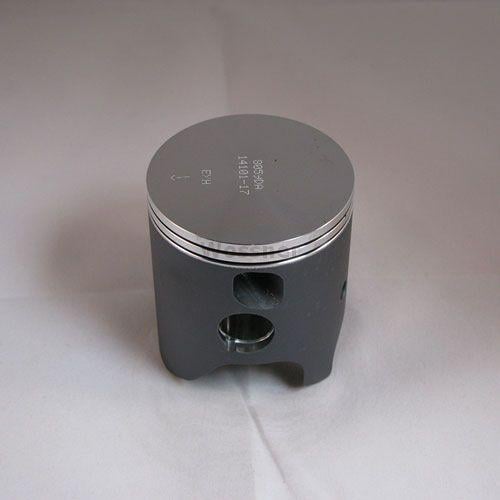

PISTON KIT 00-02 RM250 66.40 C, WOSSNER 8059DC SUZUKI MX

This Wossner piston kit features a 66.42mm bore, offering a +0.02mm oversize fitment for the Suzuki RM250 models produced between 2000 and 2002. With forged construction and precision engineering, it delivers excellent durability and efficient heat transfer, suited for high-performance 2-stroke applications.

Features

• Forged piston ensures increased strength and wear resistance

• Designed for optimal heat dissipation from the combustion chamber to the cylinder

• Elliptical design distributes thrust loads evenly under expansion

• Helps prevent piston collapse by reducing localised pressure

• Manufactured to high standards in Germany

Specifications

• Bore: 66.42 mm

• Actual piston size: 66.36 mm

• Stroke: 72.00 mm

• Display volume: 249 cm³

• Clearance: 0.06 mm

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height: 38.00 mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8059DC

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6640 x 2

• Rod: P2026

• Part No: 56-W756.C.WO

Vehicle Fitments

• Suzuki RM250 2000

• Suzuki RM250 2001

• Suzuki RM250 2002
