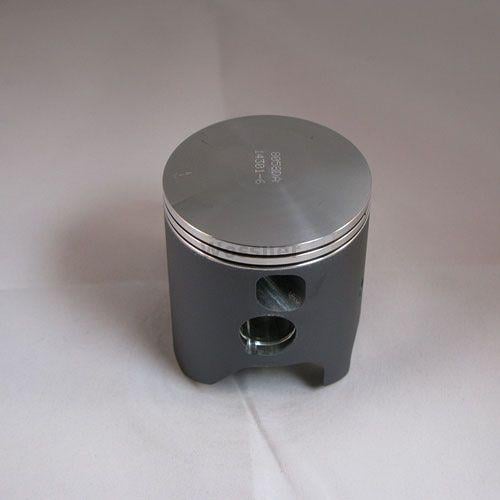

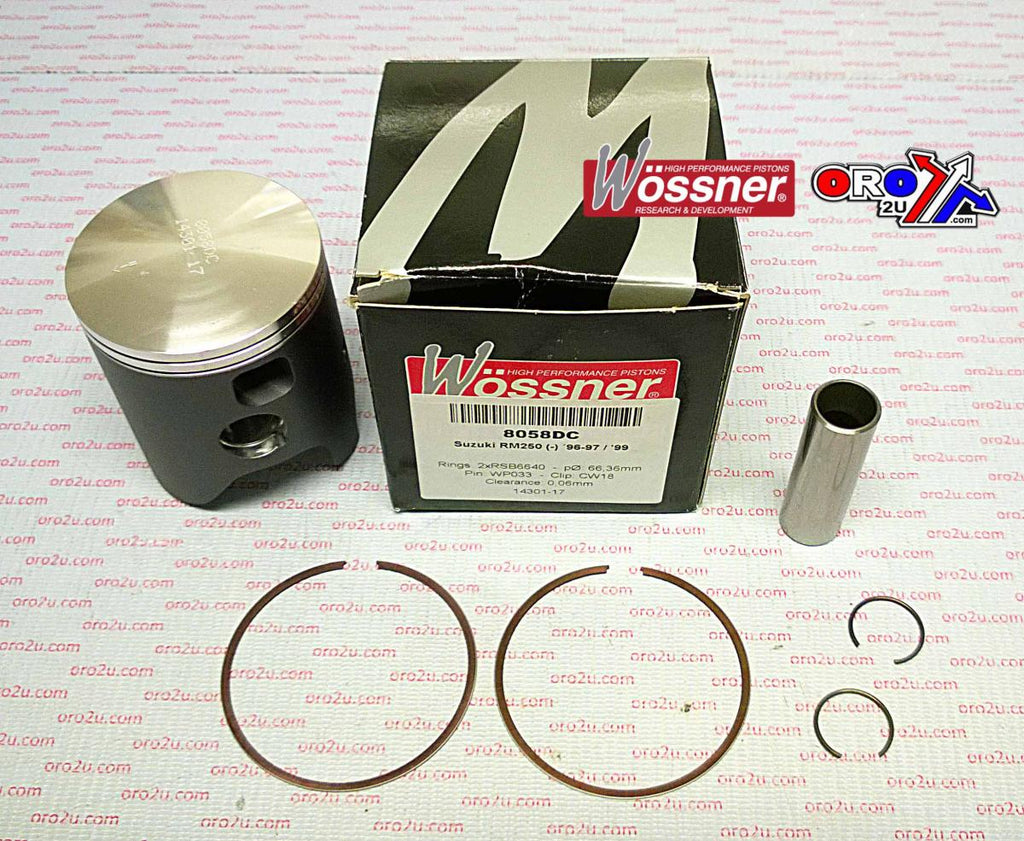

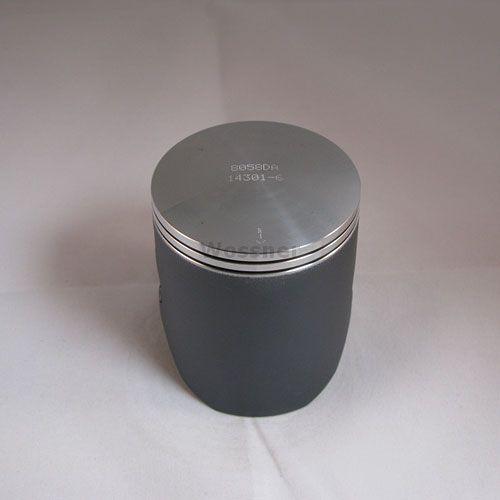

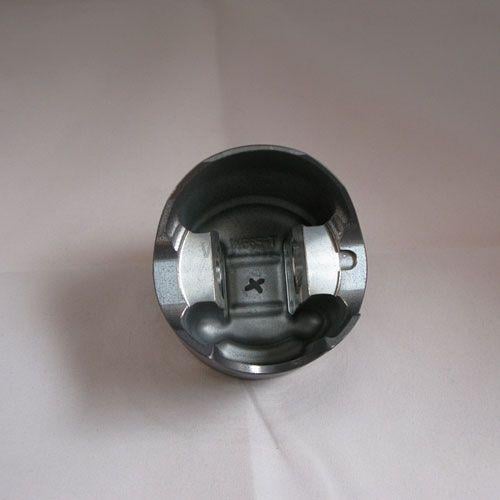

PISTON 96-97, 99 RM250 66.40, WOSSNER 8058DB SUZUKI MX

This Wossner forged piston kit is manufactured for Suzuki RM250 two-stroke engines from 1996 to 1997 and features a 68.01mm bore (+0.01mm oversize). Crafted in Germany, the piston utilises an elliptical design to manage thermal expansion, evenly distributing load and reducing the risk of collapse. It enhances heat transfer from the combustion chamber to the cylinder wall, supporting consistent engine operation in demanding conditions.

Features

• Forged construction for increased strength and resilience

• Elliptical piston shape ensures uniform bearing surface under heat expansion

• Prevents localised stress and piston collapse

• Promotes efficient heat transfer from combustion chamber

• Precision-engineered in Germany

Specifications

• Bore Size: 68.01mm (+0.01mm oversize)

• Actual Diameter: 67.95mm

• Compression Height: 38.00mm

• Stroke: 72.00mm

• Displacement: 249 cm³

• Piston Clearance: 0.06mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8023DB

• Alternate Piston PN: 8058DB

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6640 x2

• Rod: P2026

Vehicle Fitments

• 1996 Suzuki RM250

• 1997 Suzuki RM250
