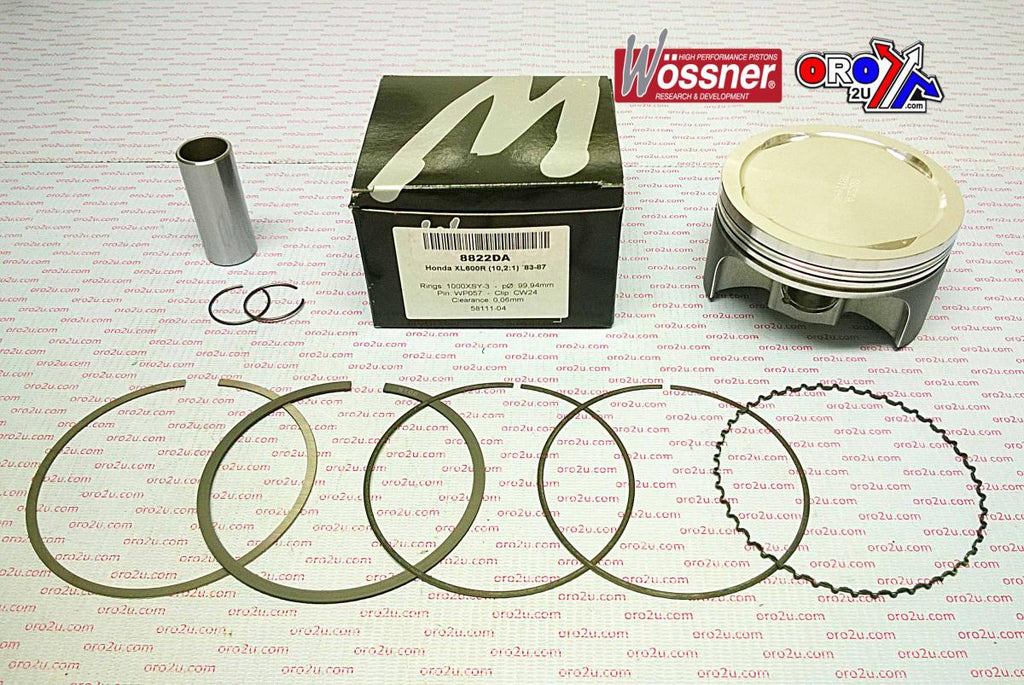

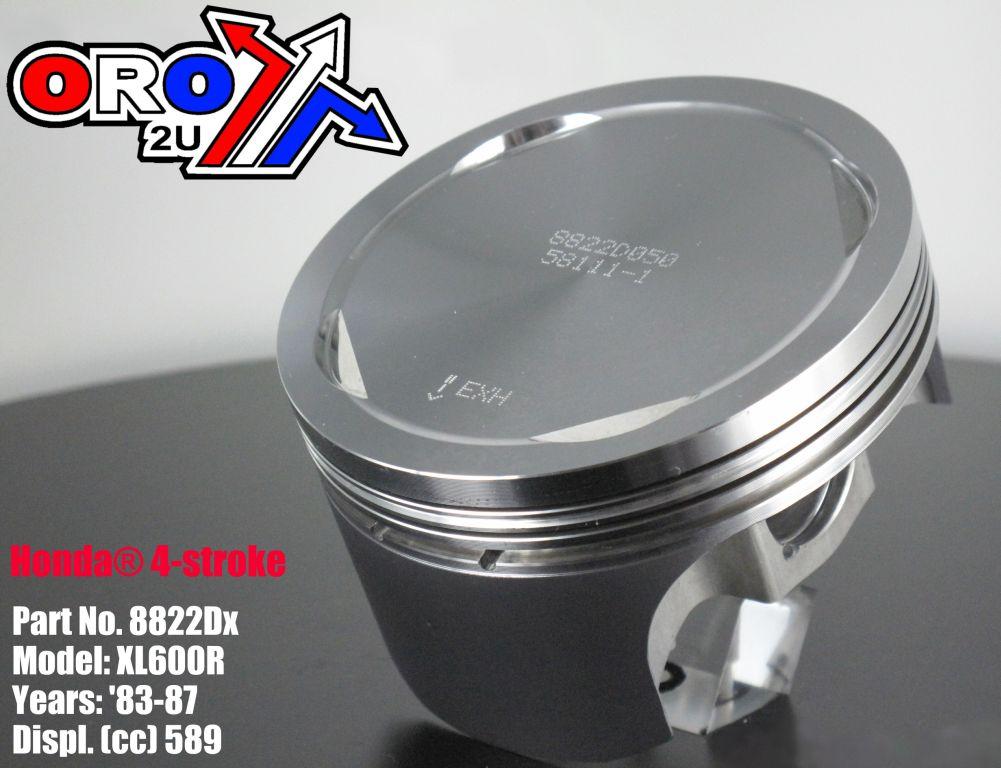

PISTON 83-87 XL600R 100.50, WOSSNER 8822D050 HONDA

This Wossner forged piston kit is a +0.50mm oversize replacement designed for Honda XL600R models from 1983 to 1987. Engineered for durability and thermal efficiency, it offers enhanced performance with a higher compression ratio compared to OEM specifications.

Features

• Forged piston construction ensures high strength and wear resistance

• Elliptical design allows uniform bearing surface during heat expansion

• Optimised for effective heat dissipation to the cylinder walls

• Helps prevent piston collapse by evenly distributing thrust loads

• Manufactured in Germany

Specifications

• Bore Size: 100.50mm

• Actual Piston Size: 100.44mm

• Display Displacement: 589 cm³

• Stroke: 75.00mm

• Piston Clearance: 0.06mm

• Wossner Compression Ratio: 10.20:1

• OEM Compression Ratio: 9.00:1

• Dome Volume: -5.90 cm³

• Compression Height: 32.80mm

• Circlip Part Number: CW24

• Pin Part Number: WP057

• Ring Set Part Number: 1005XSY

Cross-Reference OEM Part Numbers

• Part No: 56-W926_050.WO

Vehicle Fitments

• Honda XL600R (1983–1987)
