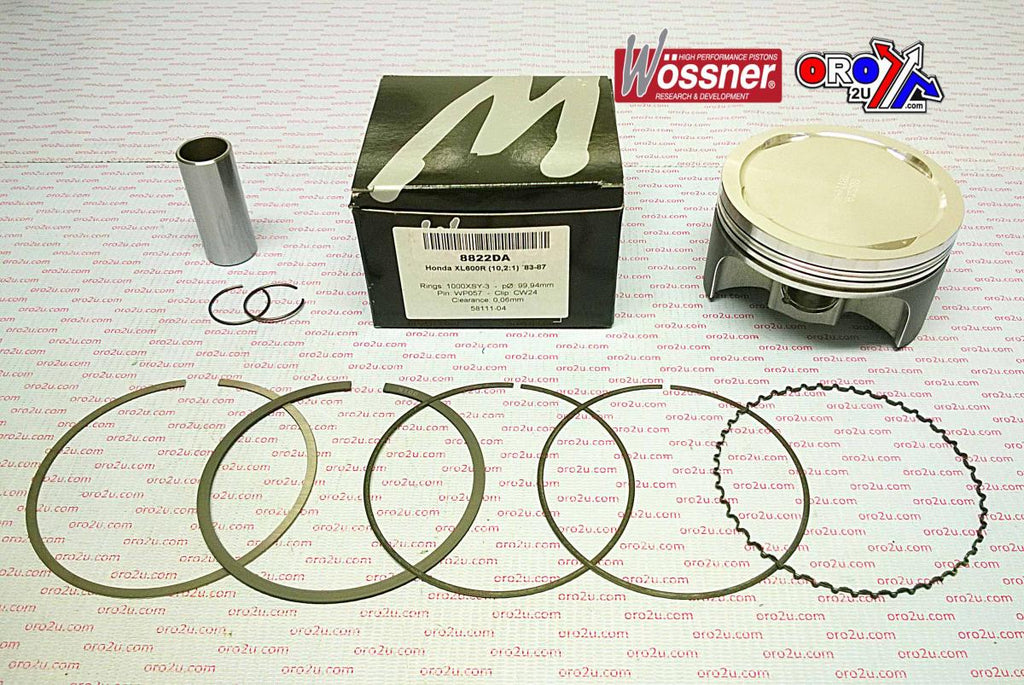

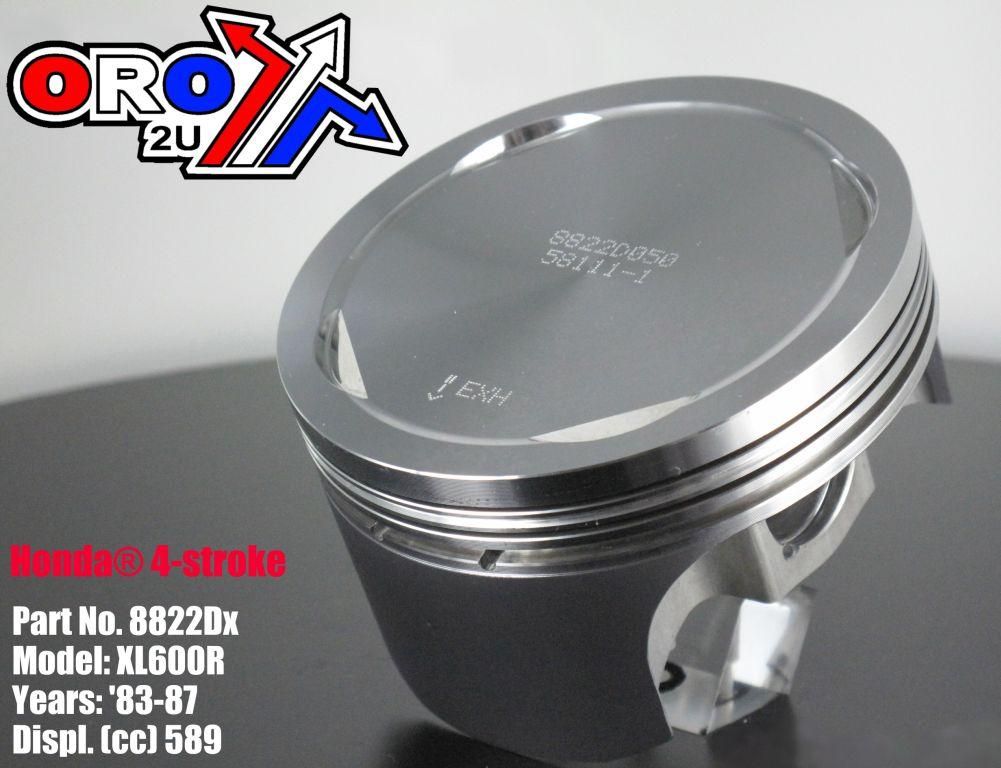

PISTON 83-87 XL600R 100.00, WOSSNER 8822DA HONDA 13110-MK2-043

This Wossner forged piston kit is a standard-size replacement specifically designed for the Honda XL600R models from 1983 to 1987. Built for enhanced strength and optimal combustion efficiency, this piston features a high compression ratio and precise machining for long-lasting performance in four-stroke engines.

Features

• Forged piston construction for superior durability under high stress

• Elliptical design promotes even bearing surface during thermal expansion

• Efficient heat dissipation from combustion chamber to cylinder walls

• Minimises localised pressure and helps prevent piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 100.00mm

• Actual Piston Size: 99.94mm

• Display Displacement: 589 cm³

• Stroke: 75.00mm

• Piston Clearance: 0.06mm

• Wossner Compression Ratio: 10.20:1

• OEM Compression Ratio: 9.00:1

• Dome Volume: -5.90 cm³

• Compression Height: 32.80mm

• Circlip Part Number: CW24

• Pin Part Number: WP057

• Ring Set Part Number: 1000XSY

Cross-Reference OEM Part Numbers

• Part No: 56-W926.A.WO

• Cross Reference: 13110-MK2-043, 4366M09700

Vehicle Fitments

• Honda XL600R (1983–1987)
