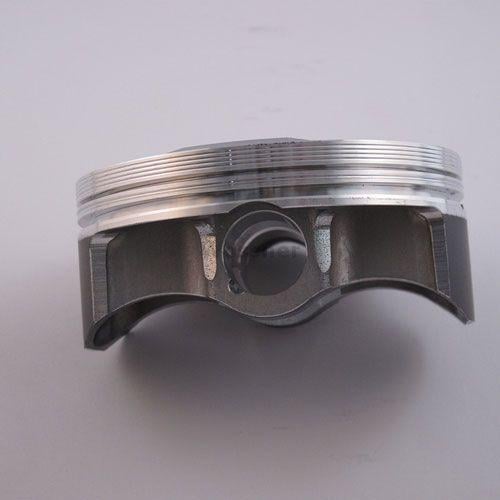

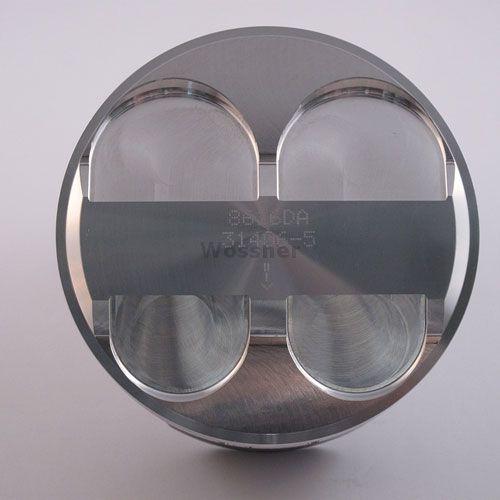

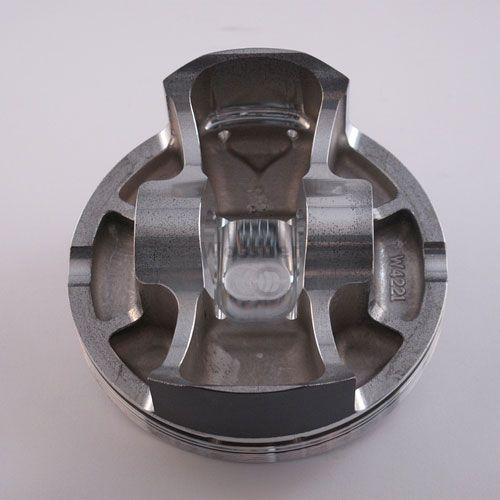

PISTON 05-07 RMZ450 95.50 HC, FORGED WOSSNER KIT 8616DA, 12111-35G01-0F0
£186.49 GBP
Taxes included.
Wossner forged piston kit designed for high compression and durability. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
Features
- High-compression forged piston for enhanced performance
- Optimized heat transfer for efficient combustion
- Elliptical design to prevent piston collapse
- Manufactured in Germany
- Two-ring piston design
Specifications
- Bore Size: 96.00mm
- Actual Bore Diameter: 95.94mm
- Displacement: 449 cm³
- Stroke: 95.46mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: +1.40 cm³
- Compression Height: 22.30mm
- Theoretical Weight: Not specified

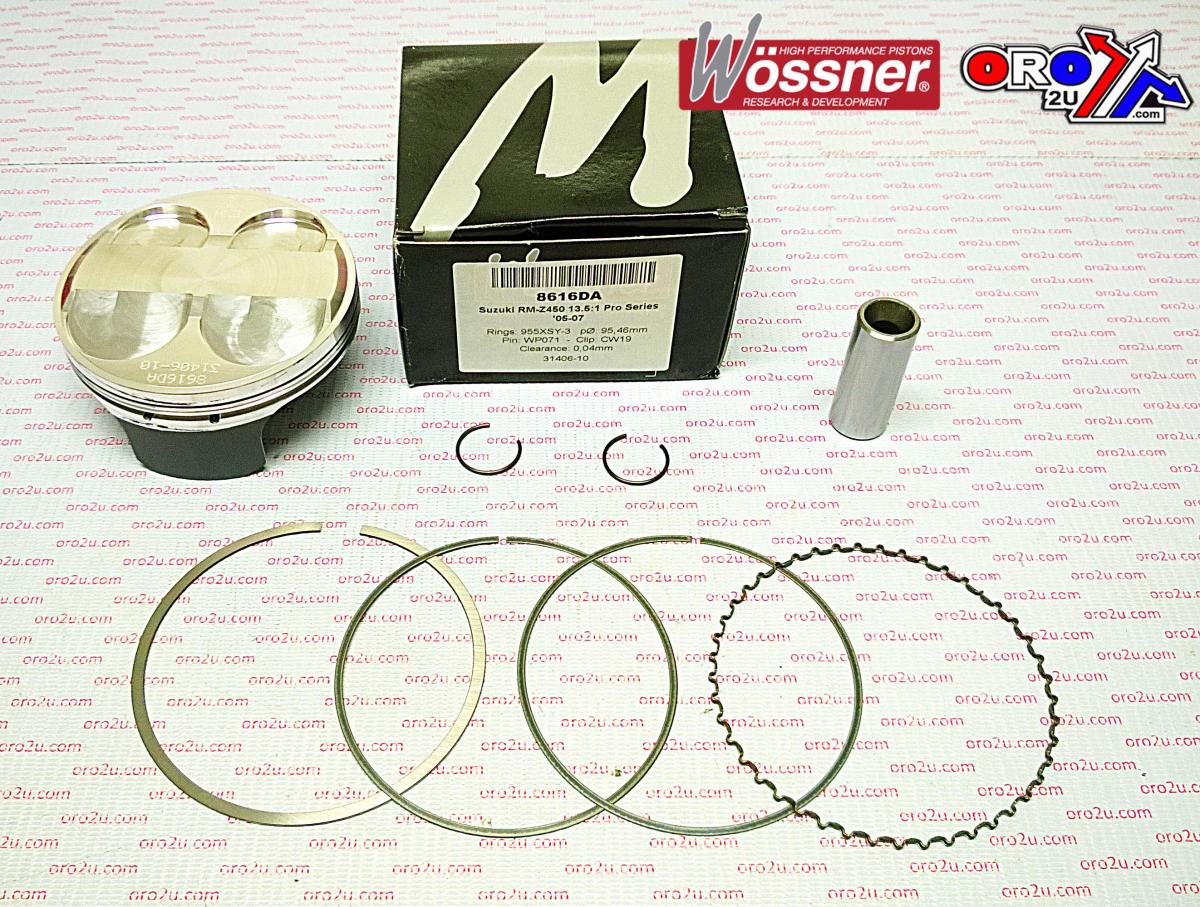

Included Components
- Lock Part Number: CW19
- Pin Part Number: WP037
- Ring Set Part Number: 955XSY
- Rod Part Number: P4012
Cross-Reference OEM Part Numbers
- 12111-35G01-0F0
Vehicle Fitments
- Suzuki RM-Z450 (2005-2007)
